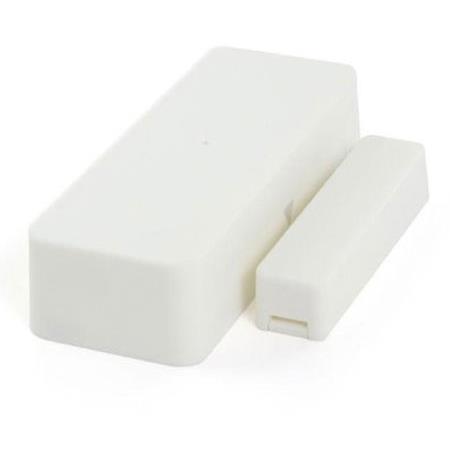

Insteon Wireless Open/Close Sensor
See all Insteon items

Insteon Wireless Open/Close Sensor

SKU: IN2843222

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Gilbert L : How would you attach this device to a new roll up garage door?ANDREW R : I recommend consulting with the manufacturer.

Reviews about this item

Review Summary

Insteon Sensor Specifications

  • Perfect for

    Doors
    Windows
    Safes
    Liquor Cabinets
    Cleaning Supply Cabinet
    Refrigerators
    Drawers

  • Range

    150' (line of sight)

  • Operational Gap

    1/2" between magnet and main case

  • Frequency

    915MHz ISM Band

  • Patents

    Protected under US and international patents issued and pending

  • Status LED

    Green. Blinks on activation

  • Sense Modes

    Jumper Installed: Open = Group 1 On, Closed = Group 1 Off; Jumper Uninstalled: Open = Group 1 On (or off), Closed = Group 2 On (or Off)

  • Aux. Sensor Input

    Senses contact closure

  • Aux. Sensor Input Wire

    >= 20 gauge wire

  • Setup Memory

    Non-volatile EEPROM

  • Insteon Addresses

    1 hard-coded out of 16,777,216 possible

  • Insteon Links

    30

  • Insteon Device Category

    0x10

  • Insteon Device Subcategory

    0x02

  • Insteon RF

    Yes

  • Insteon Product Key (IPK)

    0x000049

  • Power

    1 AA Alkaline Battery (included)

  • Battery Life

    6 months (with 2 links at 50 activations per day)

  • Certification

    EN 300 220-2, 301 489-3
    IEC 60669-2-1
    IEC 60884-1

  • Operating environment

    Indoors

  • Operating temperature range

    32 to 104 deg. F / 0 to 40 deg. C

  • Operating humidity range

    0-85% relative humidity

  • Storage temperature range

    -4 to 158 deg. F / -20 to 70 deg. C

  • Dimensions

    Main: 3.46 x 1.32 x 0.76" / 8.79 x 3.35 x 1.93cm, Magnet: 2.28 x 0.55 x 0.43" / 5.79 x 1.40 x 1.09cm

  • Weight

    3.5oz / 99.22g

  • UPC Code

    718122388912

About Insteon Sensor

Hinges-beware
Gain the peace of mind knowing that you'll be alerted when the back door sneaks ajar or the side window slides open, activate lights and always be on top of your home's security. Useful for anything else that opens, with the Insteon Hub, you know the exact state of your home's situation, at home or away, day or night.

• Automatically control lights and appliances when doors open and close
• Wire standard security sensors to Open/Close Sensor to monitor several doors and windows
• Battery-operated for easy installation
• Excellent range - up to 150' from nearest Access Point or any dual-band device
• Award-winning Insteon technology provides superior performance and reliability

Automatic Automation
Brighten those dark closets and pantries with automation by turning lights on and off when you open and close the closet or pantry door.

Instant Alert
Let Insteon be your watchdog. With an array of Insteon sensors throughout your home, you can receive instant alerts via email or notifications the moment something is amiss.

Perfect for:
• Doors
• Windows
• Safes
• Liquor Cabinets
• Cleaning Supply Cabinet
• Refrigerators
• Drawers

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Insteon Wireless Open/Close Sensor
  • Magnet
  • AA Battery
  • Mounting Tape
  • Quick-Start Guide
  • Insteon 2 Year Limited Warranty
