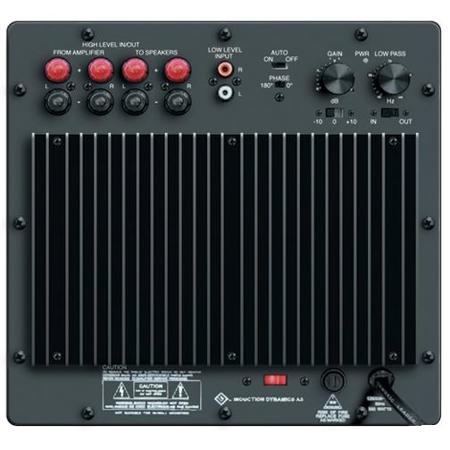

Induction Dynamics A3 Internal Class AB Subwoofer Amplifier, 640W at 2.5 Ohms

Induction Dynamics A3 Internal Class AB Subwoofer Amplifier, 640W at 2.5 Ohms

SKU: INA3AMP
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Induction Dynamics A3 Specifications

  • Color

    Black

  • Damping Factor

    95 dBA

  • Input Impedance

    300 Ohm @ 60 Hz

  • Output Type

    Euroblock

  • Power Requirements

    120/240V AC 50/60 6A Slow-Blow Fuse

  • Voltage Gain

    28 dB, 38 dB, 48 dB, Externally Switchable

  • Frequency Response ( +/- 3 dB)

    20 Hz - 20 kHz

  • Magnetically Boosted

    No

  • Driver Control

    Patented non-distorting
    frequency-selective excursion limiter

  • Crossover

    24 dB/octave low pass adjustable from 40 Hz to 100 Hz in 3 Hz steps (may be switched "out" for full-range sound)

  • Harmonic Distortion

    <= 0.05% (@ 1 kHz, 1 W)

  • Output Load

    2.5 Ohms minimum

  • Power Output (Continuous)

    640 W / 500 W / 360 W (2.5 Ohms / 4 Ohms / 8 Ohms)

  • Inputs

    L&R RCA Low and high levels

  • Level Controls

    +/- 19 dB w/fixed 1/2 dB steps

  • Auto On/Off

    Auto power down if no signal for 20 minutes (turn-on sensitivity 2mv)

About Induction Dynamics A3

The A3 subwoofer amplifier is designed to integrate with audio and video pre-amplifiers and receivers that have their own built-in low-frequency crossover circuits, typically containing optional crossover frequency settings such as the ID1 series and SW series subwoofers. If the crossover frequency is selectable, the recommended setting to use is 80 Hz with the subwoofer connected in reverse polarity. Harmonic distortion is < 0.05% (@ 1kHz 1 Watt). Output load is 10 K ohm (2.5 min). Level Controls: +/- 19dB w/fixed 1/2 dB steps.

This product has a patented non-distorting frequency-selective excursion limiter.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A3 Internal Class AB Subwoofer Amplifier
  • Power Supply
  • Induction Dynamics 10 Year Limited Warranty
