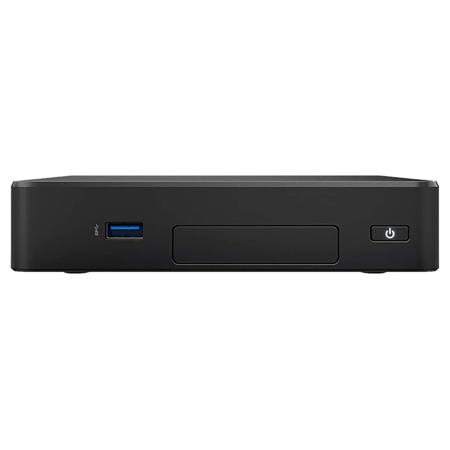

Intel NUC8CCHKR NUC 8 Rugged Mini PC Kit, Intel Celeron N3350 1.1GHz, 4GB RAM, 64GB Storage - OS Not Included

SKU: INBKC8CCHKR1

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Intel NUC 8 Specifications

Essentials

Essentials

Jump to...
  • Supported Operating Systems

    Windows 10, 64-bit

  • Board Form Factor

    3.5" SBC (146 x 101.6mm)

  • Internal Drive Form Factor

    M.2 SSD

  • Embedded Storage

    64 GB

  • DC Input Voltage Supported

    12V - 24V

  • Processor Included

    Intel Celeron Processor N3350 (2M Cache, up to 2.4 GHz)

  • No. of Cores

    2

  • No. of Threads

    2

  • Processor Base Frequency

    1.10 GHz

Supplemental Information

Jump to...
  • Embedded Options Available

    No

Memory & Storage

Jump to...
  • Included Storage

    64GB eMMC

  • Included Memory

    4GB LPDDR3 (dual-channel, soldered-down)

  • ECC Memory Supported

    No

Processor Graphics

Jump to...
  • Processor Graphics

    Intel HD Graphics 500

  • Graphics Output

    HDMI 2.0, HDMI 1.4, 4-lane eDP 1.4

  • No. of Displays Supported

    2

Expansion Options

Jump to...
  • PCI Express Revision

    Gen 2

  • M.2 Card Slot

    Wireless: 22x30 (key E) slot
    Storage: 22x80 slot (key M; NVMe/SATA)

  • No. of USB Ports

    4

  • USB Configuration

    1x front and 1x rear USB 3.0; 2x rear USB 2.0; 1x USB 3.0 and 2x USB 2.0 via internal headers

  • Serial Port via Internal Header

    Yes

  • Audio

    1/8" line out (back channel + front channel)

  • Integrated LAN

    Intel i211-AT (10/100/1000 Mbps)

  • Integrated Wireless

    Intel Dual Band Wireless-AC 3168

  • Integrated Bluetooth

    Yes

  • Additional Headers

    Front panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector

Advanced Technologies

Jump to...
  • Intel Virtualization Technology

    Yes (for Directed I/O (VT-d))

  • Intel Virtualization Technology

    Yes (for Directed I/O (VT-d))

  • TPM

    No

  • Intel HD Audio Technology

    Yes

  • Intel Platform Trust Technology

    Yes (Intel PTT)

Security & Reliability

Jump to...
  • Intel AES New Instructions

    Yes

  • Intel Trusted Execution Technology

    No

Physical

Jump to...
  • Color

    Gun metal

  • Dimensions

    6 x 4.25 x 1.25" (154 x 108 x 32mm)

  • UPC Code

    735858408400

About Intel NUC 8

Toughness That Never Clocks Out.
Intel NUC 8 Rugged is a PC kit that's small on size but not on toughness or reliability. It features a fanless, ventless design to minimize particle intrusion, so it's built to survive environments most PCs can't-from a busy factory floor to a dusty warehouse. And even without a fan, it can operate in temperatures from 0-40 Degree C to thrive in severe in-the-field conditions.

Housed in a small chassis that's slim enough to fit almost anywhere, the NUC 8 Rugged is also available as a board-only option that can be easily integrated into your own digital solutions. It's powered by an Intel Celeron processor, making it the ideal PC solution to keep edge analytics, digital signage, or surveillance cameras up and running around the clock.

Intel NUC 8 Features

  • Target Usage: Industrial, Digital Signage, Edge Data Analytics
  • Intel Celeron Processor N3350 (NUC8CCH) with Intel HD Graphics 500
  • Supports Microsoft Windows 10 Pro, Windows 10 IOT Enterprise
  • N3350 of RAM, 2 of Storage
  • Supports up to 2 displays; HDMI 2.0, HDMI 1.4, 4-lane eDP 1.4; 4 USB Ports

Key Features

  • Target Usage: Industrial, Digital Signage, Edge Data Analytics
  • Intel Celeron Processor N3350 (NUC8CCH) with Intel HD Graphics 500
  • Supports Microsoft Windows 10 Pro, Windows 10 IOT Enterprise
  • N3350 of RAM, 2 of Storage
  • Supports up to 2 displays; HDMI 2.0, HDMI 1.4, 4-lane eDP 1.4; 4 USB Ports

What's in the box:

  • NUC8CCHKR NUC 8 Rugged Mini PC
  • Rubber Feet
  • Antenna Cables
  • 19V Power Adapter
  • US Power Cord
  • User Manual
  • Intel 3 Year Limited Warranty
