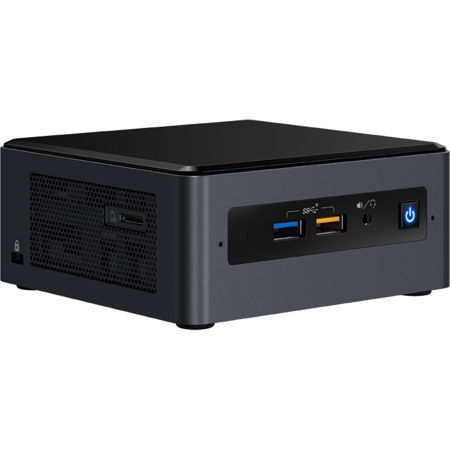

Intel NUC8i5BEH Barebone Mini PC NUC Kit
See all Intel items

Intel NUC8i5BEH Barebone Mini PC NUC Kit, Intel Core i5-8259U 2.3GHz, Wi-Fi & Bluetooth (Does Not Include RAM, Storage, OS)

SKU: INBNUC8I5BEH

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Nan D : really good

Reviews about this item

Review Summary

Intel NUC8i5BEH Specifications

Performance

Performance

Jump to...

  • CPU

    2.3GHz Intel Core i5-8259U Quad-Core

  • Maximum Boost Speed

    3.8GHz

  • L3 Cache

    6MB

  • Memory Type

    2400MHz DDR4

  • Total Installed Memory

    No

  • Memory Configuration

    No

  • Maximum Memory Capacity

    32GB

  • Memory Slots

    (2 Available)

  • Buffered Memory

    No

  • ECC Memory

    No

  • Graphics Type

    Integrated

  • GPU

    Intel Iris Plus 655

Storage and Expansion

Jump to...

  • Total Drive Bays

    1x 2.5" (Internal)

  • Storage Drive

    No

  • PCI Expansion

    No

  • Optical Drive

    No

I/O

Jump to...

  • Ports

    4x USB Type-A (USB 3.1 Gen 2)

  • USB Type-C Ports

    1x Thunderbolt 3 (Supports DisplayPort)

  • Display

    1x HDMI 2.0

  • Audio

    1x 1/8" (3.5mm) Headphone/Microphone Input/Output

  • Built-In Microphones

    2

  • Media Card Slots

    1x SDXC

Communications

Jump to...

  • Ethernet

    1x RJ45 (Gigabit)

  • Wi-Fi

    Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)

  • Bluetooth

    5.0

General

Jump to...

  • Power Supply

    28W

  • Operating System

    No

  • Dimensions

    4.6 x 4.4 x 2" (11.68 x 11.18 x 5.08cm)

Other

Jump to...

  • UPC Code

    735858384001

About Intel NUC8i5BEH

Tailored to Your Needs
Get spectacular responsiveness that goes virtually anywhere with an Intel NUC Mini PC Kit. Build the exact system you want by selecting different chassis sizes, memory options and storage configurations. Choose the slightly taller NUC8i5BEH and gain room for a 2.5" HDD and support for Intel Optane Memory to further increase performance.

A Visual Powerhouse
With a quad-core 8th generation Intel Core i5-8259U processor inside, the Intel NUC8i5BEH mini PC kit delivers the latest features - in sizes that fit any lifestyle. Enjoy great visual immersion with Intel Iris Plus graphics 655 and support for triple displays all in 4K Ultra HD. Other connectivity options include Thunderbolt 3, HDMI 2.0a and DisplayPort 1.2 via USB-C.

Software Bundle
Accomplish more at work and enjoy more at play with a bonus software bundle.

Intel NUC8i5BEH Features

  • 8th Generation Intel Core i5-8259U processor
  • Intel Iris Plus Graphics 655
  • M.2 22x42/80 slot for PCIe NVMe or SATA SSD
  • 2.5" SSD/HDD bay
  • Dual channel DDR4-2400 SODIMM support, 32GB max

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Intel NUC8i5BEH Barebone Mini PC NUC Kit
  • Intel 3 Year Limited Warranty
