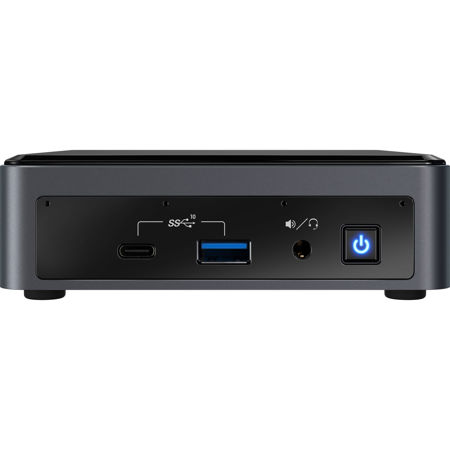

Intel NUC10i3FNK NUC 10 Performance Mini PC Kit, Intel Core i3-10110U 2.10GHz
See all Intel items

Intel NUC10i3FNK NUC 10 Performance Mini PC Kit, Intel Core i3-10110U 2.10GHz - RAM, Storage and OS Not Included

SKU: INBX10I3FNK1

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-03-30T17:11:46

Rated 5 out of 5

Small PC with up to 64GB of RAM and 6 cores CPU

Quite powerful PC in the small form factor. I bought it for my home lab server, added 32GB of RAM and 1TB M2 SSD, installed Proxmox without issues - I'm very satisfied so far.

DMYTRO S.

Intel NUC 10 Specifications

Essentials

Essentials

Jump to...

  • Supported Operating Systems

    Windows 10, 64-bit

  • Board Form Factor

    UCFF (4 x 4")

  • Socket

    Soldered-down BGA

  • Internal Drive Form Factor

    M.2 SSD

  • No. Internal Drives Supported

    1

  • Lithography

    14 nm

  • TDP

    25 W

  • DC Input Voltage Supported

    19 VDC

  • Processor Included

    Intel Core i3-10110U Processor (4M Cache, up to 4.10 GHz)

  • Intel vPro Platform Eligibility

    No

  • No. of Cores

    2

  • No. of Threads

    4

  • Processor Base Frequency

    2.10 GHz

  • Max Turbo Frequency

    4.10 GHz

Memory & Storage

Jump to...

  • Max Memory Size

    64 GB

  • Memory Types

    DDR4-2666 1.2V SO-DIMM

  • Max No. of Memory Channels

    2

  • Max Memory Bandwidth

    42.6 GB/s

  • Max No. of DIMMs

    2

  • ECC Memory Supported

    No

Processor Graphics

Jump to...

  • Processor Graphics

    Intel UHD Graphics

  • Integrated Graphics

    Yes

  • Graphics Output

    HDMI 2.0a; USB-C (DP1.2)

  • No. of Displays Supported

    3

Expansion Options

Jump to...

  • PCI Express Revision

    Gen3

  • PCI Express Configurations

    M.2 slot with PCIe X4 lanes

  • Removable Memory Card Slot

    SDXC with UHS-II support

  • M.2 Card Slot

    22x42/80 (storage)

I/O

Jump to...

  • No. of USB Ports

    7

  • USB Configuration

    2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C); 2x USB 2.0 via internal headers

  • USB Revision

    2.0, 3.1 Gen2

  • USB 2.0 Configuration

    0 + 2 (External + Internal)

  • USB 3.0 Configuration

    2B 2F + 0 (External + Internal)

  • Total No. of SATA Ports

    2

  • Max No. SATA 6.0 Gb/s Ports

    2

  • Audio

    7.1 digital (HDMI mDP); L+R mic (F) (back channel + front channel)

  • Integrated LAN

    Intel Ethernet Connection I219-V

  • Integrated Wireless

    Intel Wi-Fi 6 AX201

  • Integrated Bluetooth

    Yes

  • Consumer Infrared Rx Sensor

    Yes

  • Additional Headers

    CEC, 2x USB2.0, FRONT_PANEL

  • No. of Thunderbolt 3 Ports

    1

Advanced Technologies

Jump to...

  • Intel Optane Memory Supported

    Yes

  • Intel Virtualization Technology

    Yes (for Directed I/O (VT-d))

  • Intel Virtualization Technology

    Yes (for Directed I/O (VT-d))

  • Intel vPro Platform Eligibility

    No

  • TPM

    No

  • Intel HD Audio Technology

    Yes

  • Intel Rapid Storage Technology

    Yes

  • Intel Platform Trust Technology

    Yes (Intel PTT)

Security & Reliability

Jump to...

  • Intel AES New Instructions

    Yes

Physical

Jump to...

  • Color

    Gun metal

  • Dimensions

    4.6 x 4.4 x 1.49" (117 x 112 x 38mm)

Other

Jump to...

  • UPC Code

    735858431354

About Intel NUC 10

FEATURED REVIEWS

Small PC with up to 64GB of RAM and 6 cores CPU

By DMYTRO S.

Quite powerful PC in the small form factor. I bought it for my home lab server, added 32GB of RAM and 1TB M2 SSD, installed Proxmox without issues - I'm very satisfied so far.

Create. Consume. Repeat.
Featuring the power of 10th Generation Intel Core processors, the Intel NUC 10 Performance has the power to create content as well as consume it. Record and mix music, add animation effects to your video edits, or over-binge your favorite shows in stunning ultra high-def 4K. Whatever it is, this Intel Mini PC brings full-size PC performance at a size small enough to fit in the palm of your hand.

Available with a choice of hard drive configurations to meet your speed and storage needs, the NUC 10 Performance has the ports to connect every last peripheral and keep your data moving at top speed. And with triple display support, you can multitask across multiple screens and give your brilliance room to spread out.

Intel NUC 10 Performance:
• A Workhorse for a Range of Needs
• 2X Better Overall Performance
• 3X Faster Wireless Speeds
• 8X More Bandwidth with Thunderbolt 3

Intel NUC 10 Features

  • Target Usage: Home Office, Home Theater PC, Casual Gaming
  • Intel Core i3-10110U (NUC10i3FN) with Intel UHD Graphics, 300 MHz - 1.0 GHz
  • Supports Microsoft Windows 10 logo'd, compatible with various Linux distros
  • Supports up to 3 displays; HDMI 2.0a; USB-C (DP1.2); 6 USB Ports

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Target Usage: Home Office, Home Theater PC, Casual Gaming
  • Intel Core i3-10110U (NUC10i3FN) with Intel UHD Graphics, 300 MHz - 1.0 GHz
  • Supports Microsoft Windows 10 logo'd, compatible with various Linux distros
  • Supports up to 3 displays; HDMI 2.0a; USB-C (DP1.2); 6 USB Ports

What's in the box:

  • NUC10i3FNK NUC 10 Performance Mini PC
  • VESA Bracket
  • 4x Wall Screws
  • 2x Chassis Screws
  • 19V Power Adapter
  • US Power Cord
  • User Manual
  • Intel 3 Year Limited Warranty
