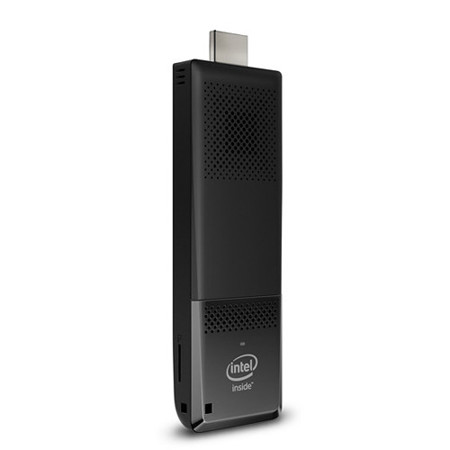

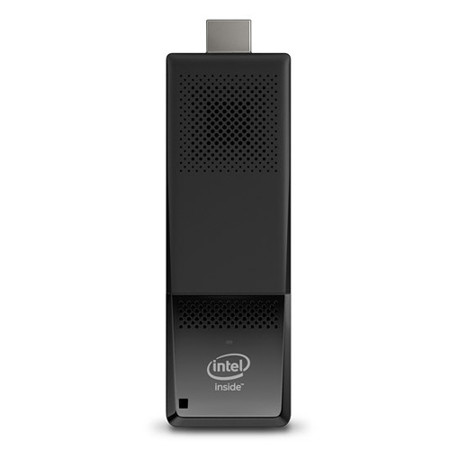

Intel CS325 4.5" Compute Stick, Intel Core M3-6Y30 900MHz, 4GB DDR3, 64GB eMMC, Windows 10 Home

SKU: INBXSTK2M3W

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Richard P : For streaming on smart tv

Reviews about this item

Review Summary

Intel CS325 Specifications

Essentials

Essentials

Jump to...
  • Socket

    Soldered-down BGA

  • Number of Internal Drives Supported

    1

  • Embedded Storage

    64GB eMMC

  • Embedded Options Available

    No

  • Lithography

    14 nm

  • DC Input Voltage Supported

    5 VDC

  • Pre-Installed Operating System

    Windows 10 Home (64-bit)

Processor

Jump to...
  • Processor

    Intel Core m3-6Y30 Dual-Core

  • Base Frequency

    900MHz

  • Max Turbo Frequency

    2.2GHz

  • Cache

    4MB Intel Smart Cache

  • Pre-Installed Memory

    4GB

  • Memory Types

    LPDDR3-1866

  • Max Number of Memory Channels

    2

  • Max Memory Bandwidth

    29.8GB/s

  • Physical Address Extensions

    32-bit

Graphics

Jump to...
  • Integrated Graphics

    Intel HD Graphics 515

  • Graphics Support

    HDMI 1.4b

  • Number of Displays Supported

    1

  • Audio

    Intel HD Audio via HDMI, supporting multi-channel digital audio

Expansion Options

Jump to...
  • Removable Memory Card Slot

    MicroSDXC v3.0 slot with UHS-I support (up to 128GB)

Input/Output

Jump to...
  • USB Revision

    3

  • Number of USB Ports

    3

  • USB 2.0 Configuration

    0 (External + Internal)

  • USB 3.0 Configuration

    1 + 2 hub (one port on device, two on power adapter) (External + Internal)

  • Integrated Wi-Fi

    Intel Wireless-AC 8260 (Dual-Band 802.11ac) + Bluetooth 4.2

  • Integrated Bluetooth

    Yes

Power Requirements

Jump to...
  • Power Requirements

    Power cable
    5V, 4A wall-mount AC-DC power adapter with two USB 3.0 ports

Environmental

Jump to...
  • Operating Temperature

    32 to 95 deg. F (0 to 35 deg. C)

  • Storage Temperature

    -40 to 140 deg. F (-40 to 60 deg. C)

Advanced Technologies

Jump to...
  • Intel Virtualization Technology (VT-x)

    Yes

  • Intel Small Business Advantage

    Yes

Intel Data Protection Technology

Jump to...
  • Intel AES New Instructions

    Yes

General

Jump to...
  • Dimensions

    4.5 x 1.5 x 0.5" (114.30 x 38.10 x 12.70mm)

  • Weight

    60.2g (2.12 oz)

  • UPC Code

    735858304504

About Intel CS325

Get ready for amazing. The Intel Compute Stick is a tiny device the size of a pack of gum that can transform any HDMI TV or display into a complete computer. But it's what's inside that's really incredible: an Intel Core M processor-with blazing fast speed that gives you performance for work, play or both-and lets you upgrade to a world of new experience. The Intel Compute Stick delivers everything you love about a desktop computer in a device that fits in the palm of your hand.

One Small Stick. Many Cool Uses

Conference
Blazing fast speed for performance to get the job done.

Healthcare
Keep data safe in healthcare environments.

Mobile Worker
Transform the way you work.

What's in the box:

  • Intel CS325 4.5 " Compute Stick
  • HDMI Extension Cable
  • Power Cable and Adapter
  • Intel 3 Year Limited Warranty
