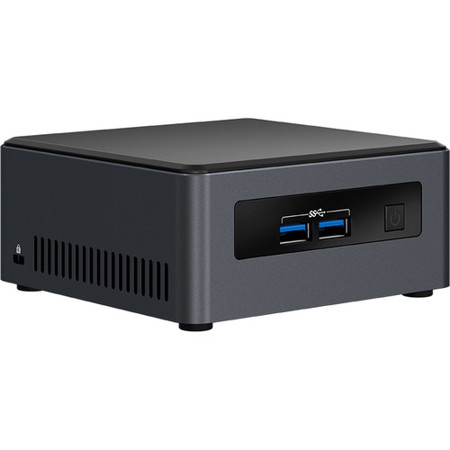

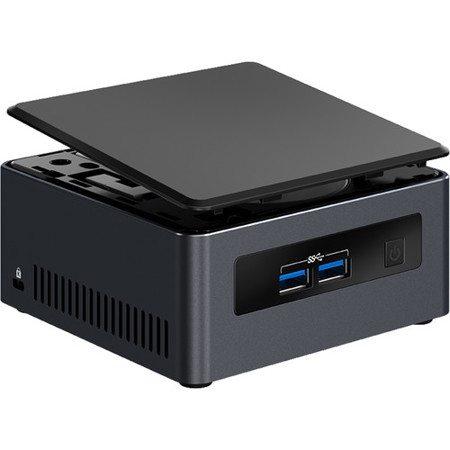

Intel NUC7i3DNHNC NUC 7 Business Mini PC, Intel Core i3-7100U 2.40GHz, 4GB RAM, 1TB HDD, Windows 10 Pro

SKU: INC7I3DNHNC1

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Intel NUC 7 Specifications

Essentials

Essentials

Jump to...
  • Operating Systems

    Windows 10 Pro, 64-bit

  • Board Form Factor

    UCFF (4" x 4")

  • Socket

    Soldered-down BGA

  • Internal Drive Form Factor

    M.2 and 2.5" Drive

  • Number of Internal Drives Supported

    2

  • TDP

    15W

  • DC Input Voltage Supported

    12-24 VDC

  • Processor Included

    Intel Core i3-7100U Processor (3M Cache, 2.40 GHz)

  • Intel vPro Platform Eligibility

    No

  • Number of Cores

    2

  • Number of Threads

    4

  • Processor Base Frequency

    2.40 GHz

Memory & Storage

Jump to...
  • Storage

    1TB HDD

  • Memory

    1x 4GB DDR4

  • Max Memory Size

    32 GB (dependent on memory type)

  • Memory Types

    DDR4-2400 1.2V SO-DIMM

  • Max Number of Memory Channels

    2

  • Max Number of DIMMs

    2

  • ECC Memory Supported

    No

Processor Graphics

Jump to...
  • Processor Graphics

    Intel HD Graphics 620

  • Integrated Graphics

    Yes

  • Graphics Output

    Dual HDMI 2.0a, 4-lane eDP 1.4

  • Number of Displays Supported

    2

Expansion Options

Jump to...
  • PCI Express Revision

    Gen3

  • PCI Express Configurations

    PCIe x4: M.2 22x80 (key M) slot PCIe x1: M.2 22x30 (key E) slot

  • M.2 Card Slot

    22x30 (key E) slot (wireless)
    22x80 (key M) slot (storage)

  • Number of USB Ports

    4

  • USB Configuration

    2x front and 2x rear USB 3.0; 1x USB 3.0 and 2x USB 2.0 via internal headers

  • USB Revision

    2.0, 3.0

  • USB 2.0 Configuration

    0 + 2 (External + Internal)

  • USB 3.0 Configuration

    2B 2F +1 (External + Internal)

  • Total Number of SATA Ports

    2

  • Max Number of SATA 6.0 Gb/s Ports

    2

  • RAID Configuration

    2.5" HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1)

  • Serial Port via Internal Header

    Yes

  • Integrated LAN

    Intel i219-LM 10/100/1000 Mbps Ethernet

  • Integrated Wireless

    Intel Wireless-AC 8265 + Bluetooth 4.2

  • Integrated Bluetooth

    Yes

  • Additional Headers

    Front panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); HDMI_CEC; Internal 2x2 power connector

Advanced Technologies

Jump to...
  • Intel Optane Memory Supported

    Yes

  • Intel Virtualization Technology

    Yes (for Directed I/O (VT-d)

  • Intel Virtualization Technology

    Yes (for Directed I/O (VT-d)

  • Intel vPro Platform Eligibility

    No

  • Intel ME Firmware Version

    v11.7

  • TPM

    No

  • Intel Rapid Storage Technology

    Yes

  • Intel Platform Trust Technology

    Yes (Intel PTT)

Security & Reliability

Jump to...
  • Intel AES New Instructions

    Yes

Physical

Jump to...
  • Color

    Gun Metal

  • Dimensions

    4.53 x 4.37 x 2.05" (115 x 111 x 52 mm)

  • UPC Code

    735858382434

About Intel NUC 7

Intel NUC is a small form factor PC with a tiny footprint. Short for Next Unit of Computing, Intel NUC (say it like "luck" or "truck") puts full-sized PC power in the palm of your hand.

The Intel NUC 7 Business Mini PC is designed to support small and medium businesses with a need for small and powerful PCs. Built with a 7th Generation Intel Core i3 processor, 1TB HDD, 4GB DDR4-2133 memory, and Windows 10 Pro, this PC gives you the power your business needs in a PC that fits in the palm of your hand. Intel HD graphics can power dual 4K monitors for great digital signage, kiosk, or PC experiences.

Intel NUC Features and Benefits
Intel NUC is the mini PC platform that never asks you to sacrifice ports, power, or flexibility.

Everything a PC Can Do, Intel NUC Can Do Smaller
Intel NUC mini PCs squeeze a powerful processor, fast memory, and massive storage comparable to the latest full-size desktop PCs into the smallest form factors we can engineer.

High Performance, Powered by the Newest Intel Technology
Intel NUCs feature the latest Intel Core processors, available with integrated or discrete graphics, in either solid state drive (SSD) or hard disk drive (HDD) configurations, and are all engineered to work together in an incredibly small space.

Intel NUC: Nothing to Sacrifice But Space
Intel NUC mini computers have more connectivity than a lot of current laptops. Multiple front and back USB ports, HDMI, Thunderbolt 3 technology, a microSD slot, and Gigabit Ethernet give you total flexibility.

Plug in Intel NUC and Get to Work
Intel NUC mini PCs are ready to run right out of the box and super easy to operate. Connect your monitor, keyboard, and mouse - power up and you're done.

Mini PC Form Factor, Mini Energy Footprint
We optimize every Intel NUC mini PC for small spaces and low power. Choose an Energy Star certified Intel NUC to ensure efficient power consumption.

Quality and Reliability by Intel
Intel NUC is the only mini PC engineered, built, and backed by Intel. You get the quality, performance, and long-term reliability you expect from Intel, backed by a three-year Intel warranty and 24/7 support.

Intel NUC for Business
There ½s a big business application for every little space-saving, easy-to-use Intel NUC. From desktop workstations to out-of-sight productivity for conference rooms, Intel NUC mini PCs are mighty players in every business app.

Professionals
Whether you need maximum power for rendering graphics and video or a reliable workhorse for office apps, there ½s an Intel NUC for every professional need.

Industry
Intel NUC Rugged is ready for work in tough environments and IoT applications. Drop an Intel NUC Rugged anywhere you need computing power and intelligence or embed Intel NUC boards directly into your custom applications.

Education and Government
Minimal footprint, simple setup, and easy management make Intel NUCs ideal for smart classrooms, computer labs, and large-scale cubicle deployments.

Intel NUC 7 Features

  • Target Usage: Digital Signage, SMB / Corporate, Embedded
  • 7th Generation Intel Core i3-7100U with Intel HD Graphics 620, 300 MHz - 1.0 GHz Unlocked and VR-capable
  • OS Microsoft Windows 10 Pro
  • 4GB RAM of RAM, 1 TB HDD of Storage
  • Supports up to 2 displays; Dual HDMI 2.0a, 4-lane eDP 1.4; 4 USB Ports

Key Features

  • Target Usage: Digital Signage, SMB / Corporate, Embedded
  • OS Microsoft Windows 10 Pro
  • 4GB RAM of RAM, 1 TB HDD of Storage
  • Supports up to 2 displays; Dual HDMI 2.0a, 4-lane eDP 1.4; 4 USB Ports

What's in the box:

  • NUC7i3DNHNC NUC 7 Business Mini PC
  • VESA Bracket
  • 4x Wall Screws
  • 2x Chassis Screws
  • 19V Power Adapter
  • US Power Cord
  • Intel 3 Year Limited Warranty
