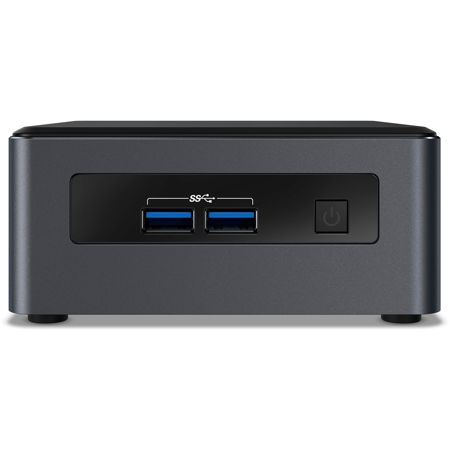

Intel NUC7i5DNHE NUC 7 Business Mini PC Kit, Intel Core i5-7300U 2.60GHz, 2.5" Drive Expansion - RAM, Storage and OS Not Included

SKU: INC7I5DNH1E

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Intel NUC 7 Specifications

About Intel NUC 7

Built with 7th Generation Intel Core i5 processors to deliver the performance and innovation for the small space and embedded solutions that your customers want.

Built for Business, Powered for success
Your clients want the features and performance to tackle demanding tasks, display eye-catching visuals, and keep data safe and the Intel NUC Kits NUC7i5DNHE built with 7th Generation Intel Core i5 vPro processors deliver the performance and innovation for small space and embedded solutions that your clients want. Whether you're creating a digital kiosk, deploying intelligent vending, or refreshing enterprise PCs, the Intel NUC7i5DNHE can get the job done easily. With Intel Wireless 8265-AC and the option to run Windows 10 or Linux or another OS, the NUC7i5DNHE delivers the flexibility to build the exact solution your clients want.

The slightly taller Intel NUC7i5DNHE is Intel Optane memory ready. By pairing Intel Optane memory with high capacity HDD storage media, performance increases 14 times faster than just a hard disk drive alone -exactly what customers want for digital kiosks that are streaming content or enterprise solutions where clients are connecting to cloud-based apps. Intel NUC7i5DNHE has room for up to a 2 TB 2.5" HDD, so clients can store data or sensitive files locally. This kit also has an M.2 slot available for a lightning fast SSD. In addition, there's also an internal expansion area on the back of the chassis to encourage your innovation. Create a system with a DB9 connection for serial ports or build out internal expandability for 10/100 GbE-the possibilities are only limited by your imagination.

Keeping data, passwords, and security keys safe
With Intel vPro technology you can help your customers get ahead of security threats. The built-in hardware-enhanced security means you can keep client data and credentials secure, and remote manageability is perfect for installations such as unattended digital kiosks and intelligent vending. In addition, Intel Remote Secure Erase (Intel RSE), lets you wipe an Intel SSD on a lost or stolen laptop. Or, if you are refreshing enterprise clients, Remote Secure Erase can wipe all data and encryption keys, making any data that was on the drive, virtually impossible to retrieve.

Also built into the hardware is Intel Trusted Platform Module (Intel TPM) which addresses the growing concern over boot process integrity and offers better data protection.

New features let you customize any way you want
Intel NUC7i5DNHE has some new features including a USB 3.0 on the internal header, in addition to 4 USB 3.0 ports on the chassis. For the first time, the commercial kits also come with two full-sized HDMI 2.0a ports to power brilliant 4K displays at 60 Hz. Suddenly your clients' digital kiosks and intelligent vending machines have images that really pop and draw people in. The power button is now located on the front panel for easy on/off no matter where you locate the Intel NUC.

Intel NUC 7 Features

  • Target Usage: Digital Signage, SMB / Corporate, Embedded
  • 7th Generation Intel Core i5-7300U with Intel HD Graphics 620, 300 MHz - 1.1 GHz
  • Supports Microsoft Windows 10 (logo'd), Windows 10 IOT Enterprise, Windows Server 2016
  • Supports 32GB maximum of RAM; Intel Optane Memory ready; supports M.2 22x80 key M slot for SATA3 / PCIe X4 Gen 3 NVMe/AHCI SSD
  • Supports up to 2 displays; Dual HDMI 2.0a, 4-lane eDP 1.4; 4 USB Ports

Key Features

  • Target Usage: Digital Signage, SMB / Corporate, Embedded
  • 7th Generation Intel Core i5-7300U with Intel HD Graphics 620, 300 MHz - 1.1 GHz
  • Supports Microsoft Windows 10 (logo'd), Windows 10 IOT Enterprise, Windows Server 2016
  • Supports up to 2 displays; Dual HDMI 2.0a, 4-lane eDP 1.4; 4 USB Ports

What's in the box:

  • NUC7i5DNHE NUC 7 Business Mini PC
  • VESA Bracket
  • 4x Wall Screws
  • 2x Chassis Screws
  • 19V Power Adapter
  • US Power Cord
  • User Manual
  • Intel 3 Year Limited Warranty
