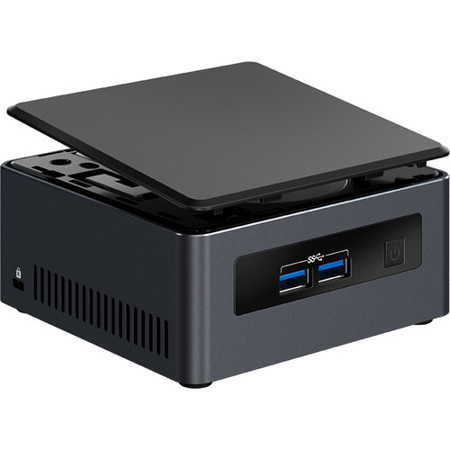

Intel NUC7i7DNHE NUC 7 Business Mini PC Kit, Intel Core i7-8650U 1.90GHz, 2.5" Drive Expansion - RAM, Storage and OS Not Included

SKU: INC7I7DNH1E

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Intel NUC 7 Specifications

Essentials

Essentials

Jump to...
  • Supported Operating Systems

    Windows 10, 64-bit, Windows 10 IoT Enterprise, Windows Server 2016

  • Board Form Factor

    UCFF (4 x 4")

  • Socket

    Soldered-down BGA

  • Internal Drive Form Factor

    M.2 and 2.5" Drive

  • No. Internal Drives Supported

    2

  • TDP

    15 W

  • DC Input Voltage Supported

    12-24 VDC

  • Processor Included

    Intel Core i7-8650U Processor (8M Cache, up to 4.20 GHz)

  • Intel vPro Platform Eligibility

    Yes

  • No. of Cores

    4

  • No. of Threads

    8

  • Processor Base Frequency

    1.90 GHz

  • Max Turbo Frequency

    4.20 GHz

Memory & Storage

Jump to...
  • Max Memory Size

    32 GB

  • Memory Types

    DDR4-2400 1.2V SO-DIMM

  • Max No. of Memory Channels

    2

  • Max No. of DIMMs

    2

  • ECC Memory Supported

    No

Processor Graphics

Jump to...
  • Processor Graphics

    Intel UHD Graphics 620

  • Integrated Graphics

    Yes

  • Graphics Output

    Dual HDMI 2.0a, 4-lane eDP 1.4

  • No. of Displays Supported

    2

Expansion Options

Jump to...
  • PCI Express Revision

    Gen3

  • PCI Express Configurations

    PCIe x4: M.2 22x80 (key M) slot PCIe x1: M.2 22x30 (key E) slot

  • M.2 Card Slot

    Wireless: 22x30 (key E) slot
    Storage: 22x80 (key M)

  • No. of USB Ports

    4

  • USB Configuration

    2x front and 2x rear USB 3.0; 1x USB 3.0 and 2x USB 2.0 via internal headers

  • USB Revision

    2.0, 3.0

  • USB 2.0 Configuration

    0 + 2 (External + Internal)

  • USB 3.0 Configuration

    2B 2F + 0 (External + Internal)

  • Total No. of SATA Ports

    2

  • Max No. SATA 6.0 Gb/s Ports

    2

  • RAID Configuration

    2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)

  • Serial Port via Internal Header

    Yes

  • Integrated LAN

    Intel i219-LM 10/100/1000 Mbps Ethernet

  • Integrated Wireless

    Intel Wireless-AC 8265 vPro (IEEE 802.11ac 2x2)

  • Integrated Bluetooth

    Yes

  • Additional Headers

    Front Panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); HDMI_CEC; Internal 2x2 power connector

Advanced Technologies

Jump to...
  • Intel Optane Memory Supported

    Yes

  • Intel Virtualization Technology

    Yes (for Directed I/O (VT-d)

  • Intel Virtualization Technology

    Yes (for Directed I/O (VT-d)

  • Intel vPro Platform Eligibility

    Yes

  • Intel ME Firmware Version

    v11.8

  • TPM

    Yes

  • TPM Version

    2

  • Intel Rapid Storage Technology

    Yes

  • Intel Platform Trust Technology

    No (Intel PTT)

Security & Reliability

Jump to...
  • Intel AES New Instructions

    Yes

  • Intel Trusted Execution Technology

    Yes

Physical

Jump to...
  • Color

    Gun metal

  • Dimensions

    4.5 x 4.3 x 2" (115 x 111 x 52mm)

  • UPC Code

    735858367578

About Intel NUC 7

Built with 7th Generation Intel Core i7 processors to deliver the performance and innovation for the small space and embedded solutions that your customers want.

Equipped with an 8th Generation quad-core Intel Core i7 vPro processor complete with Intel Turbo Boost Technology 2.0, the Intel NUC7i7DNHE kits have the power and responsiveness your clients need for digital signage, customer analytics for targeted marketing campaigns, interactive digital kiosks, or powerful surveillance systems. With up to 69% better performance than 7th Generation processors, the kits have the performance and innovation for small space and embedded solutions.

The Intel NUC7i7DNHE is Intel Optane memory ready and has room for up to a 2 TB 2.5" HDD. By pairing Intel Optane memory with high capacity HDD storage media, performance for large media files increases 4x faster than just a hard disk drive alone. The result is higher performance and responsiveness without compromising storage capacity, perfect for data-intensive analytics programs or surveillance systems.

It has Intel Wireless 8265 and the option to run Windows 10 or Linux or another OS, and has an M.2 slot available for a lightning fast SSD. It can take up to 32 GB of dual-channel DDR4.

Keeping data, passwords, and security keys safe
With the Intel vPro platform you can help your customers get ahead of security threats. The built-in hardware-enhanced security means you can keep client data and credentials secure, and remote manageability is perfect for installations such as unattended digital kiosks and intelligent vending. Also built into the hardware is Intel Trusted Platform Module (TPM) which addresses the growing concern over boot process integrity and offers better data protection. There is a discrete TPM module available, enabling sales in all countries, excluding China.

Visuals that amaze for solutions that wow clients and customers
Intel NUC7i7DNHE comes with USB 3.0 on the internal header in addition to 4 USB 3.0 ports on the chassis. The NUC kit also comes with two full-sized HDMI 2.0a ports to power brilliant 4K displays. This gives your clients' digital kiosks and intelligent vending machines images that really pop and amaze. The power button is located on the front panel for easy on/off no matter where you situate the Intel NUC.

Intel NUC 7 Features

  • Target Usage: Digital Signage, SMB / Corporate, Embedded
  • 8th Generation Intel Core i7-8650U with Intel UHD Graphics 620, 300 MHz - 1.15 GHz
  • Supports Microsoft Windows 10 Pro (logo'd), supports Windows 10 IOT Enterprise, Windows Server 2016
  • Supports 32GB maximum of RAM; Intel Optane Memory ready; supports M.2 22x80 key M slot for PCIe X4 Gen3 NVMe/AHCI or SATA3 SSD
  • Supports up to 2 displays; Dual HDMI 2.0a, 4-lane eDP 1.4; 4 USB Ports

Key Features

  • Target Usage: Digital Signage, SMB / Corporate, Embedded
  • 8th Generation Intel Core i7-8650U with Intel UHD Graphics 620, 300 MHz - 1.15 GHz
  • Supports up to 2 displays; Dual HDMI 2.0a, 4-lane eDP 1.4; 4 USB Ports

What's in the box:

  • NUC7i7DNHE NUC 7 Business Mini PC
  • VESA Bracket
  • 4x Wall Screws
  • 2x Chassis Screws
  • 19V Power Adapter
  • US Power Cord
  • User Manual
  • Intel 3 Year Limited Warranty
