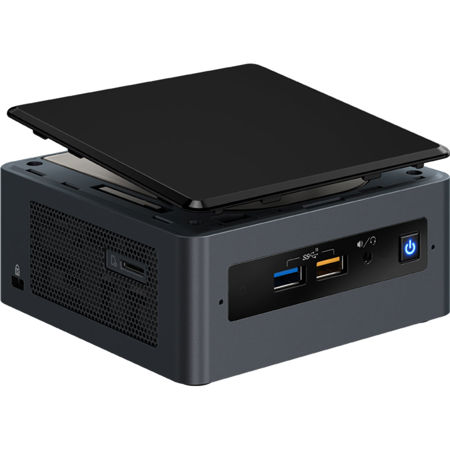

Intel NUC8i3BEH NUC 8 Mainstream Mini PC Kit, Intel Core i3-8109U 3.0GHz, 2.5" Drive Expansion - RAM, Storage and OS Not Included

SKU: INC8I3BEH1

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Intel NUC 8 Specifications

Essentials

Essentials

Jump to...
  • Supported Operating Systems

    Windows 10, 64-bit

  • Board Form Factor

    UCFF (4 x 4")

  • Socket

    Soldered-down BGA

  • Internal Drive Form Factor

    M.2 and 2.5" Drive

  • No. Internal Drives Supported

    2

  • Lithography

    14 nm

  • TDP

    28 W

  • DC Input Voltage Supported

    12-19 VDC

  • Processor Included

    Intel Core i3-8109U Processor (4M Cache, up to 3.60 GHz)

  • Intel vPro Platform Eligibility

    No

  • No. of Cores

    2

  • No. of Threads

    4

  • Processor Base Frequency

    3.00 GHz

  • Max Turbo Frequency

    3.60 GHz

Memory & Storage

Jump to...
  • Max Memory Size

    32 GB

  • Memory Types

    DDR4-2400 1.2V SO-DIMM

  • Max No. of Memory Channels

    2

  • Max Memory Bandwidth

    38.4 GB/s

  • Max No. of DIMMs

    2

  • ECC Memory Supported

    No

Processor Graphics

Jump to...
  • Processor Graphics

    Intel Iris Plus Graphics 655

  • Integrated Graphics

    Yes

  • Graphics Output

    HDMI 2.0a; USB-C (DP1.2)

  • No. of Displays Supported

    3

Expansion Options

Jump to...
  • PCI Express Revision

    Gen3

  • PCI Express Configurations

    M.2 slot with PCIe X4 lanes

  • Removable Memory Card Slot

    microSDXC with UHS-I support

  • M.2 Card Slot

    22x42/80 (storage)

  • No. of USB Ports

    6

  • USB Configuration

    2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers

  • USB Revision

    2.0, 3.1 Gen2

  • USB 2.0 Configuration

    0 + 2 (External + Internal)

  • USB 3.0 Configuration

    2B 2F + 0 (External + Internal)

  • Total No. of SATA Ports

    2

  • Max No. SATA 6.0 Gb/s Ports

    2

  • RAID Configuration

    2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)

  • Audio

    7.1 digital (HDMI mDP); L+R mic (F) (back channel + front channel)

  • Integrated LAN

    Intel Ethernet Connection I219-V

  • Integrated Wireless

    Intel Wireless-AC 9560 + Bluetooth 5.0

  • Integrated Bluetooth

    Yes

  • Consumer Infrared Rx Sensor

    Yes

  • Additional Headers

    CEC, 2x USB2.0, FRONT_PANEL

  • No. of Thunderbolt 3 Ports

    1

Advanced Technologies

Jump to...
  • Intel Optane Memory Supported

    Yes

  • Intel Virtualization Technology

    Yes (for Directed I/O (VT-d))

  • Intel Virtualization Technology

    Yes (for Directed I/O (VT-d))

  • Intel vPro Platform Eligibility

    No

  • TPM

    No

  • Intel HD Audio Technology

    Yes

  • Intel Rapid Storage Technology

    Yes

  • Intel Platform Trust Technology

    Yes (Intel PTT)

Security & Reliability

Jump to...
  • Intel AES New Instructions

    Yes

Physical

Jump to...
  • Color

    Gun metal

  • Dimensions

    4.6 x 4.4 x 2" (117 x 112 x 51mm)

  • UPC Code

    735858384209

About Intel NUC 8

The shape that fits the future.
Get ready for spectacularly responsive performance from the Intel NUC Mini PC kits with 8th Generation Intel Core i3 processors. The latest generation of Intel NUC kits let you or your customers build the exact system they want. From choosing chassis size to memory options to storage configurations, the benefit of building an Intel NUC kit is the ability to completely customize the kit for your specific usage. Whether working on presentations, word processing, or streaming media, the Intel NUC8i3BEH Mini PC kits deliver the features people want-in a size that fits easily into any lifestyle and any room in the house.

The First Intel NUC Mini PC Kits with a Dual-Core 8th Generation Intel Core i3 Processor
The Intel NUC8i3BEH Mini PC kit with a true dual-core 8th generation Intel Core i3 processor delivers a big jump in performance compared to the previous generation Intel NUC7i3BNH kits. Whether it's built for a new home PC or a system with 4K UHD graphics for picture perfect entertainment, the Intel NUC8i3BEH Mini PC kit gives great visual immersion with Iris Plus Graphics 655 and the unprecedented performance of Intel Core processors.

The slightly taller Intel NUC8i3BEH also has room for a 2.5" HDD and is Intel Optane memory ready. By coupling a 2.5" HDD and Intel Optane memory, performance improves dramatically with up to 1.4x faster media loading.

Work Like a Boss with Thunderbolt 3, USB 3.1, and 4K Ultra HD
The Intel NUC Mini PC kits have chassis that are connectivity powerhouses. Both come with Thunderbolt 3 which supports up to 40 GBps of data transfer, four USB 3.1 ports, and two additional USB ports via 1x4 internal headers. There's also room for an M.2 SSD. The Intel NUC Mini PC kits support triple displays all in 4K Ultra HD-with an HDMI 2.0a port and DisplayPort 1.2 via USB-C-so images or work can show across three screens without losing fidelity.

Think You Know What Small Can Do? Think Again.
In a footprint that's almost zero-especially when compared with a tower-the Intel NUC Mini PC kits can be custom built to have the performance and features of a desktop PC in a device that fits in the palm of your hand. The small size means the Intel NUC can be positioned almost anywhere-from behind a display to tucked discretely in an entertainment center. And with improved cooling, fan noise is minimal-which means a quieter experience no matter where the Intel NUC is positioned.

Intel NUC 8 Features

  • Target Usage: Home Office, Home Theater PC, Casual Gaming
  • 8th Generation Intel Core i3-8109U with Intel Iris Plus Graphics 655, 300 MHz - 1.05 GHz
  • Supports Microsoft Windows 10 logo'd, compatible with various Linux distros
  • Supports 32GB maximum of RAM; Intel Optane Memory supported; supports M.2 22x42/80 key M slot for PCIe x4 Gen3 NVMe / AHCI or SATA3 SSD
  • Supports up to 3 displays; HDMI 2.0a; USB-C (DP1.2); 6 USB Ports

Key Features

  • Target Usage: Home Office, Home Theater PC, Casual Gaming
  • 8th Generation Intel Core i3-8109U with Intel Iris Plus Graphics 655, 300 MHz - 1.05 GHz
  • Supports Microsoft Windows 10 logo'd, compatible with various Linux distros
  • Supports up to 3 displays; HDMI 2.0a; USB-C (DP1.2); 6 USB Ports

What's in the box:

  • NUC8i3BEH NUC 8 Mainstream Mini PC
  • VESA Bracket
  • 4x Wall Screws
  • 2x Chassis Screws
  • 19V Power Adapter
  • US Power Cord
  • User Manual
  • Intel 3 Year Limited Warranty
