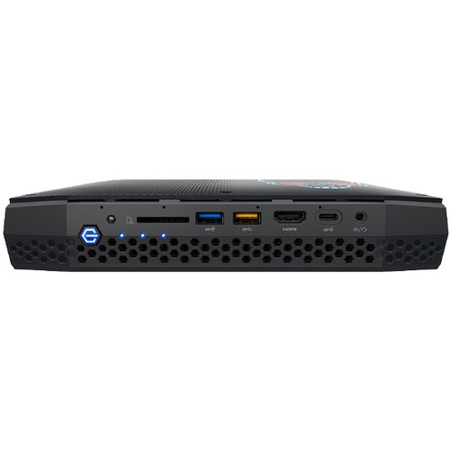

Intel NUC8i7HNKQC NUC 8 Business Mini PC, Intel Core i7-8705G 3.10GHz , 16GB RAM, 512GB SSD, Radeon RX Vega M GL 4GB, Windows 10 Pro

SKU: INC8I7HNKQC1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Intel NUC 8 Specifications

Essentials

Essentials

Jump to...
  • Operating Systems

    Windows 10 Pro, 64-bit

  • Board Form Factor

    UCFF (5.5" x 8")

  • Socket

    Soldered-down BGA

  • Internal Drive Form Factor

    M.2 SSD

  • Number of Internal Drives Supported

    2

  • Lithography

    14 nm

  • TDP

    65 W

  • DC Input Voltage Supported

    19 VDC

  • Processor Included

    Intel Core i7-8705G Processor with Radeon RX Vega M GL graphics (8M Cache, up to 4.10 GHz)

  • Intel vPro Platform Eligibility

    No

  • Number of Cores

    4

  • Number of Threads

    8

  • Processor Base Frequency

    3.10 GHz

  • Max Turbo Frequency

    4.10 GHz

Memory & Storage

Jump to...
  • Storage

    512GB NVMe SSD

  • Memory

    2x 8GB DDR4-2400

  • Max Memory Size

    32 GB (dependent on memory type)

  • Memory Types

    DDR4-2400 1.2V SO-DIMM

  • Max Number of Memory Channels

    2

  • Max Memory Bandwidth

    38.4 GB/s

  • Max Number of DIMMs

    2

  • ECC Memory Supported

    No

Processor Graphics

Jump to...
  • Processor Graphics

    Intel HD Graphics 630

  • Integrated Graphics

    Yes

  • Graphics Output

    2x Mini-DP 1.2, 2x Thunderbolt 3, F+R HDMI 2.0a

  • Number of Displays Supported

    6

  • Discrete Graphics

    Radeon RX Vega M GL graphics

Expansion Options

Jump to...
  • PCI Express Revision

    Gen3

  • PCI Express Configurations

    Dual M.2 slots with PCIe x4 lanes

  • Removable Memory Card Slot

    SDXC with UHS-I support

  • M.2 Card Slot

    2230 (wireless)
    22x42/80, 22x80 (storage)

  • Number of USB Ports

    13

  • USB Configuration

    F: USB3, 2x USB 3.1g2 (Type A and C); R: 4x USB3, 2x Thunderbolt3 (USB3.1g2); INT: 2x USB2, 2x USB3

  • USB Revision

    2.0, 3.1 Gen2

  • USB 2.0 Configuration

    0 + 2 (External + Internal)

  • USB 3.0 Configuration

    1F, 4R, 2i (External + Internal)

  • Total Number of SATA Ports

    2

  • Max Number of SATA 6.0 Gb/s Ports

    2

  • RAID Configuration

    2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)

  • Audio

    7.1 digital; L+R+mic (F); L+R+TOSLINK (R) (back channel + front channel)

  • Integrated LAN

    Intel Ethernet Connection i219-LM and i210-AT

  • Integrated Wireless

    Intel Wireless-AC 8265 + Bluetooth 4.2

  • Integrated Bluetooth

    Yes

  • Consumer Infrared Rx Sensor

    Yes

  • S/PDIF Out Connector

    TOSLINK

  • Additional Headers

    CEC, 2x USB 2.0, USB 3.0, Front Panel

  • Number of Thunderbolt 3 Ports

    2

Advanced Technologies

Jump to...
  • Intel Virtualization Technology

    Yes (for Directed I/O (VT-d)

  • Intel Virtualization Technology

    Yes (for Directed I/O (VT-d)

  • Intel vPro Platform Eligibility

    No

  • TPM

    No

  • Intel HD Audio Technology

    Yes

  • Intel Rapid Storage Technology

    Yes

  • Intel Platform Trust Technology

    Yes (Intel PTT)

Security & Reliability

Jump to...
  • Intel AES New Instructions

    Yes

Physical

Jump to...
  • Color

    Gun Metal

  • Dimensions

    8.70 x 5.59 x 1.54" (221 x 142 x 39mm)

  • UPC Code

    735858391825

About Intel NUC 8

Experience extreme. At only 1.2 liters - which means it can be dropped into a messenger bag or tucked out of sight in an office or living space - the Intel NUC8i7HNKQC Mini PC is the smallest NUC capable of AAA gaming or 360 Degree video editing and is ready to go out-of-the-box. We innovated the Hades out of our Skull Canyon NUC - upgrading it with an 8th Generation Intel Core i7 processor with Radeon RX Vega M GL Graphics and redesigned the motherboard and chassis to optimize power use and size. Intel-built means the best technology available measured in gasps, shouts, and high fives.

Grab Every GHz of Performance for Gaming and Content Creation
The Intel NUC8i7HNKQC Mini PC delivers extreme gaming performance as well as the performance for 360 Degree video editing and rendering. With Windows 10, an 8th Gen Intel Core i7 processor with Radeon RX Vega M GL Graphics with 4 GB of dedicated high bandwidth memory, 16 GB of DDR4 RAM, and a 512 GB NVMe SSD, the Mini PC loads maps screaming fast and serves up photo and video files quickly.

On-board Intel HD Graphics 630 assists in streaming video to Twitch and other broadcast sites during live game play, while the discrete Radeon RX Vega M GL Graphics handles high-performance games. All this means a Mini PC as powerful as the biggest tower or laptop.

Extreme Connectivity for Controllers and Peripherals
With front and rear HDMI ports, two Mini DisplayPort ports, and two Thunderbolt 3 ports, the NUC8i7HNKQC Mini PC can handle up to five 4K displays or one 5K display for games or creations in living color. The six USB ports, one USB-C port, and the two Thunderbolt 3 ports assure fast data transfer and enough connectivity ports for controllers, graphics tablets, scanners, and music keyboards, along with a QWERTY keyboard, for the ability to create more amazing.

Design Optimized in the Smallest Package Available
The Intel NUC8i7HNKQC Mini PC packs all the performance of a desktop tower in a device that you can tuck behind a display. The system is fast as Hades for slaying opponents or task swapping with ease between CAD workloads and 3D jobs. The skull on the lid can be customized to light up RGB - or not - so the Mini PC is at home in the office, the living room, or at a LAN party. And its small size means the system can integrate discretely in any location and be moved without a hand truck.

Reach Your Goals
Whether it's the office, the living room, or the den, the Intel NUC8i7HNKQC Mini PC delivers more performance and more amazing. What else would you expect from Intel? We're the pioneers of possible who make extreme experiences a true reality.

Intel NUC 8 Features

  • 8th generation Intel Core i7-8705G processor with Radeon RX Vega M GL graphics
  • 4 GB HBM2 dedicated graphics memory
  • OS Windows 10 Professional
  • 16 GB DDR4-2400 RAM (expandable to 32 GB)
  • 512 GB NVMe SSD
  • M.2 slot with flexible support for 42 or 80 mm PCIe x4 or SATA3 SSD, RAID-0 or RAID-1 capable
  • Intel Dual Band Wireless-AC 8265 and Bluetooth 4.2
  • SDXC card slot
  • USB 3.1 Gen 2 port
  • USB-C 3.1 Gen 2 port
  • Five USB 3.0 ports including one front charging port
  • Two Thunderbolt 3 ports
  • Two Mini DisplayPort 1.2 supporting 8 channel digital audio (7.1 surround sound)
  • Two Intel Gigabit LAN ports
  • Two HDMI 2.0b ports supporting 8 channel audio (7.1 surround sound)
  • 3.5mm headphone/microphone jack
  • TOSLINK stereo/headphones combo jack
  • DC power connector (19V)
  • Support for user-replaceable third-party lids with customizable RGB LED illumination
  • Kensington lock support
  • Consumer infrared sensor

Key Features

  • 8th generation Intel Core i7-8705G processor with Radeon RX Vega M GL graphics
  • 4 GB HBM2 dedicated graphics memory
  • OS Windows 10 Professional
  • 16 GB DDR4-2400 RAM (expandable to 32 GB)
  • 512 GB NVMe SSD
  • M.2 slot with flexible support for 42 or 80 mm PCIe x4 or SATA3 SSD, RAID-0 or RAID-1 capable

What's in the box:

  • NUC8i7HNKQC NUC 8 Business Mini PC
  • VESA Bracket
  • 4x Wall Screws
  • 2x Chassis Screws
  • 19V Power Adapter
  • US Power Cord
  • Intel 3 Year Limited Warranty
