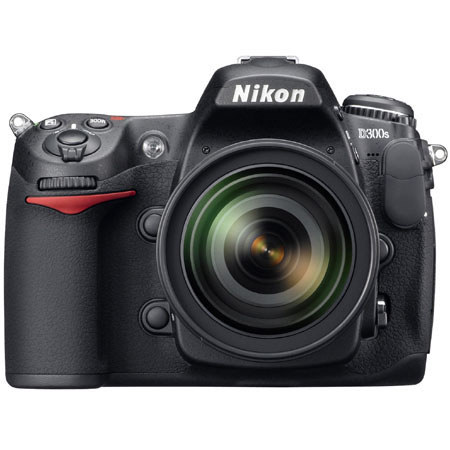

Nikon D300S SLR Digital Camera with 24-120mm f/3.5-5.6G ED-IF AF-S - USA Warranty

Single-lens reflex digital camera

Nikon F mount (with AF coupling and AF contacts)

Approx. 1.5 x conversion factor (Nikon DX format)

12.3 million

23.6 x 15.8 mm CMOS sensor

13.1 million

Image Sensor Cleaning, Image Dust Off reference data (requires optional Capture NX 2 software)

4,288 x 2,848 [L], 3,216 x 2,136 [M], 2,144 x 1,424 [S]

NEF (RAW): 12 or 14 bit, lossless compressed, compressed, or uncompressed
TIFF (RGB)
JPEG: JPEG-Baseline compliant with fine approx. 1:4), normal (approx. 1:8) or basic (approx. 1:16) compression (Size priority); Optimal quality compression available
NEF (RAW) + JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats

Can be selected from Standard, Neutral, Vivid, Monochrome; storage for up to nine custom Picture Controls

Type I CompactFlash memory cards (UDMA compliant); SD memory cards, SDHC compliant and JPEG images; images can be copied between cards

Either card can be used as the primary card; secondary card can be used for overflow or backup storage, or for separate storage of NEF (RAW)

DCF (Design Rule for Camera File System) 2.0, DPOF (Digital Print Order Format), Exif 2.21 (Exchangeable Image File Format for Digital Still Cameras), PictBridge

Eye-level pentaprism single-lens reflex viewfinder

Approx. 100% horizontal and 100% vertical

Approx. 0.94 x (50mm f/1.4 lens at infinity; -1.0 m)

19.5 mm (-1.0 m)

-2 to +1 m

Type B BriteView Clear Matte screen Mark II with AF area brackets(framing grid can be displayed)

Quick return

When depth-of-field preview button is pressed, lens aperture is stopped down to value selected by user (A and M modes) or by camera (P and S modes)

Instant return, electronically controlled

DX NIKKOR: All functions supported
Type G or D AF NIKKOR: All functions supported (PC Micro-NIKKOR does not support some functions); IX-NIKKOR lenses not supported
Other AF NIKKOR: All functions supported except 3D color matrix metering II; lenses for F3AF not supported
AI-P NIKKOR: All functions supported except 3D color matrix metering II

Non-CPU: Can be used in exposure modes A and M; color matrix metering and aperture value display supported if user provides lens data (AI lenses only) Electronic rangefinder can be used if maximum aperture is f/5.6 or faster

Electronically-controlled vertical-travel focal-plane shutter

1/8,000 to 30 s in steps of 1/3, 1/2 or 1 EV, bulb, X250

X = 1/250 s; synchronizes with shutter at 1/320 s or slower (flash range drops at speeds between 1/250 and 1/320 s)

S (single frame), CL (continuous low speed), CH (continuous high speed), (quiet shutter-release), 0 (self-timer), MUP (mirror up)

With Rechargeable Li-ion Battery EN-EL3e: Approx. 1 to 7 fps (CL), approx.7 fps (CH); With optional Multi-Power Battery Pack MB-D10 and Rechargeable Li-ion Battery EN-EL4a: Approx. 1 to 7 fps (CL), approx. 8 fps (CH)*

Can be selected from 2, 5, 10 and 20 s duration

TTL exposure metering using 1,005-pixel RGB sensor

Matrix: 3D color matrix metering II (type G and D lenses); color matrix metering II (other CPU lenses); color matrix metering available with non-CPU lenses if user provides lens data
Center-weighted: Weight of 75% given to 8-mm circle in center of frame. Diameter of circle can be changed to 6, 10 or 13 mm, or weighting can be based on average of entire frame (fixed at 8 mm when non-CPU lens is used)

Spot: Meters 3-mm circle (about 2% of frame) centered on selected focus point (on center focus point when non- CPU lens is used)

Matrix or center-weighted metering: 0 to 20 EV
Spot metering: 2 to 20 EV (ISO 100 equivalent,f/1.4 lens, 20°C/68°F)

Combined CPU and AI

Programmed auto with flexible program (P); Shutter-priority auto (S);Aperture-priority auto (A); Manual (M)

-5 to +5 EV in increments of 1/3, 1/2 or 1 EV

2 to 9 frames in steps of 1/3, 1/2, 2/3 or 1 EV

Luminosity locked at detected value with AE-L/AF-L button

ISO 200 to 3200 in steps of 1/3, 1/2 or 1 EV; can also be set to approx. 0.3, 0.5, 0.7 or 1 EV (ISO 100 equivalent) below ISO 200 or to approx. 0.3, 0.5, 0.7 or 1 EV (ISO 6400 equivalent) above ISO 3200(Recommended Exposure Index)

Can be selected from auto, extra high, high, normal, low or off

2 to 5 frames with strength levels varying according to number of frames chosen; for 2 frames, off and a chosen level are applied

Nikon Multi-CAM 3500DX autofocus sensor module with TTL phase detection, fine-tuning, 51 focus points (including 15 cross-type sensors) and AF-assist illuminator (range approx. 0.5 to 3 m/1 ft. 8 in. to 9 ft. 10 in.)

-1 to +19 EV (ISO 100 equivalent, 20°C /68°F)

Autofocus: Single-servo AF (S); continuous-servo AF (C); predictive focus tracking automatically activated according to subject status in single- and continuous-servo AF
Manual (M): Electronic rangefinder supported

Can be selected from 51 or 11 focus points

Single-point AF, dynamic-area AF, auto-area AF

Focus can be locked by pressing shutter-release button halfway (Singleservo AF) or by pressing AE-L/AF-L button

Manual pop-up with button release; Guide number of 17/56 (m/ft., ISO 200, 20°C/68°F) or 12/39 (m/ft., ISO 100 equivalent, 20°C/68°F)

TTL: i-TTL balanced fill-flash and standard i-TTL flash for digital SLR using 1,005-pixel RGB sensor are available with built-in flash, Speedlight SB-900, SB-800, SB-600 or SB-400
Auto aperture: Available with Speedlight SB-900 or SB-800 and CPU lens
Non-TTL auto: Supported flash units include Speedlight SB-900, SB-800, SB-28, SB-27 and SB-22S
Range-priority manual: Available with Speedlight SB-900 and SB-800

Front curtain sync, slow sync, rear-curtain sync, red-eye reduction, redeye reduction with slow sync

-3 to +1 EV in increments of 1/3, 1/2 or 1 EV

2 to 9 frames in steps of 1/3, 1/2, 2/3 or 1 EV

Lights when built-in flash or flash unit such as Speedlight SB-900, SB-800, SB-600, SB-400, SB-80DX, SB-28DX or SB-50DX is fully charged; blinks after flash is fired at full output

ISO 518 hot-shoe with sync and data contacts and safety lock

Advanced Wireless Lighting supported with built-in flash, Speedlight SB-900, SB-800 or SU-800 as commander and SB-900, SB-800, SB-600 or SB-R200 as remotes; Auto FP High-Speed Sync and modeling illumination supported with all CLS-compatible flash units except SB-400; Flash Color Information Communication and FV lock supported with all CLS-compatible flash units

ISO 519 sync terminal with locking thread

Auto (TTL white-balance with main image sensor and 1,005-pixel RGB sensor), Incandescent, Fluorescent (7 options), Direct Sunlight, Flash, Cloudy, Shade, preset manual (able to store up to 5 values) and color temperature setting (2,500K to 10,000K); fine-tuning available for all options

2 to 9 frames in steps of 1, 2 or 3

Tripod, Hand-held

Tripod: Contrast-detect AF anywhere in frame
Hand-held: TTL phase detection AF with 51 focus points (including 15 cross-type sensors)

1,280 x 720/24 fps, 640 x 424/24 fps, 320 x 216/24 fps

AVI

Motion-JPEG

Contrast-detect AF on a desired point within a frame is possible (Tripod mode)

Sound can be recorded via built-in or optional external microphone; sensitivity can be adjusted

5 min (1,280 x 720 pixels), 20 min (640 x 424, 320 x 216 pixels)

3-in., approx. 920k-dot (VGA), low-temperature polysilicon TFT LCD with 170° viewing angle, approx. 100% frame coverage and brightness adjustment

Full-frame and thumbnail (4, 9 or 72 images) playback with playback zoom, movie playback, slide show, histogram display, highlights, auto image rotation and image comment (up to 36 characters)

Hi-Speed USB

Can be selected from NTSC and PAL

Type C HDMI connector; camera monitor turns off when HDMI cable is connected

Stereo mini-pin jack (3.5-mm diameter)

Can be used to connect optional remote control, GPS Unit GP-1 or GPS device compliant with NMEA0183 version 2.01 or 3.01 (requires optional GPS Cable MC-35 and cable with D-sub 9-pin connector)

Chinese (Simplified and Traditional), Danish, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish

One Rechargeable Li-ion Battery EN-EL3e

Optional Multi-Power Battery Pack MB-D10 with one Rechargeable Li-ion Battery EN-EL3e, EN-EL4a/EN-EL4 or eight R6/AA-size alkaline,Ni-MH, lithium or nickel-manganese batteries; Rechargeable Li-ion Battery EN-EL4a/EN-EL4 and R6/AA-size batteries available separately; Battery Chamber Cover BL-3 (available separately) required when using Rechargeable Li-ion Battery EN-EL4a/EN-EL4

AC Adapter EH-5a/EH-5 (available separately)

1/4 in. (ISO 1222)

0-40°C/32-104°F

Less than 85% (no condensation)

Approx. 147 x 114 x 74 mm/5.8 x 4.5 x 2.9 in.

Approx. 840 g/1 lb. 14 oz. without battery, memory card, body cap or monitor cover

Nikon 1 year limited warranty

846431001748
