Nikon UT-1 Communication Unit with WT-5A Wireless Transmitter
See all Nikon items

Nikon UT-1 Communication Unit with WT-5A Wireless Transmitter

SKU: INKUT1K
(1)

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2015-12-09T12:56:58

Rated 1 out of 5

DO NOT BUY THIS BUNDLE (ut-1/wt5)

This is impossible to get up and running. Nikon dropped the ball on this one. All the blogs I've read say the same thing, but no I had to try it. Was in contact with Nikon tech rep and he was absolutely no help what so ever! I could not even get the ut-1 to work with the network cable (no wt-5 installed). The ut-1 would not stop showing an error no matter what I tried. Looks like this bundle will be returned.

DENNIS M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Nikon UT-1 Specifications

  • Compatibility

    Nikon D810, D810A, D800, D800E, D750, D7200, D7100 and D7000 DSLRs

  • UT-1: Standards

    IEEE 802.3u (100 base-TX)/IEEE 802.3 (10 base-T)

  • UT-1: Data rates

    10/100 Mbps with auto detect

  • UT-1: Port

    100 base-TX/10 base-T (Auto-MDIX)

  • WT-5A: Standards

    802.11 a/b/g/n

  • WT-5A: Operating Frequencies (MHz)

    5180-5320 MHz (36/40/44/48/52/56/60/64 ch)

  • WT-5A: Approx. range (line of sight)

    590.5 feet (With large antenna at wireless LAN access point. Range varies with signal strength and presence or absence of obstacles.)

  • WT-5A: Security

    Authentication: Open system, shared key, WPA-PSK, WPA2-PSK
    Encryption: 128/64 bit WEP, TKIP, AES

  • WT-5A: Wireless setup

    Supports WPS

  • WT-5A: Access protocols

    Infrastructure, ad hoc

  • WT-5A: Data transfer protocols

    PTP-IP, ftp

  • WT-5A: Power Consumption

    UT-1 only approx. 1.9W; Approx. 2.8W maximum (including UT-1 and WT-5A)

  • Dimensions (WxHxD)

    2.2 ½ 1.8 ½ 4.5" (5.59 x 4.57 x 11.43cm)

  • Weight

    Approx. 7.2 oz (204.12g)

  • UPC Code

    18208270996

1 Accessories for Nikon UT-1 Communication Unit with WT-5A Wireless Transmitter

  • All Accessories (1)
  • Batteries & Power Supply (1)
Nikon EP-5B Power Supply Connector
Nikon EP-5B Power Supply Connector
$54.00
Recommended

About Nikon UT-1

UT-1 Communication Unit with WT-5A Wireless Transmitter

Nikon

The UT-1 Communications Unit/WT-5A Wireless Transmitter combination, when connected to the D810, D810A, D800, D800E, D750, D7200, D7100 or D7000 DSLRs, allows the camera to connect wirelessly to a computer or FTP server for downloading of images, in addition to controlling the camera remotely using Nikon’s Camera Control Pro 2 software.

The UT-1 is powered by an EN-EL15 Li-ion rechargeable battery (available separately); It can also be powered by the optional EP-5B power connector and EH-5b or EH-5/EH-5a AC Adapter.

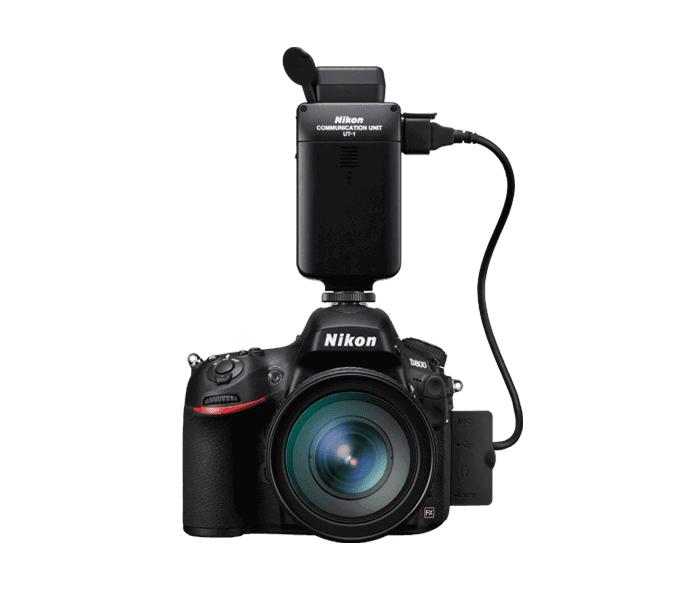

The UT-1 (with the WT-5 attached to it) attaches to the DSLR via the accessory hot shoe, or the optional SK-7 bracket.

To use the UT-1 with a D7100, use the UC-E6 USB cable, which is provided with the camera, to connect the UT-1 with the D7100.

UT-1 WT-5A

The UT-1 with Wireless Transmitter WT-5A supports the following modes (wirelessly):

Transfer mode: transmit images and movies to a host (computer or FTP server) from the camera. In transfer mode, you have the option of turning on Auto Send, which automatically downloads images to the computer/FTP server immediately after they’re recorded to the camera’s memory card. The default setting is OFF; when used, you select images for downloading while in playback mode.

UT-1 WT-5A

PC mode: transfer images to a computer from the camera directly, instead of saving the images to the media card first, (however, movie files must be saved first to the media card, then downloaded to the computer), as well as control the camera from a computer using Nikon’s Camera Control Pro 2 software.

The UT-1 can store up to nine host and server profiles.

Compatabile with:

  • D4S/D4
  • D810/D810A
  • D800/D800E
  • D750
  • D7200
  • D7100
  • D7000

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Nikon UT-1 Communication Unit
  • WT-5A Wireless Transmitter
  • 2.0 USB Cable A
  • 3.0 USB Cable B
  • UF-3 USB Cable Cover
  • UC-CT1 Case
  • Software CD
  • Nikon 1 Year Warranty
