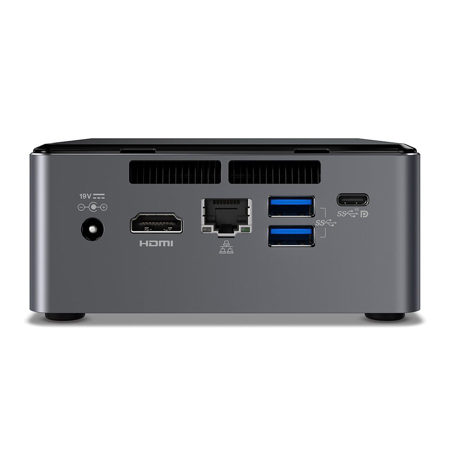

Intel NUC7i3BNH NUC Mini PC Kit, i3-7100U 2.40GHz, M.2 and 2.5" Drive Expansion
See all Intel items

Intel NUC7i3BNH NUC Mini PC Kit, Intel Core i3-7100U 2.40GHz, M.2 and 2.5" Drive Expansion, WiFi & Bluetooth (Does Not Include RAM, Storage, OS)

SKU: INNUC7I3BNH

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Intel NUC7i3BNH Specifications

  • Board Form Factor

    UCFF (4" x 4")

  • Socket

    Soldered-down BGA

  • Internal Drive Form Factor

    M.2 (1 slot) and 2.5" Drive (1 bay)

  • No of Internal Drives Supported

    2

  • Lithography

    14 nm

  • TDP

    15 W

  • DC Input Voltage Supported

    12-19 VDC

  • Processor

    Intel Core i3-7100U Processor (3M Cache)

  • Base Frequency

    2.40 GHz

  • Max Memory Size

    32GB (dependent on memory type)

  • Memory Types

    DDR4-2133 1.2V SO-DIMM

  • Max no of Memory Channels

    2

  • Max Memory Bandwidth

    34.1 GB/s

  • Max no of DIMMs

    2

  • ECC Memory Supported

    No

  • Integrated Graphics

    Yes

  • Graphics Output

    HDMI 2.0a; USB-C (DP1.2)

  • No of Displays Supported

    3

  • PCI Express Revision

    Gen3

  • PCI Express Configurations

    M.2 slot with PCIe x4 lanes

  • Removable Memory Card Slot

    SDXC with UHS-I support

  • M.2 Card Slot (storage)

    22x42/80

  • No of USB Ports

    6

  • USB Configuration

    2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers

  • USB Revision

    2.0, 3.0

  • USB 2.0 Configuration

    External + Internal: 0 + 2

  • USB 3.0 Configuration

    External + Internal: 2B 2F + 0

  • Total no of SATA Ports

    2

  • Max no of SATA 6.0 Gb/s Ports

    2

  • RAID Configuration

    2.5" HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1)

  • Audio (back channel + front channel)

    7.1 digital (HDMI mDP); L+R+mic (F)

  • Integrated LAN

    10/100/1000

  • Integrated Wi-Fi

    Intel Wireless-AC 8265 + BT 4.2

  • Integrated Bluetooth

    Yes

  • Consumer Infrared Rx Sensor

    Yes

  • Intel Optane Memory Supported

    Yes

  • Intel Virtualization Technology

    Yes, for Directed I/O (VT-d)

  • Intel vPro Technology

    No

  • TPM

    No

  • Intel HD Audio Technology

    Yes

  • Intel Rapid Storage Technology

    Yes

  • Intel Virtualization Technology (VT-x)

    Yes

  • Intel Platform Trust Technology

    Yes

  • Dimensions

    2.01 x 4.37 x 4.53"

  • UPC Code

    735858320047

About Intel NUC7i3BNH

Make It Your Own
A customizable Mini PC kit with the power of a desktop PC. Choose your RAM, storage and operating system to build the PC you want. NUC7i3BNH has room for a lightning fast 2.5" SSD or spacious HDD with up to 2 TB of storage. Also features room for up to 32 GB of DDR4 RAM so you can increase performance easily.

Small, but Mighty
Featuring one of the latest 7th Gen Intel Core processors, one of the newest NUC lineup offers plenty of choice when it comes to your next highly capable small form factor PC. Whether you're automating your home for security, enjoying 4K entertainment or making it the brains for your smart home, there's an Intel NUC for you.

Ready to Entertain
Intel HD Graphics transforms the viewing experience with 4K Ultra HD video and premium content playback, enabling new ways to enjoy the latest Hollywood blockbusters. And the cool multi-color LED ring lets you personalize your NUC with the look you want-making it at home in the living room, den, office or any place you can imagine.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Requires DDR4-2133 SODIMM RAM (2 Slots, Max 32GB)
  • Requires M.2 or 2.5" Storage Drive
  • Requires OS

What's in the box:

  • Intel NUC7i3BNH NUC Mini PC
  • VESA Mount Bracket
  • Wall-Mountable Power Adapter with Multi-Country Plugs
  • Processor Badge
  • Intel 3 Year Warranty
