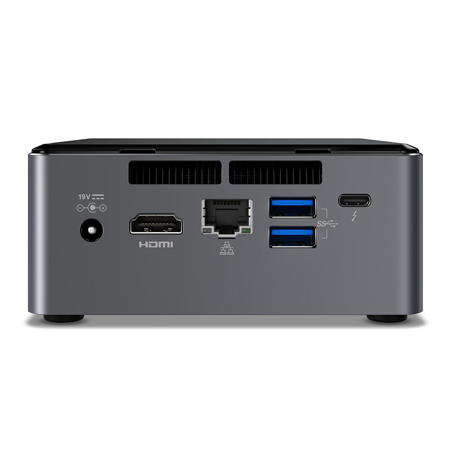

Intel NUC7i5BNH NUC Mini PC Kit, i5-7260U 2.2GHz, M.2 & 2.5" Drive Expansion
See all Intel items

Intel NUC7i5BNH NUC Mini PC Kit, Intel Core i5-7260U 2.2GHz, M.2 and 2.5" Drive Expansion (Does Not Include RAM, Storage Drive, OS)

SKU: INNUC7I5BNH

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Intel NUC7i5BNH Specifications

  • Series

    NUC (Next Unit of Computing)

  • CPU Type

    7th Generation Intel Core i5-7260U 2.2 GHz (up to 3.4 GHz Turbo) Dual Core 4 MB cache, 15W TDP

  • Memory

    Memory installed: No Memory
    Memory slot: 2x 260 Pin SO-DIMM
    Memory Type Supported: DDR4 2133
    Max Memory Supported: 32GB

  • Expansion Slots

    1 x M.2 (Internal)
    1 x 2.5" (Internal)

  • Storage

    Hard Drive Installed: No Hard Drive
    Serial ATA: 1x SATA 6.0Gb/s

  • Graphics

    Intel Iris Plus Graphics 640

  • LAN

    10/100/1000Mbps (RJ-45) Intel i219V

  • Wi-Fi

    Intel Wireless-AC 8265 soldered-down, IEEE 802.11ac 2x2

  • Bluetooth

    Bluetooth v4.2

  • USB & Thunderbolt Ports

    4x USB 3.0 Type-A
    1x Thunderbolt 3 Type-C

  • HDMI Port

    1x HDMI 2.0

  • Audio Port

    1x 1/8" (3.5 mm) headphone/microphone combo jack

  • Microphone

    Integrated Microphone

  • Flash Media Slot

    1x microSD/SDHC/SDXC

  • Power Supply

    19V 65W wall-wart power supply with interchangeable plugs included

  • Dimensions (WxHxD)

    4.5 x 4.4 x 2.0" (11.43 x 11.18 x 5.08cm)

  • UPC Code

    735858320160

About Intel NUC7i5BNH

Make it Your Own
A customizable Mini PC kit with the power of a desktop PC. Choose your RAM, storage and operating system to build the PC you want. NUC7i5BNH has a 2.5" drive bay for an SSD or HDD with up to 2TB of storage space for all your media. Also features room for up to 32GB of DDR4 RAM (not included) so you can increase performance easily.

• 7th Generation Intel Core i5-7260U
• 2.2 GHz up to 3.4 GHz Turbo, Dual Core
• 4MB cache, 15W TDP
• Intel Iris Plus Graphics 640
• 2x 260 Pin SO-DIMM DDR4 2133

Small, But Mighty
Featuring the latest 7th Gen Intel Core processors, the newest NUC lineup offers plenty of choice when it comes to your next highly capable small form factor PC. Whether you're automating your home for security, enjoying 4K entertainment or kicking your gaming experience into high gear, there's an Intel NUC for you.

Ready to Entertain
Intel Iris Plus graphics transform the viewing experience with 4K Ultra HD video and premium content playback, enabling new ways to enjoy the latest Hollywood blockbusters. And the cool multi-color LED ring lets you personalize your NUC with the look you want-making it at home in the living room, den, office or any place you can imagine.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Requires DDR4-2133 SODIMM RAM (2 Slots, Max 32GB)
  • Requires M.2 Storage Drive
  • Requires OS

What's in the box:

  • Intel NUC7i5BNH NUC Mini PC
  • VESA Mount Bracket
  • Wall-Mountable Power Adapter with Multi-Country Plugs
  • Processor Badge
  • Intel 3 Year Limited Warranty
