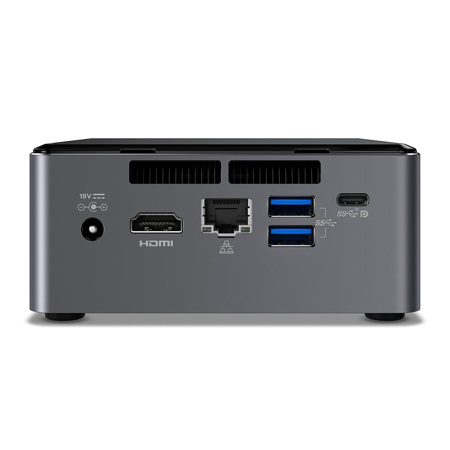

Intel NUC7i7BNHX1 NUC Barebone Mini PC with Intel 16GB Optane Memory, i7-7567U
See all Intel items

Intel NUC7I7BNHX1 NUC Barebone Mini PC with Intel 16GB Optane Memory - Includes Intel Core i7-7567U CPU and Integrated Graphics (RAM, Storage Drive, Operating System, Not Included)

SKU: INNUC7I7BNHX

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Intel NUC Kit Specifications

  • Board Form Factor

    UCFF (4" x 4")

  • Socket

    Soldered-down BGA

  • Internal Drive Form Factor

    2.5" Drive

  • No of Internal Drives Supported

    1

  • Lithography

    14 nm

  • TDP

    28 W

  • DC Input Voltage Supported

    12-19 VDC

  • Processor

    Intel Core i7-7567U Processor (4M Cache) Dual Core

  • Base Clock Speed

    3.50 GHz

  • Max Boost Speed

    4.00 GHz

  • Embedded Options Available

    No

  • Intel Optane Memory

    16GB Intel Optane Memory M.2 module pre-installed

  • Ports

    Thunderbolt 3: x1
    USB 3.1: x6
    DisplayPort 1.2: x1 via USB-C

  • Built-In Mics

    Dual microphones

  • Maximum Memory Capacity

    32GB

  • Memory Type

    DDR4-2133 1.2V SO-DIMM

  • Max no of Memory Channels

    2

  • Max Memory Bandwidth

    34.1 GB/s

  • Max no of DIMMs

    2

  • ECC Memory Supported

    No

  • Integrated Graphics

    Yes

  • Graphics Output

    HDMI 2.0a; USB-C (DP1.2)

  • No of Displays Supported

    3

  • PCI Express Revision

    Gen3

  • PCI Express Configuration

    M.2 slot with PCIe x4 lanes

  • Removable Memory Card Slot

    SDXC with UHS-I support

  • M.2 Card Slot (storage)

    22x42/80

  • USB Revision

    2.0, 3.0

  • No of USB Ports

    6

  • USB 2.0 Configuration(External+Internal)

    0 + 2

  • USB 3.0 Configuration(External+Internal)

    2B 2F + 0

  • Total no of SATA Ports

    2

  • Max no of SATA 6.0 Gb/s Ports

    2

  • Audio (back channel + front channel)

    7.1 digital (HDMI mDP); L+R+mic (F)

  • Integrated LAN

    10/100/1000

  • Integrated Wi-Fi

    Intel Wireless-AC 8265 + BT 4.2

  • Integrated Bluetooth

    Yes

  • Consumer Infrared Rx Sensor

    Yes

  • No of Thunderbolt 3 Ports

    1

  • Additional Interfaces

    CEC, 2x USB2.0, FRONT_PANEL

  • Optane Memory Supported

    Yes

  • Virtualization Technology

    For Directed I/O (VT-d): Yes

  • vPro Technology

    No

  • TPM

    No

  • HD Audio Technology

    Yes

  • Rapid Storage Technology

    Yes

  • Virtualization Technology(VT-x)

    Yes

  • Platform Trust Technology (Intel PTT)

    Yes

  • Dimensions

    4.5 x 4.4 x 2"

  • UPC Code

    735858338882

About Intel NUC Kit

Smart System Acceleration
Intel NUC Kit NUC7i7BNHX1 is built on a 7th Generation Intel Core i7 processor and comes with 16GB Intel Optane memory preinstalled. The result is amazing responsiveness that frees you to start your computer quicker, experience faster game level-loading and save files in less time. Plus, Intel Optane memory automatically learns your computing behaviors to accelerate frequently performed tasks.

Make It Your Own
A customizable Mini PC kit with the power of a desktop PC. Choose your RAM, storage and operating system to build the PC you want. This Intel NUC has room for up to 32 GB of DDR4 RAM and a 2.5" SATA HDD. When combined with Intel Optane memory, it offers the best of both worlds-high speed acceleration and affordable large storage capacity.

Small, But Mighty
Featuring one of the latest 7th Generation Intel Core processors, members of the newest NUC lineup offer plenty of choice when it comes to your next highly capable small form factor PC. Whether you're automating your home for security, enjoying 4K entertainment or making it the brains for your smart home, there's an Intel NUC for you.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Intel NUC7i7BNHX1 Barebone Mini PC with Dual Microphone & SDXC Card Slot
  • Intel 3 Year Warranty
