Intel NUC8i3BEK NUC Mini PC Kit with Dual Microphone & SDXC Card Slot, Intel Core i3-8109U 3.60GHz (Does Not Include RAM, Storage Drive, OS)

SKU: INNUC8I3BEK1

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Intel NUC8i3BEK Specifications

Essentials

Essentials

Jump to...
  • Board Form Factor

    UCFF (4" x 4")

  • Socket

    Soldered-down BGA

  • Internal Drive Form Factor

    M.2 SSD

  • # of Internal Drives Supported

    1

  • Lithography

    14 nm

  • TDP

    28 W

  • DC Input Voltage Supported

    12-19 VDC

  • Processor

    Intel Core i3-8109U Processor (4M Cache, up to 3.60 GHz)

Supplemental Information

Jump to...
  • Embedded Options Available

    No

  • Other Feature

    Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones

Memory & Storage

Jump to...
  • Max Memory Size

    32 GB (dependent on memory type)

  • Memory Types

    DDR4-2400 1.2V SO-DIMM

  • Max # of Memory Channels

    2

  • Max Memory Bandwidth

    38.4 GB/s

  • Max # of DIMMs

    2

  • ECC Memory Supported

    No

Processor Graphics

Jump to...
  • Processor Graphics

    Intel Iris Plus Graphics 655

  • Integrated Graphics

    Yes

  • Graphics Output

    HDMI 2.0a; USB-C (DP1.2)

  • # of Displays Supported

    3

Expansion Options

Jump to...
  • PCI Express Revision

    Gen3

  • PCI Express Configurations

    M.2 slot with PCIe X4 lanes

  • Removable Memory Card Slot

    microSDXC with UHS-I support

  • M.2 Card Slot (storage)

    22x42/80

I/O Specifications

Jump to...
  • # of USB Ports

    6

  • USB Configuration

    2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers

  • USB Revision

    2.0, 3.1 Gen2

  • USB 2.0 Configuration

    External + Internal: 0 + 2

  • USB 3.0 Configuration

    External + Internal: 2B 2F + 0

  • Total # of SATA Ports

    2

  • Max # of SATA 6.0 Gb/s Ports

    2

  • Audio (back channel + front channel)

    7.1 digital (HDMI mDP); L+R mic (F)

  • Integrated LAN

    Intel Ethernet Connection I219-V

  • Integrated Wireless

    Intel Wireless-AC 9560 + Bluetooth 5.0

  • Integrated Bluetooth

    Yes

  • Consumer Infrared Rx Sensor

    Yes

  • Additional Headers

    CEC, 2x USB2.0, FRONT_PANEL

  • # of Thunderbolt 3 Ports

    1

Advanced Technologies

Jump to...
  • Intel Optane Memory Supported

    Yes

  • Intel Virtualization Technology

    Yes (for Directed I/O - VT-d)

  • TPM

    No

  • Intel HD Audio Technology

    Yes

  • Intel Rapid Storage Technology

    Yes

  • Intel Virtualization Technology (VT-x)

    Yes

  • Intel Platform Trust Technology

    Yes (Intel PTT)

Security & Reliability

Jump to...
  • Intel AES New Instructions

    Yes

Environment

Jump to...
  • Temperature

    Operating: 32 Degree F to 104 Degree F (0 Degree C to +40 Degree C)
    Storage: -4 Degree F to 140 Degree F (-20 Degree C to +60 Degree C)

Mechanical Chassis Size

Jump to...
  • Dimensions

    4.60 x 4.40 x 1.41" (117 x 112 x 36mm)

  • UPC Code

    735858384100

11 Accessories for Intel NUC8i3BEK NUC Mini PC Kit with Dual Microphone & SDXC Card Slot, Intel Core i3-8109U 3.60GHz (Does Not Include RAM, Storage Drive, OS)

  • All Accessories (11)
  • Drives & Storage (3)
  • Memory & Data Storage (2)
  • Keyboards & Mice (1)
  • Memory & Storage (2)
  • Flash Memory & Readers (1)
  • Speakers (1)
  • Microphone and Accessories (1)

About Intel NUC8i3BEK

Intel NUC: Go Small. Get Big.

The shape that fits the future.
Get ready for spectacularly responsive performance from the Intel NUC Mini PC kits with 8th Generation Intel Core i3 processors. The latest generation of Intel NUC kits let you or your customers build the exact system they want. From choosing chassis size to memory options to storage configurations, the benefit of building an Intel NUC kit is the ability to completely customize the kit for your specific usage. Whether working on presentations, word processing, or streaming media, the Intel NUC8i3BEK Mini PC kit deliver the features people want-in a size that fits easily into any lifestyle and any room in the house.

The First Intel NUC Mini PC Kits with a Dual-Core 8th Generation Intel Core i3 Processor
The Intel NUC8i3BEK Mini PC kit with a true dual-core 8th generation Intel Core i3 processor delivers a big jump in performance compared to the previous generation Intel NUC7i3BNH/BNK kits.

Whether it's built for a new home PC or a system with 4K UHD graphics for picture perfect entertainment, the Intel NUC8i3BEK Mini PC kit gives great visual immersion with Iris Plus Graphics 655 and the unprecedented performance of Intel Core processors.

Work Like a Boss with Thunderbolt 3, USB 3.1, and 4K Ultra HD
The Intel NUC Mini PC kits have chassis that are connectivity powerhouses. Both come with Thunderbolt 3 which supports up to 40 GBps of data transfer, four USB 3.1 ports, and two additional USB ports via 1x4 internal headers. There's also room for an M.2 SSD. The Intel NUC Mini PC kits support triple displays all in 4K Ultra HD-with an HDMI 2.0a port and DisplayPort 1.2 via USB-C-so images or work can show across three screens without losing fidelity.

Think You Know What Small Can Do? Think Again.
In a footprint that's almost zero-especially when compared with a tower-the Intel NUC Mini PC kits can be custom built to have the performance and features of a desktop PC in a device that fits in the palm of your hand. The small size means the Intel NUC can be positioned almost anywhere-from behind a display to tucked discretely in an entertainment center. And with improved cooling, fan noise is minimal-which means a quieter experience no matter where the Intel NUC is positioned.

The Intel NUC: Who Says Small Isn't Powerful?
Power, Capabilities, And Performance In A Near-Zero Footprint

Intel NUC8i3BEK Features

  • 8th generation Intel Core i3-8109U processor
  • Iris Degree Plus Graphics 655
  • Two DDR4 SO-DIMM sockets (up to 32 GB, 2400 MHz)
  • M.2 slot with flexible support for a 42 or 80 mm M.2 SSD
  • Intel Dual Band Wireless-AC 9560 and Bluetooth 5.0
  • Back panel DC power connector (12-19V)
  • HDMI 2.0a display port supporting 8 channel audio (7.1 surround sound)
  • Inter Gigabit LAN
  • Two USB 3.1 ports on the back panel
  • Thunderbolt 3 USB Type-C port providing DisplayPort 1.2 or USB 3.1 gen 2
  • Kensington lock support
  • Support for user-replaceable third-party lids
  • Micro SD card slot
  • Consumer infrared sensor

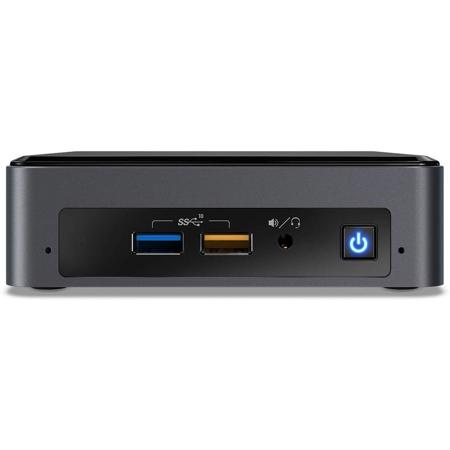

  • Two USB 3.1 ports (including one charging port)
  • Front panel headphone/microphone jack
  • Front panel power button
  • Dual-array front microphones

Key Features

  • 8th generation Intel Core i3-8109U processor
  • Iris Degree Plus Graphics 655
  • Two DDR4 SO-DIMM sockets (up to 32 GB, 2400 MHz)
  • M.2 slot with flexible support for a 42 or 80 mm M.2 SSD
  • Intel Dual Band Wireless-AC 9560 and Bluetooth 5.0
  • Back panel DC power connector (12-19V)

What's in the box:

  • NUC8i3BEK NUC Mini PC
  • AC Adapter
  • Intel 3 Year Limited Warranty
