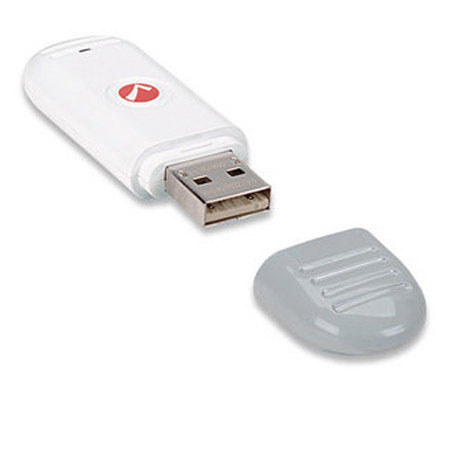

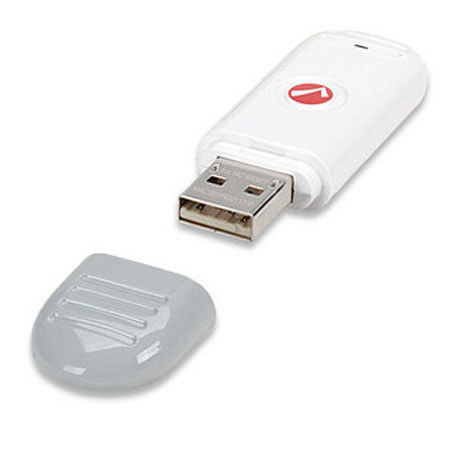

Intellinet Wireless 300N USB Adapter, 2.4000 - 2.4835 GHz Frequency Band

SKU: INT523974

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Intellinet Wireless 300N USB Adapter Specifications

  • Standards

    IEEE 802.11b (11 Mbps Wireless LAN)
    IEEE 802.11g (54 Mbps Wireless LAN)
    IEEE 802.11n (300 Mbps Wireless LAN)

  • Interface

    Hi-Speed USB 2.0

  • Frequency band

    2.4000 - 2.4835 GHz (Industrial Scientific Medical Band)

  • Modulation technologies

    802.11b: Direct Sequence Spread Spectrum (DSSS): DBPSK, DQPSK, CCK
    802.11g: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM
    802.11n: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM

  • Security

    64/128-bit WEP data encryption
    WPA and WPA2
    Cisco CCX

  • Transmit Power

    300 Mbps 20 MHz, 14 dBm +/- 1.5 dBm
    300 Mbps 40 MHz, 14 dBm +/- 1.5 dBm
    54 Mbps OFDM, 14 dBm +/- 1.5 dBm
    11 Mbps CCK, 17 dBm +/- 1.5 dBm

  • Receive sensitivity

    300 Mbps 20 MHz, -70 dBm
    300 Mbps 40 MHz, -67 dBm
    54 Mbps OFDM, -74 dBm
    11 Mbps CCK, -87 dBm

  • LEDs

    Link/Activity

  • System Requirements

    Notebook or desktop PC with Pentium 300 MHz-compatible processor or higher
    Windows 2000/XP/2003/Vista and Windows 7

  • Certification

    FCC Class B, CE

  • Operating Temperature

    0 - 40deg.C (32 - 104deg.F)

  • Storage Temperature

    0 - 60deg.C (0 - 149deg.F)

  • Operating Humidity

    10 - 95% RH, non-condensing

  • Dimensions (L x W x H)

    85 x 28 x 10mm / 3.35 x 1.10 x 0.39"

  • Weight

    0.4lbs / 0.18kg

  • UPC Code

    766623523974

About Intellinet Wireless 300N USB Adapter

The Intellinet Wireless 300N USB Adapter is a compact high-speed adapter that allows you to connect your notebook or desktop PC to wireless networks at faster speeds than ever before. Now you can transfer or receive digital images, videos and MP3 files faster than ever, connecting to the wireless network with link speeds of up to 300 Mbps using the latest in Wireless technology. This adapter is also compatible with 802.11b and 802.11g wireless access points and wireless routers, giving you the flexibility to start upgrading your wireless network without the need to replace your existing equipment.

The Wireless 300N USB Adapter supports up to 300 Mbps network link speed, providing you with optimum throughput for your data networking applications. Whether you are downloading music, images or large text files, the Wireless 300N USB Adapter, with its WMM-enhanced (IEEE 802.11e QoS standard) multi-media support, will optimize the performance of your wireless network, allowing you to spend your time more productively.

The Wireless 300N USB Adapter provides advanced security encryption and decryption using industry standard techniques such as 64/128-bit WEP, WPA (TKIP with IEEE 802.1x) and WPA2 (AES with IEEE 802.1x), ensuring that your data is secure as it is sent through the wireless network. The Wireless 300N USB Adapter features MIMO technology which increases the wireless transmission distance dramatically. This adapter is based on Wireless N 2T2R MIMO technology, which uses two internal antennas for transmitting and two internal antennas for receiving data.

The Wireless 300N USB Adapter features a compact design that allows you to carry it with you wherever you go. And since it supports 802.11b, 802.11g and 802.11n, you can connect to a network at any public wireless hotspot. Whether you are home or at work, at an airport or at an Internet cafe, simply plug the Wireless 300N USB Adapter into an available USB port on your notebook or desktop PC and instantly start enjoying wireless connectivity. The Wireless 300N USB Adapter is fully downwards compatible with the IEEE 802.11b and 802.11g standards and can be used to connect to existing 802.11b/g routers and wireless access points. When an 802.11n enabled wireless network is in range, you can benefit from the increased throughput and range, which the Wireless N standard provides.

Intellinet Wireless 300N USB Adapter Features

  • Connects your desktop PC or notebook to a wireless network
  • Up to 300 Mbps network link speed
  • Advanced 2T2R MIMO technology with 2 internal antennas for enhanced throughput and coverage
  • Supports WMM (IEEE 802.11e QoS standard) prioritizing bandwidth for multi-media applications
  • Supports WEP (64/128 bit), WPA and WPA2 data encryption
  • Supports Hi-Speed USB 2.0/1.1 interface
  • Supports Software AP function (turns your wireless client into a wireless access point)
  • Supports the most popular operating systems: Windows XP, Vista and Windows 7
  • Complies with 2.4 GHz IEEE 802.11n standard and is backward compatible with IEEE 802.11g/b standards
  • Use with INTELLINET NETWORK SOLUTIONS Wireless N WLAN products for best compatibility and performance

What's in the box:

  • Intellinet Wireless 300N USB Adapter
  • Quick Install Guide
  • Setup CD with User Manual
  • Intellinet 3 Year Warranty
