About IOGEAR Switch

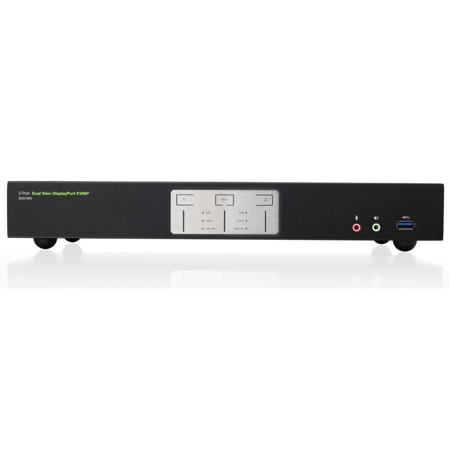

The 2-Port 4K Dual-Link DisplayPort KVMP Switch with USB 3.0 Hub and Audio (TAA) is a high-quality, durable, and efficient solution designed to maximize the potential of your high-end dual DisplayPort workstations. This user-friendly device allows you to experience cinema-grade 4K resolutions, rich bass, and immersive 7.1 surround sound while seamlessly switching between two computers and sharing two USB 3.0 peripherals with a simple push of a button.
This KVMP switch is designed to support dual 4K Cinema DisplayPort monitors, delivering a superior screen, image, and video quality that enhances your multimedia experience. With a 4K resolution standard of 4096 x 2160 at a frame rate of 60Hz, it's an ideal choice for professional film and video production industries, as well as applications in motion graphic design, animation, engineering, architecture, and media design.
Switching between two DisplayPort computers is made easy with convenient methods such as the push-button front panel or hotkey combination on your keyboard. The device also features the latest in mouse port-switching functionality, allowing you to change ports by simply clicking the wheel button on your 3-button USB mouse.
The 2-Port 4K Dual-Link DisplayPort KVMP Switch is also expandable, allowing you to tackle larger projects and double your desktop viewing space by adding a second 2-Port KVMP (GCS1942). This enables your workstations to accommodate up to four Cinema 4K DisplayPort monitors.
Smart connectivity features further enhance the versatility of this device. The Power on Detection feature ensures automatic connection to the next powered-on computer, while the Multi Stream Transport (MST) support allows you to double your desktop viewing space by daisy-chaining each monitor to another, accommodating up to four DisplayPort monitors. The built-in USB 3.0 ports provide connectivity speeds up to 5Gbps and are compatible with legacy USB 2.0 and 1.1 devices, making this KVMP switch a reliable and convenient powerhouse for your workstation.
IOGEAR Switch Features
Maximize your high-end multi-monitor workstation with superior video resolution
Share dual Cinema 4K DisplayPort monitors (4096 x 2160 at 60Hz)
Operate 4 DisplayPort computers with 1 keyboard, mouse and 2 monitors
Add another GCS1942 to expand up to four 4K monitors
DisplayPort 1.2 compliant, HDCP compliant
Allows independent switching of the KVM, USB and audio devices
Control/share USB3.0 peripherals between 4 computers; save money on duplicate devices
Work on computer "A" without interrupting USB peripheral connectivity on computer "B"
SuperSpeed 5Gbps transfer rate
MST (Multi-Stream Transport)
DP++ supports HDMI and DVI output
Computer selection via front panel pushbuttons, hotkeys, or mouse
Supports 7.1 HD audio through DisplayPort
Full bass response for high quality 2.1 channel audio
Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
Multi-platform support - Windows7, Windows 8.1, Windows 10, Mac OS and Linux
Multilingual keyboard mapping supports English, French and German keyboards
Mac keyboard support and emulation
RS-232 Commands
Auto-Scan Mode to monitor all computers
Power on detection
Hot pluggable
Firmware upgradable
Includes all KVM and audio cables
Warranty Information
This product has a limited warranty of 36 months.
