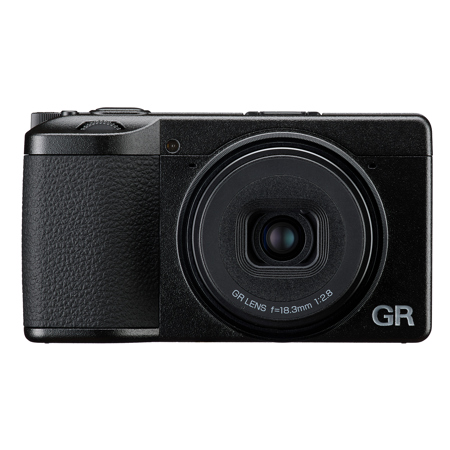

Ricoh GR IV HDF Digital Camera

SKU: IRCGR4NHDF MFR: 01568
Earn VIP Reward Points

Key Features

  • Built-in Highlight Diffusion Filter for soft, nostalgic effects; toggle with one action
  • Electronic Shutter: Up to 1/16,000 sec for bright scenes with wide apertures
  • Fn Button: Defaults to HDF on/off (customizable)
  • Shutter Button: Grayish silver color
  • Finger Strap: RICOH GS-4 genuine leather included
See More Product Details

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Ricoh GR IV HDF Specifications

General

General

Jump to...
  • Color

    Black

  • Shoe Mount

    Hot Shoe:
    Compatible with dedicated flash
    Flash Mode: Flash On, Flash On+Red-eye, Slow-speed Sync, Slow Sync+Red-eye
    Flash Output: AUTO, 1/1, 1/4

  • Lens Construction

    7 elements in 5 groups (3 aspherical lens elements)

  • AA Filter Simulator

    Moire reduction using SR unit (Off, Low, High)

  • Dust Removal

    Image sensor cleaning using ultrasonic vibrations "DR II"

  • Still Image

    Color Space: sRGB, AdobeRGB

    Recorded Pixels:
    (3:2):
    L (26M:6192x4128), M (16M:4944x3296), S (8.2M:3504x2336), XS (2.5M:1920x1280)
    (4:3):
    L (23M:5504x4128), M (15M:4400x3296), S (7.3M:3120x2336), XS (2.8M:1920x1440)
    (1:1):
    L (17M:4128x4128), M (11M:3296x3296), S (5.5M:2336x2336), XS (1.6M:1280x1280)

  • Still Image (Contd.)

    (16:9):
    L (22M:6192x3480), M (14M:4944x2784), S (6.9M:3504x1968), XS (2.1M:1920x1080)

  • Focus Mode

    Auto-area AF, Zone AF, Select AF, Pinpoint AF, Tracking AF, Continuous AF, MF, Snap (0.3m,1m, 1.5m, 2m, 2.5m, 5m, Infinite), Infinite

  • Focus Limiter

    Near Side, Far Side, OFF

  • Full Press Snap

    Performs shooting by focusing at the Snap distance with a single press of the Shutter Release Button or a touch of the LCD Monitor

  • Face/Eye Detection

    ON, Use only in Auto-area, OFF

  • Fine Adjustment

    Adjustable +/-14 steps on A-B axis or G-M axis

  • Drive

    Single Frame Shooting, Continuous Shooting, Bracketing, Multi-exposure, Interval Shooting, Interval Composite

  • Crop

    OFF,35mm,50mm

  • Image Control

    Standard, Vivid, Monotone, Soft Monotone, Hard Monotone, Hi-Contrast B&W, Negative Film, Positive Film, Cinema (Yellow), Cinema (Green), Bleach Bypass, Retro, Cross Processing, HDR Tone, Custom1, Custom2, Custom3

  • Image Control (Contd.)

    Adjust parameters: Saturation, Hue, High/Low Key Adjustment, Contrast, Contrast (Highlight), Contrast (Shadow), Sharpness, Shading, Clarity, Toning, Filter Effect, Grain Effect, HDR Tone Level, Color Tone (Adjust parameter varies depending on the selected image setting)

  • Dynamic Range Correction

    Highlight Correction, Shadow Correction

  • Noise Reduction

    Slow Shutter Speed Noise Reduction, High-ISO Noise Reduction

  • Horizon Correction

    SR On: correction up to 1 degree, SR Off: correction up to 1.5 degrees

  • HDF (Highlight Diffusion Filter)

    ON, OFF

  • Display

    Display magnification (4x, 16x), Grid display (4x4 Grid, 3x3 Grid), Histogram, Bright area warning, Electronic Level

  • Playback View

    Single frame, Multi-image (20, 48 frames), Display magnification (up to 16x, 100% view and Quick Zoom view available), Histogram (Y histogram, RGB histogram), Grid display (3x3 Grid, 4x4 Grid), Bright area warning, Auto Image Rotation, Folder display, Calendar Filmstrip Display

  • Base Parameter Adjustment

    Normal editing, Monotone editing
    Parameter: Brightness, Saturation, Filter Effect, Hue, Toning, Contrast, Sharpness (Adjust parameter varies depending on the selected editing setting)

  • RAW Development

    RAW file select: Select Single Image, Select Multiple Images, Select a folder, Select a shooting date
    RAW Development Parameter: Aspect Ratio, JPEG Recorded Pixels, Color Space, White Balance, Image Control, Peripheral Illumination Correction, Sensitivity, High-ISO Noise Reduction, Shadow Correction

  • Edit

    Delete, Protect, Image Rotation, Image Copy, File Transfer, Resize, Cropping (Aspect ratio and Slant adjustment available), Levels
    Adjustment, White Balance Adjustment, Color Moire Correction, Movie
    Edit (Cut), Movie Edit (Divide), Save Movie Frame as Image

  • Adjustments

    Brightness, Saturation, Blue/Amber, Green/Magenta, Outdoor View
    Setting: Auto, Manual ( +/-2 Steps)

  • Standards

    2.4GHz: IEEE802.11 b/g/n/ax
    5.2GHz: IEEE802.11 a/n/ac/ax (Not supported in some regions)
    5.8GHz: IEEE802.11 a/n/ac/ax (Not supported in some regions)

  • Operating frequency band range

    2.4GHz: 2400MHz - 2483.5MHz
    5.2GHz: 5150MHz - 5250MHz (Not supported in some regions)
    5.8GHz: 5725MHz - 5850MHz (Not supported in some regions)

  • Communication bandwidth

    2.4GHz: 20MHz
    5.2GHz: 20/40/80MHz
    5.8GHz: 20/40/80MHz

  • Security

    Authentication: WPA2, WPA3 / Encryption: AES

  • AC Adapter

    AC adapter compatible with USB Power Delivery, AC adapter (D-AC166; optional accessory)
    The camera is compatible with USB Power Delivery, but is not certified with the USB Implementers Forum logo.

  • Battery Life

    Number of recordable images: Approx. 250 images
    Playback time: Approx. 240 minutes

  • Language

    English, French, German, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Thai, Korean, Simplified Chinese, Traditional Chinese, Japanese

Imaging

Jump to...
  • Sensor Resolution

    Effective Pixels: Approx. 25.74 megapixels

  • Image Sensor

    Type: Primary color filter CMOS. Size: 23.3mm x 15.5mm

  • Image Stabilization

    Sensor-shift shake reduction "SR" (5-axis)

  • Focal Length

    18.3mm (Approx. 28mm in 35mm equivalent focal length)

  • Aperture

    f/2.8-16

  • Focus Range

    Normal: Approx. 0.1m-Infinite, Macro Mode: Approx. 0.06m-0.15m

Exposure Control

Jump to...
  • Shutter Speed

    1/4000 sec. - 30 sec. (Limit by aperture setting F2.8: 1/2500 sec, F5.6 or greater: 1/4000 sec.)
    Shutter speed can be set up to 1/16000 sec. with the electronic shutter

  • Bulb/Time Mode

    10sec. - 20min.

  • ISO Sensitivity

    100-204800: Auto (ISO Auto Lower/Upper Limit and Minimum
    Shutter Speed can be set), Manual

  • Metering Method

    Multi-segment, Center-weighted, Spot, Highlight-weighted

  • Exposure Modes

    Program AE, Aperture Priority AE, Shutter Priority AE, Snap Distance
    Priority AE, Manual Exposure

  • Exposure Compensation

    Still Image: +/-5EV, 1/3EV steps, Movie: +/-2EV, 1/3EV steps

  • White Balance

    Auto White Balance, Auto WB (Warmth Pri.), Auto WB (White Pri.), Daylight, Shade, Cloudy, Fl. - Daylight Color, Fl. - Daylight White, Fl. - Cool White, Fl. - Warm White, Tungsten, CTE, Manual White Balance, Color Temperature

  • Continuous Shooting

    Yes

  • Interval Recording

    Yes

  • Self-Timer

    10 sec., 2 sec., OFF

Still Image Capture

Jump to...
  • Aspect Ratio

    1:1, 3:2, 4:3, 16:9

  • Image File Format

    RAW (DNG) 14bit, JPEG (Exif 2.3), DCF2.0 compliant

Video Capture

Jump to...
  • Internal Recording

    File Format: MPEG4 AVC/H.264 (MOV)
    Recorded Pixels: Full HD (1920x1080, 60p/30p/24p)
    Recording Time: Up to 25 minutes or 4GB; automatically stops recording if the internal temperature of the camera becomes high.

  • Built-In Microphone

    Stereo

Interface

Jump to...
  • Media/Memory Card Slot

    Single Slot: microSD/microSDHC/microSDXC (UHS-I)

  • Internal Memory

    53GB

  • Power I/O

    USB Type-C: Battery Recharge/Power Supply (Optional AC Adapter required), Data Transfer: MTP, Video output: DisplayPort over USB-C (DisplayPort Alternative Mode)

  • Wireless

    Wi-Fi, Bluetooth v5.3 (Bluetooth Low Energy)

Monitor

Jump to...
  • Display Size

    3" (7.6cm)

  • Resolution

    1,037,000 Dot

  • Display Type

    Touchscreen LCD

Viewfinder

Jump to...
  • Type

    Hybrid AF (Image plane phase-matching and Contrast detection)

  • External Flash Connection

    Shoe Mount

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    DB-120

  • Battery Quantity

    1

Physical Details

Jump to...
  • Dimensions

    (W x H x D): 4.3 x 2.4 x 1.28" (109.4 x 61.1 x 32.7mm) (excluding protrusions) (Approx.)

    Depth:
    Lens part:1.2" (31.3mm)
    Body part:1" (24.5mm)

  • Weight

    9.2 oz (262g) (Included dedicated battery and SD memory card), 8 oz (228g) (Body only) (Approx.)

  • UPC Code

    027075311893

31 Accessories for Ricoh GR IV HDF Digital Camera

  • All Accessories (31)
  • Flash & Lighting (1)
  • Batteries & Power Supply (2)
  • Lens Adapters & Converters (1)
  • Filters (2)
  • Teleconverters (1)
  • Ring Cap (3)
  • Memory & Storage (4)
  • Bags & Cases (1)
  • Viewfinders (1)
  • Card Readers (2)
  • Cleaning Accessories (9)
  • Tripods & Monopods (2)
  • Lens Caps (2)

About Ricoh GR IV HDF

Ricoh Imaging is pleased to announce the launch of the RICOH GR IV HDF camera. Based on the RICOH GR IV premium compact camera, this new model incorporates the RICOH-original HDF Highlight Diffusion Filter), designed to deliver mellow, diffused expression with a single-action control.

With the exceptional image quality, flawless point-andshoot operation, and outstanding portability that the GR series is known for, the GR IV HDF allows the user to instantly engage the built-in HDF (Highlight Diffusion Filter) with a single action. This special-effect filter diffuses highlight areas and creates a blurred effect along the image's edges, making it possible to capture somewhat nostalgic images resembling those captured in film photography or vintage movies.

This creative versatility expands the visual boundaries of snapshot photography, giving the user the option to shoot high resolution, high contrast images for accuracy and precision; or softer, more expressive images to create a sense of depth and emotion, depending on their subject or creative intention.

The GR IV HDF also features an electronically controlled shutter mechanism, which allows the user to intentionally raise the shutter speed up to 1/16,000 second, making it possible to capture images at extremely bright locations while still setting a larger aperture. This mechanism will also be available for the RICOH GR IV using new function-expansion firmware, which is scheduled to be released following the launch of the new RICOH GR IV HDF.

Built-in RICOH-original HDF (Highlight Diffusion Filter), to create softer, more expressive images
The GR IV HDF incorporates the RICOH-original HDF (Highlight Diffusion Filter), which is designed to emphasize highlights and produce mellow, soft images. Developed by taking advantage of the advanced inkjet technology RICOH has cultivated over the years, this special-effect filter diffuses highlight areas and creates a blurred effect along the image's edges, making it possible to capture nostalgic images resembling those captured in film photography or movies. HDF can be instantly switched on and off with a single action, allowing the user effortlessly to alternate between two completely different visual expressions - clear, sharply focused images representative of the RICOH GR series, and softer light, more expressive images captured by the HDF - depending on the subject or creative intention.

High-speed electronic shutter with a top speed of 1/16,000 second for shooting at extremely bright locations
In addition to a conventional mechanical shutter unit, the GR IV HDF also features an electronically controlled shutter mechanism, which allows the user to intentionally raise the shutter speed up to 1/16,000 second, making it possible to capture images at extremely bright locations while still setting a larger aperture.

Note: This mechanism can also be installed on the RICOH GR IV using new function expansion firmware (scheduled to be released following the launch of the RICOH GR IV HDF).

HDF default setting for Fn Button and update to Shutterrelease button color
The default setting of the Fn (Function) button has been changed to the HDF ON/OFF switching function, allowing the user to quickly engage the HDF (Highlight Diffusion Filter) with the press of the button.

Note: The default setting of the Fn button can be changed to other functions.

The color of the shutter-release button has been changed from the GR IV's black to grayish silver, to subtly differentiate the HDF model and to symbolize the camera's ability to instantly shift the image's visual expression.

RICOH GS-4 Finger Strap
Genuine-leather finger strap that comfortably fits the user's hand for improved camera hold during carrying.

Note:
• The ND (Neutral Density) filter is not available with the RICOH GR IV HDF
• All other functions of the RICOH GR IV HDF are identical to those of the RICOH GR IV

Ricoh GR IV HDF Features

  • HDF Filter: Built-in Highlight Diffusion Filter for soft, nostalgic effects; toggle with one action
  • Electronic Shutter: Up to 1/16,000 sec for bright scenes with wide apertures (firmware for GR IV)
  • Fn Button: Defaults to HDF on/off (customizable)
  • Shutter Button: Grayish silver color
  • Finger Strap: RICOH GS-4 genuine leather included

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Built-in Highlight Diffusion Filter for soft, nostalgic effects; toggle with one action
  • Electronic Shutter: Up to 1/16,000 sec for bright scenes with wide apertures
  • Fn Button: Defaults to HDF on/off (customizable)
  • Shutter Button: Grayish silver color
  • Finger Strap: RICOH GS-4 genuine leather included

What's in the box:

  • Ricoh GR IV HDF Digital Camera
  • Rechargeable Li-ion Battery (DB-120)
  • USB Cable
  • Hand Strap
  • GN-3 Ring Cap (Black)
  • Hotshoe Cover
  • Ricoh 1 Year Limited Warranty
