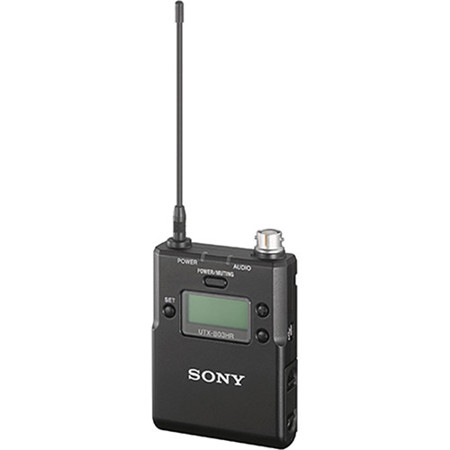

Sony UTX-B03 Digital Wireless Bodypack Transmitter with Hirose Connector, UHF Channels 25/36: 536 to 608MHz

Digital Audio Processing for high quality sound for ENG / EFP productions
The UTX-B03HR body-pack transmitter forms part of a complete UWP-D audio system offering the sound quality of digital audio processing combined with the reliability of analogue FM modulation. It offers wide frequency coverage with up to 72 MHz bandwidth (depending on region) across a wide range of channels, with a choice of models to choose from. Easy-to-use features include a large display, automatic channel setting function, USB connection for power supply and line input availability. The UWP-D Series system provides superb transient response performance for all ENG / EFP production applications.

Easy to use features
Large display, automatic channel setting function, USB connection for power supply and line input availability.

SMC9-4S microphone input connector
The UTX-B03HR is equipped with a SMC9-4S (female) microphone connector designed to withstand the rigors of ENG shooting. A standard broadcast lavalier microphone ECM-77BC or ECM-44BC can be used with the connector.

Large display for ease of use
UTX-B03HR body-pack transmitter features a bright 11.5mm x 27.8mm display, significantly larger than previous UWP models to make them easily readable in all situations.

Compatibility with Sony 800 and UWP Series analogue audio receivers
The UWP-D Series transmitters and receivers are also compatible with Sony's WL-800 Series, UWP Series and Freedom Series, allowing users to switch between different companding modes.

Robust metal body
UTX-B03HR body-pack transmitter is made of strong, durable metal. Metal construction supports reliable use in rough operating conditions.

UWP-D Digital Audio Processing for high quality sound
The UWP-D Series wireless microphone systems uses Sony Digital Audio Processing to improve sound quality and transient response performance compared to conventional analogue wireless systems. It provides superb transient response performance. Analogue companding systems cannot accurately reproduce sounds such as a bell, tee shot or handclap, but Sony Digital Audio Processing reproduces them faithfully.

Automatic channel setting
The receiver will automatically set the transmitter channel by IR Sync.

True Diversity reception system
The UWP-D system achieves exceptionally stable audio signal being delivered from two independent receiver sections within the unit. Optimum signal quality is delivered by the two receivers sections and a comparison circuit constantly pulls the one with the best signal to give dropout free transmission.

USB for external power supply or charging batteries
UTX-B03HR body-pack transmitter has a micro USB terminal for connection to USB external portable power sources allowing the unit to be powered by the camcorder during use, resulting in hassle free power. You can also load NiMH batteries into the bodypack to be charged through the micro USB.

Line Input available
The UWP-D Series system has line input available for added flexibility.
