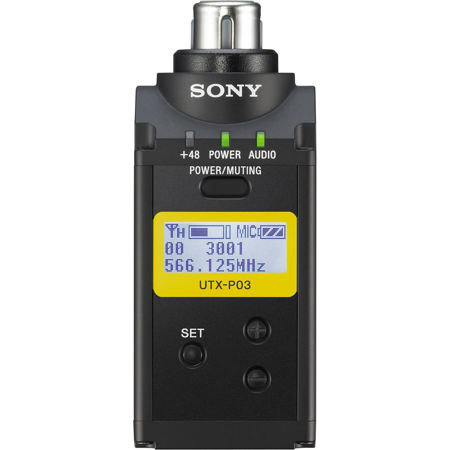

Sony UTX-P03 Digital Wireless Plug-On Transmitter, UHF Channels 25/36: 536 to 608MHz

Digital Audio Processing for high quality sound for ENG / EFP productions
The UTX-P03 XLR package offers wide frequency coverage with up to 72 MHz bandwidth (depending on region) across a wide range of channels, with a choice of models to choose from. Easy-to-use features include a large display, automatic channel setting function, micro USB connection for power supply and line input availability. The UWP-D Series system provides superb transient response performance for all ENG / EFP production applications.

Easy to use features
Large display, automatic channel setting function, micro USB connection for power supply and line input availability.

UWP-D digital audio processing for high quality sound
The UWP-D Series wireless microphone systems uses Sony Digital Audio Processing to improve sound quality and transient response performance compared to conventional analogue wireless systems. It provides superb transient response performance. Analogue companding systems cannot accurately reproduce sounds such as a bell, tee shot or handclap, but Sony Digital Audio Processing reproduces them faithfully.

Fast and easy channel scan
With its Clear Channel Scan, Active Channel Scan function and IR Sync features, the system detects unoccupied channels and selects the most appropriate channel automatically, for fast and easy system setup.

Compatibility with Sony 800 and UWP Series analogue audio receivers
The UWP-D Series transmitters and receivers are also compatible with Sony's WL-800 Series, UWP Series and Freedom Series, allowing users to switch between different companding modes.

USB for external power supply or charging batteries
The UTX-P03 XLR plug-on transmitter has a micro USB terminal for connection to USB external portable power sources allowing the unit to be powered by the camcorder during use, resulting in hassle free power. You can also load NiMH batteries into the transmitter to be charged through the micro USB.

Line Input available
The UWP-D Series system has line input available for added flexibility.

Provides 48V phantom power and connects to any microphone with 3 pin XLR connection
Converts a wired microphone to a wireless microphone via an XLR connector. The plug-on transmitter expands the flexibility of the UWP-D system.

Large display for ease of use
The UTX-P03 XLR plug-on transmitter features a bright 11.5mm x 27.8mm display, significantly larger than previous UWP models to make them easily readable in all situations.

Automatic channel setting mode
The Auto Set channel mode allows the user to find and set available frequencies to use within the operating frequencies of the system. The receiver will automatically set the transmitter channel using the IR Sync feature.

True Diversity reception system
The UWP-D system achieves exceptionally stable audio signal being delivered from two independent receiver sections within the unit. Optimum signal quality is delivered by the two receivers sections and a comparison circuit constantly pulls the one with the best signal to give dropout free transmission.

Headphone output for monitoring
The UWP-D system provides its own headphone output socket, which is particularly useful when working with a camera that does not have a headphone output.

Robust metal body
The UTX-P03 XLR plug-on transmitter is made of strong, durable metal. Metal construction supports reliable use in rough operating conditions.

Variable output level on portable receiver
The system provides variable output level control of +/-12dB, for use with the various input levels of camcorders and DSLR cameras.
