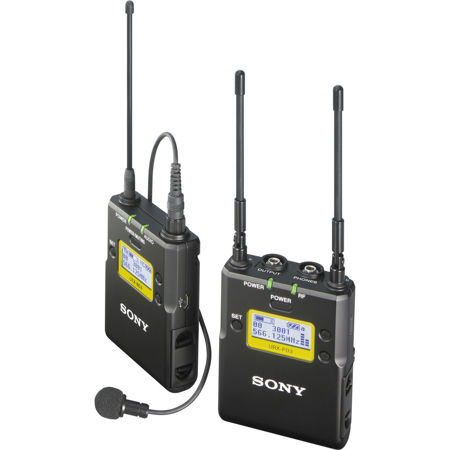

Sony UWP-D11 Integrated Digital Wireless Lavalier Microphone Package, Includes UTX-B03 Bodypack Transmitter, URX-P03 Receiver, UHF Channels 90: 941 to 960MHz

Digital Audio Processing for high quality sound for ENG / EFP productions
The UWP-D11 bodypack wireless microphone package offers the sound quality of digital audio processing combined with the reliability of analogue FM modulation. The package includes the UTX-B03 bodypack transmitter and URX-P03 portable receiver. Also included is a high quality omni-directional lavalier microphone and a range of accessories including windscreen, microphone holder clip, belt-clip and shoe-mount adaptor.

The UWP-D11 package offers wide frequency coverage with up to 72 MHz bandwidth (depending on region) across a wide range of channels, with a choice of models to choose from. Easy-to-use features include a large display and small size receiver to fit neatly on any size camcorder or DSLR camera, automatic channel setting function, headphone output, USB connection for power supply and line input availability. The UWP-D Series system provides superb transient response performance for all ENG / EFP production applications.

Complete package
The UWP-D11 comes as a complete package including the UTX-B03 bodypack transmitter, URX-P03 portable receiver, omni-directional lavalier microphone and everything you need to operate the wireless audio system.

Easy to use features
Automatic channel setting function, headphone output, USB connection for power supply and line input availability.

UWP-D digital audio processing for high quality sound
The UWP-D Series wireless microphone systems uses Sony Digital Audio Processing to improve sound quality and transient response performance compared to conventional analogue wireless systems. It provides superb transient response performance. Analogue companding systems cannot accurately reproduce sounds such as a bell, tee shot or handclap, but Sony Digital Audio Processing reproduces them faithfully.

Automatic channel setting mode
The Auto Set channel mode allows the user to find and set available frequencies to use within the operating frequencies of the system. The receiver will automatically set the transmitter channel using the IR Sync feature.

True Diversity reception system
The UWP-D system achieves exceptionally stable audio signal being delivered from two independent receiver sections within the unit. Optimum signal quality is delivered by the two receivers sections and a comparison circuit constantly pulls the one with the best signal to give dropout free transmission.

Headphone output for monitoring
The UWP-D system provides its own headphone output socket, which is particularly useful when working with a camera that does not have a headphone output.

Robust metal body
The UTX-B03 bodypack transmitter and URX-P03 portable receiver are made of strong, durable metal. Metal construction supports reliable use in rough operating conditions.

Line Input available
The UWP-D Series system has line input available for added flexibility.

Large display and small size receiver
The URX-P03 portable receiver is designed to fit even small camcorders or DSLR cameras, with dimensions of 63mm x 82mm x 23.8mm (WxHxD) and a weight of approx. 176 g (including batteries). The transmitters and receivers also feature a bright 11.5mm x 27.8mm display, significantly larger than previous UWP models to make them easily readable in all situations.

Fast and easy channel scan
With its Clear Channel Scan, Active Channel Scan function and IR Sync features, the system detects unoccupied channels and selects the most appropriate channel automatically, for fast and easy system setup.

Compatibility with Sony 800 and UWP Series analogue audio receivers
The UWP-D Series transmitters and receivers are also compatible with Sony's WL-800 Series, UWP Series and Freedom Series, allowing users to switch between different companding modes.

USB for external power supply or charging batteries
The UWP-D series' components have a micro USB terminal for connection to USB external portable power sources allowing the unit to be powered by the camcorder during use, resulting in hassle free power. You can also load NiMH batteries into the bodypack to be charged through the micro USB.

Variable output level on portable receiver
The system provides variable output level control of +/-12dB, for use with the various input levels of camcorders and DSLR cameras.
