Sony UWP-D12 Integrated Digital Wireless Handheld Microphone Package, Includes URX-P03 Receiver, UHF Channels 25/36: 536 to 608MHz

Digital Audio Processing for high quality sound for ENG / EFP productions

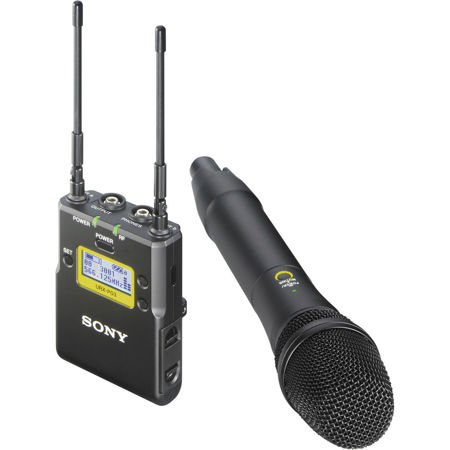

The UWP-D12 wireless microphone package offers a complete UWP-D audio system which offers the sound quality of digital audio processing combined with the reliability of analog FM modulation. The package includes the UTX-M03 handheld microphone transmitter and URX-P03 portable receiver. Also included are a range of accessories including microphone holder, microphone belt-clip and shoe-mount adaptor.

The UWP-D12 package offers wide frequency coverage with up to 72 MHz bandwidth (depending on region) across a wide range of channels, with a choice of models to choose from. Easy-to-use features include a large display and small size receiver to fit neatly on any size camcorder or DSLR camera, automatic channel setting function and headphone output. The UWP-D Series system provides superb transient response performance for all ENG / EFP production applications.

Complete package
The UWP-D12 comes as a complete package including UTX-M03 handheld microphone transmitter, URX-P03 portable receiver and everything you need to operate the wireless audio system.

Option to use interchangeable heads with handheld microphone
The UTX-M03 handheld microphone transmitter is provided with a Sony uni-directional dynamic capsule. The microphone transmitter also gives the option of using interchangeable heads with over 40 different capsules from various manufacturers available that can be mounted.

Easy to use features
The transmitter and receiver both feature a large display for ease of use, while the small size receiver fits neatly on any size camcorder or DSLR camera. Also featured: automatic channel setting function and headphone output.

UWP-D digital audio processing for high quality sound
The UWP-D Series wireless microphone systems uses Sony Digital Audio Processing to improve sound quality and transient response performance compared to conventional analogue wireless systems. It provides superb transient response performance. Analogue companding systems cannot accurately reproduce sounds such as a bell, tee shot or handclap, but Sony Digital Audio Processing reproduces them faithfully.

Automatic channel setting mode
The Auto Set channel mode allows the user to find and set available frequencies to use within the operating frequencies of the system. The receiver will automatically set the transmitter channel using the IR Sync feature.

True Diversity reception system
The UWP-D system achieves exceptionally stable audio signal being delivered from two independent receiver sections within the unit. Optimum signal quality is delivered by the two receivers sections and a comparison circuit constantly pulls the one with the best signal to give dropout free transmission.

Headphone output for monitoring
The UWP-D system provides its own headphone output socket, which is particularly useful when working with a camera that does not have a headphone output.

Rechargeable batteries
Rechargeable battery operation is available with Ni-MH batteries.

Variable output level on portable receiver
The system provides variable output level control of +/-12dB, for use with the various input levels of camcorders and DSLR cameras.

Large display and small size receiver
The URX-P03 portable receiver is designed to fit even small camcorders or DSLR cameras, with dimensions of 63mm x 82mm x 23.8mm (WxHxD) and a weight of approx. 176 g (including batteries). The transmitters and receivers also feature a bright 11.5mm x 27.8mm display, significantly larger than previous UWP models to make them easily readable in all situations.

Fast and easy channel scan
With its Clear Channel Scan, Active Channel Scan function and IR Sync features, the system detects unoccupied channels and selects the most appropriate channel automatically, for fast and easy system setup.

Compatibility with Sony 800 and UWP Series analogue audio receivers
The UWP-D Series transmitters and receivers are also compatible with Sony's WL-800 Series, UWP Series and Freedom Series, allowing users to switch between different companding modes.

Robust metal body
The UTX-M03 handheld uni-directional microphone transmitter and URX-P03 portable receiver are made of strong, durable metal. Metal construction supports reliable use in rough operating conditions.
