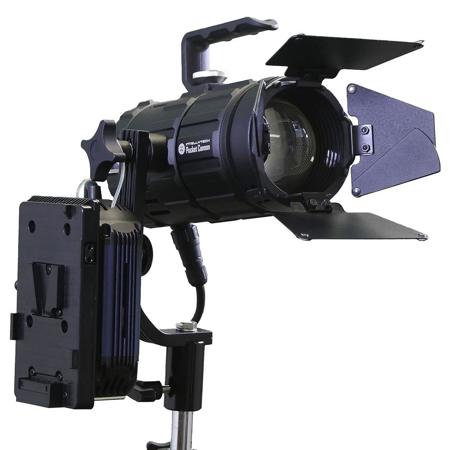

Intellytech Pocket Cannon Focusable LED Daylight Fresnel V-Mount & NPF Kit

SKU: ITL173023

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the light spread range of the Pocket Cannon Focusable LED Daylight Fresnel V-Mount & NPF Kit?

The light spread range of the Pocket Cannon is adjustable from 20-160 degrees, allowing for precise control over your lighting.

What is the power consumption of the Pocket Cannon?

Despite its powerful output equivalent to 400W-500W hot lights, the Pocket Cannon consumes only 30 Watts of power.

What materials is the Pocket Cannon made of?

The Pocket Cannon is housed in a durable, lightweight aluminum body, designed for years of use in a professional environment.

Does the Pocket Cannon make any noise during operation?

No, the Pocket Cannon operates silently due to its fanless design and built-in heat sink for passive cooling.

What power options are available for the Pocket Cannon?

The Pocket Cannon can be powered via AC or DC. It comes with a universal 100-240V AC adapter, a V-mount battery plate, and a Sony NP-F (L-Series) to V-mount battery converter.

Reviews about this item

Review Summary

2019-01-18T01:10:36

Rated 4 out of 5

Intellytech pocket cannon

This light is a great addition to my collection. It is not the brightest light by far but what can you expect from a 30w LED. What I love about it is that it can be battery powered and is very portable. For the amount of light it produces it is very useable in dark situations.

Michael H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Intellytech Pocket Cannon Fresnel Kit Specifications

General

General

Jump to...
  • Color Temperature

    Daylight

  • Specific Color Temperature

    5600K

  • Beam Angle

    20 to 160 Degree

Light Fixture

Jump to...
  • Fixture Type

    Fresnel

  • Number of Heads/Lights

    1

  • Photometrics

    20° at 5600K:
    719 fc / 7743 Lux at 3.3' / 1 m
    190 fc / 2050 Lux at 6.6' / 2 m
    86 fc / 920 Lux at 9.8' / 3 m
    37 fc / 398 Lux at 13.1' / 4 m
    50° at 5600K:
    266 fc / 2860 Lux at 3.3' / 1 m
    68 fc / 731 Lux at 6.6' / 2 m
    32 fc / 349 Lux at 9.8' / 3 m
    14 fc / 152 Lux at 13.1' / 4 m

  • Dimming

    Built-In Dimmer / Controller Included

  • Color Accuracy Standard

    CRI 97
    TLCI 97

  • Power Source

    AC/DC

  • Voltage

    100v-240v

  • Power Consumption

    30W

Mounting

Jump to...
  • Umbrella Mount

    No

Battery

Jump to...
  • Battery Connection

    V Mount Included, NP Mount Included

Physical Details

Jump to...
  • Dimensions

    7.5 x 4 x 4" / 19.1 x 10.2 x 10.2 cm (Fixture)

  • UPC Code

    810019420306

3 Accessories for Intellytech Pocket Cannon Focusable LED Daylight Fresnel V-Mount & NPF Kit

  • All Accessories (3)
  • Batteries & Power Supply (3)

About Intellytech Pocket Cannon Fresnel Kit

Why settle for less when you can have the best of both worlds with the Pocket Cannon Focusable LED Daylight Fresnel V-Mount & NPF Kit This high-quality, versatile, and portable lighting solution is designed to meet all your photography and videography needs with ease and efficiency.

The Pocket Cannon offers immense control, allowing you to shape light with surgical precision. With its focus knob, you can adjust the light's spread from 20-50 degrees when the glass lens is attached, and 60-160 degrees when the lens is removed. The removable, slotted barn-doors slide on and off easily, enabling you to further sculpt the light according to your requirements.

Despite its compact size, the Pocket Cannon delivers big on output. With the glass lens attached, it produces bright, direct light equivalent to 400W-500W hot lights, while consuming only 30 Watts of power. The powerful LED, coupled with the pronounced glass lens, makes this unit brighter than most other LEDs consuming more than 60 Watts of power.

The Pocket Cannon is not just about power and control, it's also about versatility. It's focusable from 20-160 degrees via the knob located on the rear of the housing. With the lens attached, it can focus from 20-50 degrees for bright, direct light, and from 60-160 degrees for a soft, wide-reaching cast when the lens is removed.

The Pocket Cannon is designed for silent operation, thanks to its fanless design and built-in heat sink for passive cooling. The durable metal body housing is made from strong, lightweight, and attractive aluminum, designed for years of use in a professional environment. Both the handle and yoke can be removed by hand for increased portability and different mounting options.

Powering the Pocket Cannon is a breeze, with a variety of power options available. It can be powered via AC or DC out of the box, with all necessary accessories included. Each Pocket Cannon comes with a universal 100-240V AC adapter, V-mount battery plate, and Sony NP-F (L-Series) to V-mount battery converter.

The Pocket Cannon also features an external controller, allowing you to change dimmer levels or swap batteries without taking the light down from a stand. The external controller also provides a lower center of gravity when mounted below the light. For users wanting to have the light and controller mounted together, that can also be done by sliding the controller onto the light's yoke.

Whether shooting in spot or flood mode, the Pocket Cannon provides a high level of output for such a small, portable fixture. It's fitted with a super thick glass lens to amplify the light, and produces a CRI/TLCI of 97+. Plus, it's flicker-free and tested at 3,000 fps, making it ideal for shooting slow motion. The voltage is universal and works from 100V-240V.

In conclusion, the Pocket Cannon Focusable LED Daylight Fresnel V-Mount & NPF Kit is a durable, high-quality, versatile, and efficient lighting solution that offers immense control, big output, and a variety of power options, making it a must-have for all your photography and videography needs.

Intellytech Pocket Cannon Fresnel Kit Features

  • High-quality, versatile LED lighting kit for professional photography and videography
  • Adjustable light spread from 20-160 degrees for precise control
  • Powerful output equivalent to 400W-500W hot lights, consuming only 30 Watts
  • Durable, lightweight aluminum body with removable handle and yoke for portability
  • Silent operation with built-in heat sink for passive cooling
  • Includes universal 100-240V AC adapter, V-mount battery plate, and Sony NP-F to V-mount battery converter for versatile power options

Key Features

  • Achieve superior color accuracy with this daylight LED Fresnel, boasting a CRI/TLCI of 97 for true-to-life colors.
  • Enjoy precise dimming control with the built-in dimmer, adjusting the light output to suit any scene perfectly.
  • This focusable LED light offers adjustable beam angles (20° to 160°), ideal for interviews and product shots.
  • Experience versatile power options with V-Mount and NPF battery support for on-location or studio shoots.
  • The Pocket Cannon Fresnel ensures efficient heat management, maintaining stable performance during long shoots.
  • Portable and powerful, this 30W LED Fresnel kit includes barn doors and a carrying case for easy transport.

What's in the box:

  • Pocket Cannon Daylight Fixture
  • External Controller with V-Mount Battery Plate
  • NPF/V-Mount Battery Converter
  • Barn-Doors
  • AC Adapter
  • Molded Carrying Case
  • Intellytech 1 Year Warranty
