J5 Create JCD389 Ultra Drive Kit USB-C Multi-Display Modular Dock with 5 Magnetic Kits

SKU: J5CJCD389

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

J5 Create JCD389 Specifications

Hardware

Hardware

Jump to...
  • Host Connector

    Main Body: USB-C Male
    Magnetic Kits: USB-C Male

  • Video Output

    Main Body:
    HDMI Female

    Magnetic Kits:
    HDMI Female
    Mini DisplayPort Female
    VGA Female

  • Power Source

    Bus-powered or self-Powered

  • Network Interface

    Magnetic Kits: RJ45 (Gigabit Ethernet)

  • Audio Supported

    Yes

  • Ports

    Main Body:
    USB-C Power Delivery 3.0
    USB-C 3.1 Gen 1
    2x USB 3.1 Gen 1 Type-A
    4K HDMI

    Magnetic Kits (Stand-Alone Mini Adapters):
    USB-C To 4K HDMI
    USB-C To 4K Mini DisplayPort
    USB-C To VGA
    USB-C To Gigabit Ethernet
    USB-C To SD/MicroSD 3.0 Memory Card Reader & Writer

Performance

Jump to...
  • Maximum Display Resolution

    Main Body: 3840 x 2160
    Magnetic Kits: 3840 x 2160

  • Maximum Display Refresh Rate

    Main Body: 30 Hz
    Magnetic Kits: 60 Hz

  • Maximum Data Transfer Rate

    Main Body: 5 Gbps
    Magnetic Kits: 5 Gbps

  • Displays Supported

    Main Body: 1
    Magnetic Kits: 3 (when used with the main body and connected to a compatible MacBook)

  • Compatible Networks

    Magnetic Kits: 10 / 100 / 1000 Mbps

  • Audio Channel

    Main Body: 2.1 via HDMI
    Magnetic Kits: 2.1 via HDMI/ mini DisplayPort

  • Power Delivery

    Up to 100W via USB-C

  • Power Consumption

    <= 600 mA

  • Input Current

    Up to 5A

  • Input Voltage

    Up to 20V

  • Output Current

    Up to 4.75A

  • Output Voltage

    Up to 20V

Environmental

Jump to...
  • Storage Temperature

    14 Degree F to 149 Degree F (-10 Degree C to 65 Degree C)

  • Storage Humidity

    < 85% non-condensing

  • Operating Temperature

    32 Degree F to 118 Degree F (0 Degree C to 48 Degree C)

  • Operating Humidity

    < 85% non-condensing

Physical

Jump to...
  • Compatibility

    MacBook Pro 2016-2019 / MacBook Air 2018-2019 / 12" MacBook 2015 or later

  • Color

    Silver, White

  • Enclosure Type

    Main Body: Aluminum
    Magnetic Kits: ABS Plastic

  • Dimensions (W x H x D)

    Main Body: 1.34 x 0.51 x 3.86" (34 x 13 x 98mm)
    Magnetic Kits: 1.34 x 0.51 x 0.83" (34 x 13 x 21mm)

  • Weight

    Main Body: 1.69 oz (48g)
    Magnetic Kits: 0.42 oz (12g)

  • UPC Code

    847626003431

About J5 Create JCD389

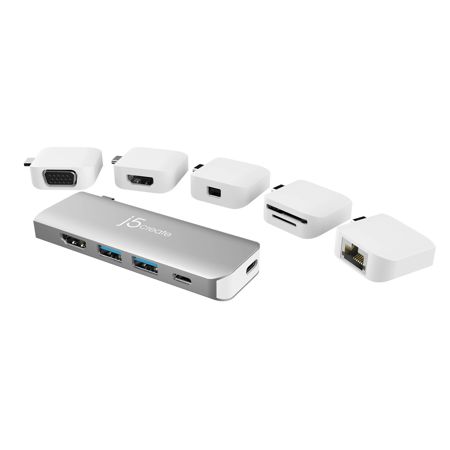

The award-winning USB-C Multi-Display Modular Dock is a versatile mini docking station featuring 5 detachable magnetic kits along with the main body for 12 combinations of configurations for video, data storage and charging. With the JCD389, you can easily create a triple display setup from your MacBook Pro.

The 5 detachable magnetic kits are stand-alone mini adapters that allow you to expand even further with additional functions. This modular dock is a perfect all-in-one solution for you to connect your USB-C laptops to any device whether in the office, at home or on the road by switching the modules accordingly.

A hard-shell carrying case is also included to eliminate the hassle of carrying and sorting multiple adapters and cables, making the modular dock a perfect travel accessory

Modular Design: Expand Your World
Maximizing your MacBook Pro functionality has never been easier.

Can Be Used Separately
Each kit can work alone on a USB-C equipped device and can work simultaneously on one laptop together with the main body.

Magnetic: Connection Kits
Each kit can work alone on a USB-C equipped device and can work simultaneously on one laptop together with the main body.

12 Combinations of Magnetic Connection Kits
Comes with 5 magnetic changeable heads, each of which can be used separately.

Dual 4K Monitors
Comes with 5 magnetic changeable heads, each of which can be used separately.

USB-C Power Delivery 100W Pass-through
Charge your MacBook Pro & MacBook Air for maximum efficiency.

USB-C to Gigabit Ethernet
Compatible with 10/100/1000 Mbps network connection. Connect to the LAN port on either side.

USB-C to SD/ microSD Card Reader
Easily manage and backup your data from your camera, video recorder and more.

High Speed USB 3.0 Hub
Easily connect an external mouse, keyboard, flash drive, etc.

Travel-Friendly Carrying Case
Conveniently store your UltraDrive Kit in this custom designed case.

Compatible with MacBook Pro 2016 and up / MacBook Air 2018 and up
Plug and play, no need to install drivers.

J5 Create JCD389 Features

  • Compatible with MacBook Pro 2016-2019 / MacBook Air 2018-2019 / 12" MacBook 2015 or later

Key Features

  • Compatible with MacBook Pro 2016-2019 / MacBook Air 2018-2019 / 12" MacBook 2015 or later

What's in the box:

  • JCD389 Ultra Drive USB-C Multi-Display Modular Dock
  • Hard Carrying Case
  • Quick Installation Guide
  • J5 Create 1 Year Limited Warranty
