JBL AC195 10" 2-Way Full-Range Passive Loudspeaker System, Black
JBL AC195: Picture 1 thumbnail
JBL AC195: Picture 2 thumbnail
JBL AC195: Picture 3 thumbnail
JBL AC195: Picture 4 thumbnail
See all JBL items
33% Off

JBL AC195 10" 2-Way Full-Range Passive Loudspeaker System, Black

SKU: JBAC195 MFR: AC195
Be the first to review this itemAsk a Question
$1,015.00
$1,520.00
Save: $505 (33%)
OR
$85/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this JBL PA speaker, perfect for live sound.
  • This passive PA speaker system delivers 300W power for clear, robust sound.
  • Get wide, even coverage with the 90° x 50° dispersion of this PA speaker.
  • Durable plywood enclosure ensures this PA speaker withstands rigorous use.
  • Versatile mounting options make this PA speaker ideal for any venue setup.
  • Enjoy exceptional sound quality with this portable PA speaker's 10" woofer.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

JBL AC195 Specifications

  • Finish

    Textured black paint finish

  • Active or Passive

    Passive

  • Frequency Response (+/-3 dB)

    85 Hz to 18 kHz

  • Frequency Range (-10 dB)

    68 Hz to 20 kHz

  • Power Capacity

    300 W (1200 W peak), 2 Hours: 200 W/400 W/800 W (Continuous/Program/Peak)
    System Power Rating (AES): 300 W (1200 W peak), 2 hours

  • Maximum Sound Pressure Level (SPL)

    3.2' (1m): 118 dB (124 dB peak)

  • Nominal Sensitivity

    1 W @ 3.2' (1m): 95 dB

  • Impedance

    8 Ohms

  • Coverage Pattern

    90 x 50 Degree (H x V)

  • Crossover

    1.8 kHz

  • Low Frequency Driver

    1x 10" (254mm) woofer (P/N: 5050692) with 2.5" (63.5mm) voice-coil

  • High Frequency Driver

    1x 2408H-2 driver with 1" (25.4mm) exit/ 1.5" (38mm) voice-coil

  • Enclosure Material

    5/8" (15mm) multi-ply hardwood plywood

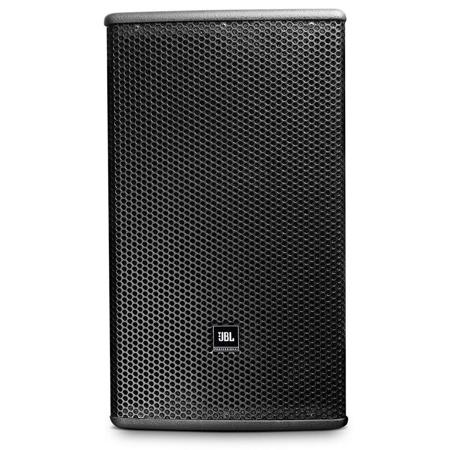

  • Grille

    Powder coated, 0.05" (1.5 mm) perforated steel, with acoustically transparent black foam backing

  • Input Connections

    Dual Neutrik NL4MP connectors plus covered barrier trip terminals

  • Mounting

    14x M10 threaded suspension points
    4x M10 for wall mount bracket

  • Dimensions

    21 x 12.2 x 12.9" (535 x 310 x 329mm)

  • Weight

    28.8 lb (13.1kg)

  • UPC Code

    691991001260

About JBL AC195

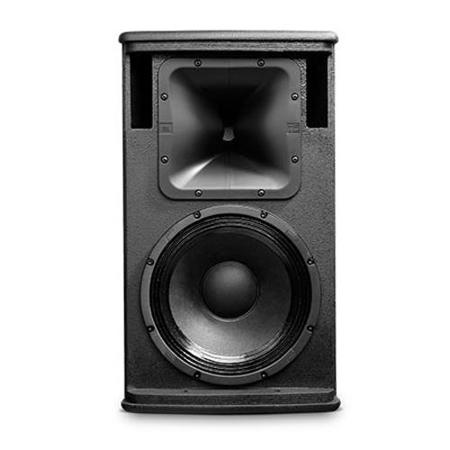

AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10") low frequency driver and one 25 mm (1") exit/35 mm (1.5") voice-coil compression driver. The rotatable PT Progressive Transition waveguide provides 90 Degree by 50 Degree coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response.

The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount or similar type mounting.

AC195 is part of JBL's AE Application Engineered Series, a versatil e family of loudspeakers for a wide variety of fixed installation applications

Applications

• Performing Spaces
• Clubs & Bars
• Houses of Worship
• Multi Media Spaces
• Retail & Hospitality Spaces
• Presentation Suites
• Educational Facilities

JBL AC195 Features

  • Compact enclosure
  • 258 mm (10") LF transducer
  • 90 Degree x 50 Degree Progressive Transition Field Rotatable Waveguide with a 25 mm (1") exit 35mm (1.5") voice-coil compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience pristine audio with this JBL PA speaker, perfect for live sound.
  • This passive PA speaker system delivers 300W power for clear, robust sound.
  • Get wide, even coverage with the 90° x 50° dispersion of this PA speaker.
  • Durable plywood enclosure ensures this PA speaker withstands rigorous use.
  • Versatile mounting options make this PA speaker ideal for any venue setup.
  • Enjoy exceptional sound quality with this portable PA speaker's 10" woofer.

What's in the box:

  • AC195 10 " 2-Way Full-Range Passive Loudspeaker System (Black)
  • JBL 5 Year Limited Warranty
