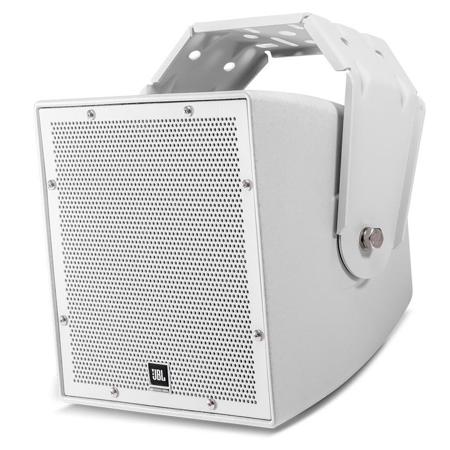

JBL AWC62 6.5" Compact 2-Way Coaxial Loudspeaker, Light Gray
JBL AWC62: Picture 1 thumbnail
JBL AWC62: Picture 2 thumbnail
JBL AWC62: Picture 3 thumbnail
See all JBL items

JBL AWC62 6.5" Compact 2-Way Coaxial Loudspeaker, Light Gray

SKU: JBAWC62 MFR: AWC62
Be the first to review this itemAsk a Question
$475.00
OR
$80/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with the JBL AWC62 coaxial loudspeaker.
  • Achieve optimal audio coverage with the 110 x 110 degree coverage pattern.
  • This durable speaker is weather-treated, perfect for outdoor installations.
  • Enjoy flexible power options with 70V/100V transformer taps for audio.
  • The light gray finish of this compact speaker blends seamlessly anywhere.
  • Easy wiring with covered barrier strip terminals for secure connections.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$39.99
2-Year Adorama Protect$69.99
3-Year Adorama Protect$79.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

JBL AWC62 Specifications

  • Finish

    Light Gray

  • Frequency Range (-10 dB)

    70 Hz - 18 kHz

  • Frequency Response (+/-3 dB)

    100 Hz - 16 kHz

  • Coverage Pattern

    110 Degree x 110 Degree

  • Directivity Factor

    7.2 (1 k - 16 kHz)

  • Directivity Index (DI)

    7.9 dB (1 k - 16 kHz)

  • Long-Term System Power Rating (IEC)

    175 W 2 hrs
    120 W 100 hrs

  • Sensitivity (2.83V @ 1m)

    92 dB (Ave. 100 Hz - 18 kHz)

  • Maximum SPL

    Direct 8 Ohm: 114 dB (peaks of 120 dB)
    120 W Tap: 112 dB

  • Crossover Network

    1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF

  • Nominal Impedance

    8 ohms

  • Transformer Taps

    70V: 120W, 60W, 30W, 15W
    100V: 120W, 60W, 30W

  • Low Frequency Driver

    Kevlar-reinforced cone with weather treatment, 38 mm (1.5") voice coil.

  • High Frequency Driver

    25 mm (1") diaphragm and voice coil diameter

  • HF Driver Protection

    Minimum audibility SonicGuard HF overload protection

  • Enclosure Material

    ABS with Glass enclosure

  • Attachment

    Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

  • Grille

    Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.

  • Input Connection

    CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round- jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36").

  • Environmental

    IP56 per IEC529, with a minimum 5 Degree downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).

  • Dimensions

    Cabinet: 10.2 x 10.2 x 10.1" (259 x 259 x 255mm)
    Including gland nut: 11.4" (288mm)
    Including bracket extending to back: 12.2" (309mm)

  • Weight

    15 lb (6.8kg)
    with U-bracket: 17 lb (7.7kg)

  • UPC Code

    691991006029

About JBL AWC62

Overcome the challenges of outdoor audio installations with the AWC62 6.5" Compact 2-Way Coaxial Loudspeaker in Light Gray. This durable and high-quality loudspeaker, designed by the reputable audio brand JBL, is built to withstand harsh weather conditions, making it a reliable choice for a variety of outdoor venues.

Engineered with a powerful coaxial driver, this 2-way loudspeaker delivers full-range sound that's perfect for both speech and music. Whether you're setting up a public address system at a sports facility, enhancing the atmosphere at a themed entertainment venue, or providing background music at a water park, this stylish loudspeaker ensures clear and vibrant sound reproduction.

The AWC62 is not just for outdoor use; it's also suitable for a wide range of indoor venues. From skating rinks to swimming pools, its compact design and easy-to-install bare wire terminals make it a versatile choice for any sound reinforcement needs.

With its 70V power rating and the backing of JBL's renowned brand reputation, the AWC62 6.5" Compact 2-Way Coaxial Loudspeaker offers a powerful, reliable, and stylish solution for all your audio installation needs.

JBL AWC62 Features

  • Highly weather-resistant IP56 rating
  • Consistent 110 Degree x 110 Degree broadband pattern control
  • Components: 165 mm (6.5") woofer with Kevlar-reinforced cone and 38 mm (1.5") voice coil & 25 mm (1") exit compression driver
  • Extraordinary clarity for speech, with extended frequency response for music
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange
  • 175 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability
  • High-power passive crossover network
  • Overload protection
  • 70 Hz - 18 kHz frequency response
  • 120 Watt 70V/100V multi-tap (built-in transformer) or direct 8 Ohm low-impedance

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior sound quality with the JBL AWC62 coaxial loudspeaker.
  • Achieve optimal audio coverage with the 110 x 110 degree coverage pattern.
  • This durable speaker is weather-treated, perfect for outdoor installations.
  • Enjoy flexible power options with 70V/100V transformer taps for audio.
  • The light gray finish of this compact speaker blends seamlessly anywhere.
  • Easy wiring with covered barrier strip terminals for secure connections.

What's in the box:

  • AWC62 6.5 " Compact 2-Way Coaxial Loudspeaker (Light Gray)
  • U Bracket
  • JBL 5 Year Limited Warranty
