20% Off

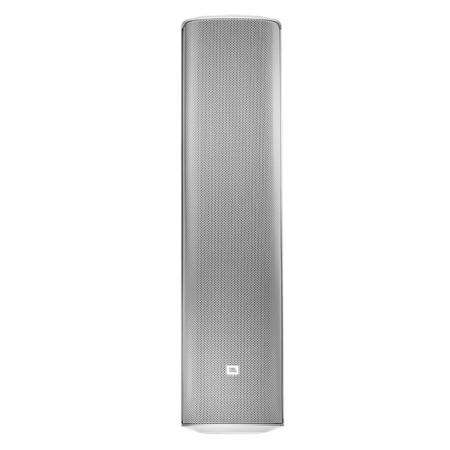

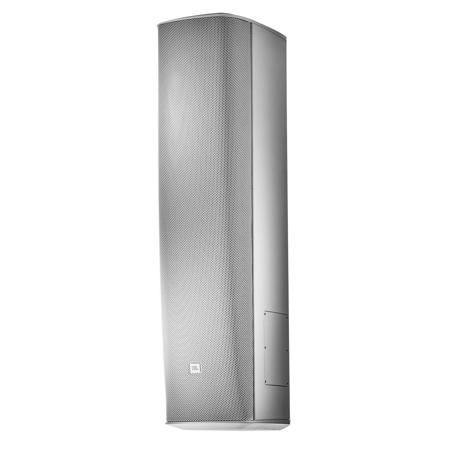

JBL CBT 1000 Two-Way Line Array Column Loudspeaker with Constant Beamwidth Technology, White

SKU: JBCBT1000WH MFR: CBT 1000-WH
Earn VIP Reward Points

Key Features

  • Experience superior audio with this JBL line array column loudspeaker.
  • Achieve exceptional sound clarity with constant beamwidth technology speakers.
  • This white speaker seamlessly blends into any commercial presentation space.
  • Enjoy flexible mounting with included swivel/tilt wall-mount bracket.
  • Benefit from durable construction, ideal for both indoor and outdoor audio.
  • Get powerful sound with 1500W capacity for impactful audio solutions.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JBL CBT 1000 Specifications

  • Finish

    White

  • Frequency Response (-10 dB)

    45 Hz to 20 kHz

  • Power Capacity

    1500 W (6000 W peak), 2 hours
    1000 W (4000 W peak), 100 hours

  • Maximum Sound Pressure Level (SPL)

    Highest Directivity Setting:
    Point pattern up, Point pattern down with Speech Voicing:
    131 dB continuous average pink noise
    134 dB continuous program
    137 dB peak
    Point pattern up, Point pattern down with Music Voicing:
    127 dB continuous average pink noise
    130 dB continuous program
    133 dB peak

  • Maximum Sound Pressure Level (Contd.)

    Lowest Directivity Setting:
    Medium pattern up, Downfill pattern down with Speech Voicing:
    128 dB continuous average pink noise
    131 dB continuous program
    134 dB peak
    Medium pattern up, Downfill pattern down with Music Voicing:
    124 dB continuous average pink noise
    127 dB continuous program
    130 dB peak

  • Sensitivity

    Measured at 2.83 V @ 3.3' (1 m):
    102 dB at highest sensitivity setting (Point pattern up, Point pattern down, Speech voicing, in free space)
    95 dB at lowest sensitivity setting (Medium pattern up, Downfill pattern down, Music voicing in free space)

  • Nominal Impedance

    4 Ohms (4 Ohms above 1 kHz; 8 Ohms below 800 Hz)

  • Low Frequency Driver

    6x 6.5" (165 mm) driver, lightweight neodymium motors
    2" (50 mm) diameter voice coils
    Copper-capped pole tips to minimize flux modulation and linearize inductance
    0.63" (16 mm) long coil for high linear drive and high power handling
    Damped, blended textile surround
    Coated cones for moisture, UV and salt resistance
    Magnetically shielded

  • High Frequency Driver

    24 x 1" (25 mm)
    Neodymium, encased magnet, and coated diaphragm for moisture, UV, and salt resistance

  • Vertical Coverage Angle

    Effective beyond -6 dB coverage angles (angles are in reference to cabinet aiming axis)

    Pattern Up Settings:
    Point: -6 dB @ +7 Degree , -12 dB @ +12 Degree
    Tight: -6 dB @ +9 Degree , -12 dB @ +15 Degree
    Narrow: -6 dB @ +10 Degree , -12 dB @ +20 Degree
    Medium: -6 dB @ +13 Degree , -12 dB @ +24 Degree

  • Vertical Coverage Angle (Contd.)

    Pattern Down Settings:
    Point: -6 dB @ -7 Degree , -12 dB @ -12 Degree
    Narrow: -6 dB @ -10 Degree , -12 dB @ -20 Degree
    Broad: -6 dB @ -17 Degree , -12 dB @ -28 Degree
    Downfill: -6 dB @ -20 Degree , -12 dB @ -35 Degree

  • Horizontal Coverage Angle

    Tapered Horizontal Waveguide continuously variable:
    Long-Throw (Top) Section: 100 Degree
    Middle Section: 130 Degree
    Short-Throw (Bottom) Section: 160 Degree

  • Recommended Protective High-Pass

    35 Hz, 24 dB/oct or greater

  • Enclosure Material

    Fiberglass reinforced ABS cabinet, powder coated 1050 aluminum grille

  • Outdoor Use

    IP-55 rated, per IEC529, when installed with optional MTC-PC2 cover
    Exceeds Mil Spec 810 for humidity, temperature and UV, ASTM G85 for acid-air/salt-spray (200 hours)

  • Mounting

    14x M8 inserts on back panel (20 mm deep) for use with swivel (pan)/tilt bracket
    Forged-shoulder steel eyebolts, swivel rings, and after-market third-party brackets
    4x M8 inserts on top and 4 on bottom of cabinet end-caps

  • Wall Mount Bracket

    +/-45 Degree left-right swivel aiming (at no up/down tilt)
    +/-15 Degree tilt in 1 Degree fixed increment points

  • Dimensions

    40.2 x 9.9 x 13.6" (1020 x 250 x 345mm)

  • Weight

    54 lb (24.5kg)

  • UPC Code

    691991005695

About JBL CBT 1000

Find the perfect solution for your audio needs with the CBT 1000 Two-Way Line Array Column Loudspeaker, featuring advanced Constant Beamwidth Technology. This white, sleekly designed loudspeaker is an innovative addition to any sound system, offering unparalleled pattern control consistency.

The CBT 1000 is engineered with adjustable vertical coverage, allowing you to tailor the sound projection to your specific space. This feature, combined with a tapered horizontal waveguide, enhances the versatility of the loudspeaker, enabling it to accurately map to the room geometry. Whether you're setting up in a small studio or a large auditorium, the CBT 1000 ensures optimal sound distribution.

Expanding upon our successful Constant Beamwidth Technology, the CBT 1000 represents the next-generation in audio technology. This line array column loudspeaker delivers a consistent, high-quality sound experience, making it an essential component for any professional audio setup.

Experience the difference with the CBT 1000 Two-Way Line Array Column Loudspeaker. Its advanced features and superior sound quality make it a standout choice for those seeking to enhance their audio equipment.

JBL CBT 1000 Features

  • Asymmetrical vertical coverage sends more sound toward far area of room to make front-to-back sound levels more consistent
  • Components: Twenty-four (24) 25 mm (1") extra-high-power soft dome tweeters & six (6) 165 mm (6-1/2") high-excursion LF drivers arranged coaxially
  • Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out of coverage lobing
  • Vertical pattern coverage is individually adjustable through a range of four (4) "Pattern Up" angles and four (4) "Pattern Down" coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing
  • Patent-pending Tapered Horizontal Waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw) delivering superior coverage in both the front and rear corners of a room
  • Single-speaker room coverage at high SPL, with little over-splash and strong bass response down to below 40 Hz
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode
  • Swivel (pan)/tilt wall bracket included

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior audio with this JBL line array column loudspeaker.
  • Achieve exceptional sound clarity with constant beamwidth technology speakers.
  • This white speaker seamlessly blends into any commercial presentation space.
  • Enjoy flexible mounting with included swivel/tilt wall-mount bracket.
  • Benefit from durable construction, ideal for both indoor and outdoor audio.
  • Get powerful sound with 1500W capacity for impactful audio solutions.

What's in the box:

  • CBT 1000 Two-Way Line Array Column Loudspeaker with Constant Beamwidth Technology (White)
  • Two-Piece Swivel (pan)/Tilt Wall-Mount Bracket
  • JBL 5 Year Limited Warranty on Speaker
