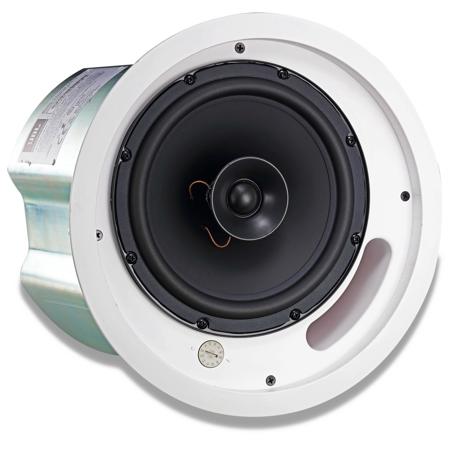

JBL Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker, White, Single
See all JBL items

JBL Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker, White, Pair

SKU: JBCON18CT
Be the first to review this item

This item is no longer available.

Recommended Alternatives

JBL LCT 81C/T: Picture 1 regular
JBL LCT 81C/T 2x2' 40W Low-Profile Lay-In Ceiling Tile Loudspeaker, Pair
$320.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker stand out?

The Control 18C/T stands out due to its high-quality sound production in both high and low-frequency ranges, easy installation process, and the durability provided by its UV-resistant materials. It's also crafted by JBL, a reputable brand in the audio equipment industry.

What kind of applications is the Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker suitable for?

This loudspeaker is suitable for a wide array of medium to high volume applications. It's an excellent choice for music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, and educational facilities.

What components does the Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker feature?

The Control 18C/T features an 8-inch high-tech cone driver and a 25mm soft-dome liquid-cooled tweeter. These are housed in a vented, paintable baffle made from UV-resistant UL94-V0 and UL94-5HB materials.

Is the Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker easy to install?

Yes, the loudspeaker comes with a pre-attached blind-mount backcan, which simplifies the installation process. This makes it an ideal choice for both professionals and DIY enthusiasts.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

JBL Control 18C/T Specifications

  • Finish

    White

  • Frequency Range (-10 dB)

    58 Hz - 20 kHz

  • Frequency Response (+/-3 dB)

    80 Hz - 16 kHz

  • Power Capacity (at low-Z)

    180 Watts Continuous Program Power

  • Maxium Input Voltage

    31.8 V RMS (2hrs), 63.6 V peak

  • Nominal Sensitivity

    92 dB

  • Nominal Coverage Angle

    90 Degree conical coverage

  • Directivity Factor (Q)

    6

  • Directivity Index (DI)

    7.8 dB

  • Rated Maximum SPL

    112 dB @ 1 m (3.3') average, 118 dB peak

  • Nominal Impedance

    8 ohms (in direct/bypass 8 Ohm setting)

  • Transformer Taps

    60 W, 30 W, 15 W @ 70V or 100V (plus 7.5 W @ 70V only)

  • Recommended Protective High-Pass

    45 Hz high-pass (24 dB/oct) for 8ohm operation, 60 Hz for 60 W tap, 50 Hz for 30 W, 15 W & 7.5 W tap setting

  • Crossover Network

    12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver

  • Low Frequency Driver

    200 mm (8") with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil

  • High Frequency Driver

    25 mm (1"), highly-damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide

  • Input Connector

    Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 Square mm)

  • Connector Wiring

    Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru

  • Strain Reliefs

    Strain relief for two cables or two flex conduits via coupled clamping mechanism

  • Materials

    ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan

  • Safety Agency

    UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems

  • Ceiling Cutout Size

    Circular cutout with 282 mm (11.1 in) diameter (cardboard cutout template included)

  • Ceiling Thickness Range

    Up to 38 mm (1.5") with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4") ceiling thicknesses

  • Safety Seismic Attachment

    One point, top surface

  • Dimensions (Diameter x Depth)

    12.1 x 10.8" (307 x 274mm)

  • Weight

    14.1 lb (6.4kg) (one speaker)

About JBL Control 18C/T

You can elevate your audio experience with the Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker. This high-quality, stylish, and durable product is crafted by JBL, a brand renowned for its reliable and efficient audio equipment. The Control 18C/T is a full-range ceiling speaker that features an 8-inch high-tech cone driver and a 25mm soft-dome liquid-cooled tweeter. These components are housed in a vented, paintable baffle made from UV-resistant UL94-V0 and UL94-5HB materials, ensuring longevity and performance.

The speaker comes with a pre-attached blind-mount backcan, simplifying the installation process and making it an ideal choice for both professionals and DIY enthusiasts. As a 2-way coaxial ceiling loudspeaker, it delivers clear and balanced sound across both high and low-frequency ranges. This makes it an excellent choice for a wide array of medium to high volume applications.

Whether you're setting up a sound system for a music cafe, retail store, airport, hotel, or educational facility, or you need a reliable solution for business music systems, music/paging systems, reception/waiting rooms, lounges, courtrooms, or convention centers, the Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker is designed to meet your needs. Experience the blend of style, durability, and high-quality sound with this exceptional ceiling loudspeaker.

JBL Control 18C/T Features

  • 200 mm (8") high output driver with polypropylene cone and butyl rubber surround
  • 25 mm (1") soft-dome liquid-cooled tweeter
  • Blind-mount backcan for quick and easy installation
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation: 90 Watts at 8 Ohm nominal setting/60W multi-tap at 70V/100V
  • 58 Hz - 20 kHz bandwidth with 90 Degree coverage
  • High 92 dB sensitivity for high maximum SPL

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-quality 2-Way 8" Coaxial Ceiling Loudspeaker by reputable brand JBL
  • Features an 8-inch high-tech cone driver and a 25mm soft-dome liquid-cooled tweeter
  • Vented, paintable baffle made from UV-resistant UL94-V0 and UL94-5HB materials
  • Comes with a pre-attached blind-mount backcan for quick and easy installation
  • Delivers clear and balanced sound in both high and low-frequency ranges

What's in the box:

  • Control 18C/T 2-Way 8 " Coaxial Ceiling Loudspeaker (White)
  • C-Ring Support Backing Plates
  • 2x Tile Support Rails for 2' or 600mm Tile Spans
  • Cardboard Cutout Templates
  • Paint Shields
  • Removable Locking Multi-Pin Connectors
  • Grilles
  • JBL 5 Year Limited Warranty
