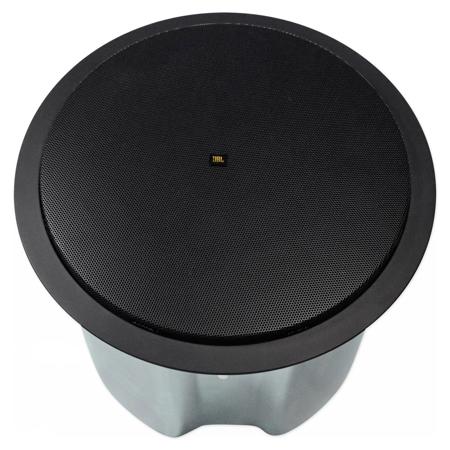

JBL Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker, Black
See all JBL items

JBL Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker, Black, Pair

SKU: JBCON18CTBK
Be the first to review this item

This item is no longer available.

Recommended Alternatives

JBL LCT 81C/T: Picture 1 regular
JBL LCT 81C/T 2x2' 40W Low-Profile Lay-In Ceiling Tile Loudspeaker, Pair
$320.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker unique?

The Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker is unique due to its high-quality components, including a robust 200mm (8") high-tech cone driver and a 25mm soft-dome liquid-cooled tweeter. It's also designed for quick and easy in-ceiling installation, providing a sleek and discreet look for your audio system.

What type of spaces is the Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker suitable for?

The Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker is suitable for a wide range of spaces. It's perfect for medium to high volume applications like music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, and educational facilities.

What materials are used in the construction of the Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker?

The speaker is housed in a vented, paintable baffle made from UV-resistant UL94-V0 and UL94-5HB materials. This ensures the durability of the speaker and allows for customization to match your decor.

What brand is the Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker from?

The Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker is a product of JBL, a brand renowned for its high-quality audio equipment.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

JBL Control 18C/T Specifications

  • Finish

    Black

  • Frequency Range (-10 dB)

    58 Hz - 20 kHz

  • Frequency Response (+/-3 dB)

    80 Hz - 16 kHz

  • Power Capacity (at low-Z)

    180 Watts Continuous Program Power

  • Maxium Input Voltage

    31.8 V RMS (2hrs), 63.6 V peak

  • Nominal Sensitivity

    92 dB

  • Nominal Coverage Angle

    90 Degree conical coverage

  • Directivity Factor (Q)

    6

  • Directivity Index (DI)

    7.8 dB

  • Rated Maximum SPL

    112 dB @ 1 m (3.3') average, 118 dB peak

  • Nominal Impedance

    8 ohms (in direct/bypass 8 Ohm setting)

  • Transformer Taps

    60 W, 30 W, 15 W @ 70V or 100V (plus 7.5 W @ 70V only)

  • Recommended Protective High-Pass

    45 Hz high-pass (24 dB/oct) for 8ohm operation, 60 Hz for 60 W tap, 50 Hz for 30 W, 15 W & 7.5 W tap setting

  • Crossover Network

    12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver

  • Low Frequency Driver

    200 mm (8") with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil

  • High Frequency Driver

    25 mm (1"), highly-damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide

  • Input Connector

    Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 Square mm)

  • Connector Wiring

    Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru

  • Strain Reliefs

    Strain relief for two cables or two flex conduits via coupled clamping mechanism

  • Materials

    ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan

  • Safety Agency

    UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems

  • Ceiling Cutout Size

    Circular cutout with 282 mm (11.1 in) diameter (cardboard cutout template included)

  • Ceiling Thickness Range

    Up to 38 mm (1.5") with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4") ceiling thicknesses

  • Safety Seismic Attachment

    One point, top surface

  • Dimensions (Diameter x Depth)

    12.1 x 10.8" (307 x 274mm)

  • Weight

    14.1 lb (6.4kg) (one speaker)

  • UPC Code

    691991004735

About JBL Control 18C/T

Bring a superior audio experience to your space with the Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker. This full-range, in-ceiling speaker is a product of JBL, a brand synonymous with high-quality audio equipment. It features a robust 200mm (8") high-tech cone driver and a 25mm soft-dome liquid-cooled tweeter, ensuring reliable and efficient sound delivery.

The speaker is housed in a vented, paintable baffle made from UV-resistant UL94-V0 and UL94-5HB materials. This stylish design not only enhances the aesthetic appeal of your space but also ensures the durability of the speaker. The pre-attached blind-mount backcan facilitates quick and easy installation, making it a convenient choice for both home and commercial audio systems.

Designed to deliver excellent sound quality, the Control 18C/T is perfect for a wide range of medium to high volume applications. Whether you're setting up a music cafe, a business music system, a retail store, a music/paging system, or an audio system in an airport, reception/waiting room, lounge, courtroom, convention center, hotel, or educational facility, this speaker is designed to meet your needs.

Experience the blend of stylish design and high-quality sound with the Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker.

JBL Control 18C/T Features

  • 200 mm (8") high output driver with polypropylene cone and butyl rubber surround
  • 25 mm (1") soft-dome liquid-cooled tweeter
  • Blind-mount backcan for quick and easy installation
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation: 90 Watts at 8 Ohm nominal setting/60W multi-tap at 70V/100V
  • 58 Hz - 20 kHz bandwidth with 90 Degree coverage
  • High 92 dB sensitivity for high maximum SPL

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-quality 2-Way 8" Coaxial Ceiling Loudspeaker for superior audio experience
  • Features a robust 200mm (8") high-tech cone driver and a 25mm soft-dome liquid-cooled tweeter
  • Housed in a vented, paintable baffle made from UV-resistant materials for durability and style
  • Pre-attached blind-mount backcan for quick and easy installation
  • Ideal for medium to high volume applications in both home and commercial settings
  • Produced by JBL, a reputable brand known for high-quality audio equipment

What's in the box:

  • Control 18C/T 2-Way 8 " Coaxial Ceiling Loudspeaker (Black)
  • C-Ring Support Backing Plates
  • 2x Tile Support Rails for 2' or 600mm Tile Spans
  • Cardboard Cutout Templates
  • Paint Shields
  • Removable Locking Multi-Pin Connectors
  • Grilles
  • JBL 5 Year Limited Warranty
