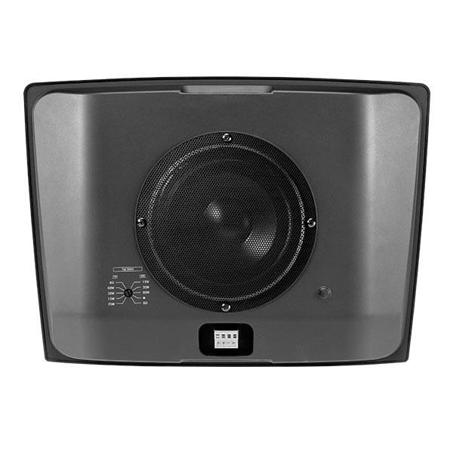

JBL Control HST Wide-Coverage Speaker with 5 1/4" LF, Dual Tweeters & HST Technology, Black

SKU: JBCONTROLHST MFR: CONTROL HST
Earn VIP Reward Points

Key Features

  • Experience wide sound coverage with this JBL speaker's innovative HST technology.
  • Enjoy exceptional audio clarity with dual tweeters and a 5 1/4" LF driver in black.
  • This commercial speaker is IP54 rated, exceeding Mil Spec 810 for durability.
  • Easily install this on-wall speaker with the included U-bracket for secure placement.
  • Achieve optimal sound with a frequency response of 68 Hz to 18 kHz for crisp audio.
  • Connect with ease using the removable locking euro-block connector for streamlined setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JBL Control HST Specifications

  • Finish

    Black

  • Frequency Range (-10 dB)

    50 Hz to 20 kHz

  • Frequency Response (+/-3 dB)

    68 Hz to 18 kHz

  • Coverage Pattern

    180 Degree H x 160 Degree V (1 kHz to 2 kHz, nominal)
    160 Degree H x 150 Degree V (ave, 1 kHz to 16 kHz)

  • Directivity Factor

    5.4 (1 k to 16 kHz)

  • Directivity Index

    7.2 dB (1 k to 16 kHz)

  • Power Rating

    100 W (400 W peak), 2 hr
    75 W (300 W peak), 100 hr

  • Sensitivity

    2.83 V @ 3.3' / 1.0 m: 88 dB (Ave. 80 Hz to 20 kHz)

  • Maximum SPL

    Direct 8 ohms: 108 dB (peaks of 114 dB)
    60 W Tap: 97 dB @ 60 W

  • Crossover Network

    1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF

  • Nominal Impedance

    8 ohms

  • Transformer Taps

    70 V: 60 W, 30 W, 15 W, 7.5W
    100 V: 60 W, 30 W, 15 W

  • Low Frequency Driver

    CMMD ceramic metal matrix diaphragm cone, 1.0" / 25.0 mm voice coil

  • High Frequency Driver

    2x splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid cooling

  • Input Connections

    Removable locking euro-block 4-pin connector with screw-down terminals for bare wire
    2x pins for input, 2x pins for parallel loop-thru
    Max wire: 12 AWG (0.1 square inch / 2.5 Square mm)

  • Approvals and Compliance

    IP54 per IEC529
    Exceeds Mil Spec 810 for humidity, salt spray, temperature, UV, and ASTM G85 for salt spray

  • Enclosure Material

    Fiberglass-reinforced ABS

  • Attachment

    4x M6 points for included U-bracket
    Additional M6 insert points provided for additional safety cable

  • Grille

    Aluminum grille

  • Dimensions

    14.25 x 10.1 x 7.2" (36.2 x 25.6 x 18.4cm)
    Cabinet depth: 8.2" (20.8cm) with included bracket

  • Weight

    7.9 lb (3.6kg)
    With bracket: 9.5 lb (4.3kg)

  • UPC Code

    691991000775

About JBL Control HST

Hemispherical Soundfield Technology
Creates extremely wide listening space while eliminating the primary wall reflection that causes inconsistent sound from wall mount speakers.

Splayed Tweeters
The dual tweeters feature aluminum diaphragms with a CMMD treat, polyurethane surround, a neodymium magnet, and fluid-cooling for high output, low distortion and humidity resistance.

Wall Facing Woofer
The well-damped woofer incorporates a CMMD ceramic metal matrix diaphragm for a very high stiffness-to-weight ratio, high output, resistance to humidity and long-term durability.

Controlled Sound
Engineered noise cancelling allows Control HST to provide a flatter resulting frequency response along with a more consistent sound character throughout the room.

Technology

Elimination of Wall Reflection
The patent-pending design includes a wall-facing woofer, two horizontally splayed tweeters, a wall bracket that spaces the speaker the required distance from the wall, and a tapered cabinet that provides proper loading and dispersion of the sound. With most on-wall (surface-mount) speakers, the baffle of the speaker is some distance from the wall. It is the nature of low and low-mid frequency sound waves to wrap around the speaker, where they reflect back out from the wall, recombining with the original sound.

When this occurs, some frequencies add coherently to the original sound and other frequencies cancel, causing peaks and dips in the resulting frequency response and inconsistencies from location to location within the listening space. By substantially reducing this occurrence, Control HST is able to provide a flatter resulting frequency response along with a more consistent sound character throughout the room.

JBL Control HST Features

  • Hemispherical Soundfield Technology
  • Splayed Tweeters
  • Wall Facing Woofer
  • Controlled Sound

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience wide sound coverage with this JBL speaker's innovative HST technology.
  • Enjoy exceptional audio clarity with dual tweeters and a 5 1/4" LF driver in black.
  • This commercial speaker is IP54 rated, exceeding Mil Spec 810 for durability.
  • Easily install this on-wall speaker with the included U-bracket for secure placement.
  • Achieve optimal sound with a frequency response of 68 Hz to 18 kHz for crisp audio.
  • Connect with ease using the removable locking euro-block connector for streamlined setup.

What's in the box:

  • Control HST Wide-Coverage Speaker (Black)
  • Mounting U-Bracket
  • JBL 5 Year Limited Warranty
