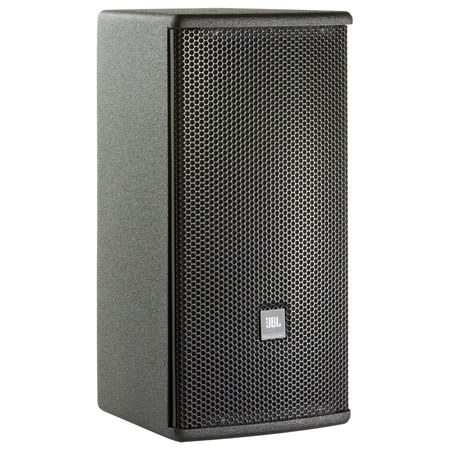

JBL AC18/95-WRX Compact 2-way Loudspeaker System with 1 - 8" LF, Extreme Weather Protection Treatment

The JBL AC18/95-WRX is a compact full-range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column or wall mounting. The high frequency device is a 1" exit compression driver integrated into a newly designed 90 degree x 50 degree rotatable PT (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing.

The AC18/95-WRX utilizes an 8" Symmetrical Field Geometry (SFG) LF transducer with a copper-clad aluminum edge wound 2.5" voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion. The rugged multi-ply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional U-bracket and for an OmniMount type bracket. The AC18/95-WRX is also equipped with attachment points located on the bottom of the enclosure for a stand mount accessory.
