Closeout

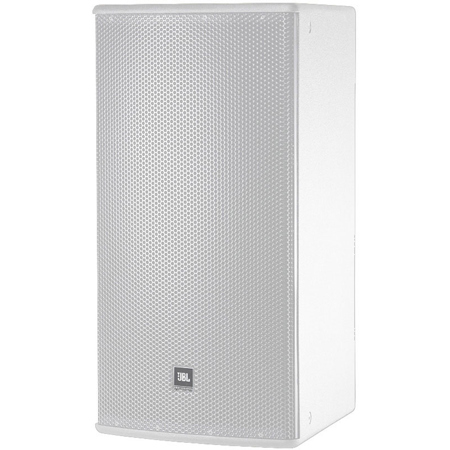

JBL AM5212/26 2-Way Full Range Loudspeaker System with 12" Low-Frequency Driver, 120x60deg. Coverage Pattern, Single, White

SKU: JBLAM521226W MFR: AM5212/26-WH
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this JBL PA speaker's wide frequency response.
  • This passive PA speaker delivers powerful, clear audio for live performances and venues.
  • Achieve optimal coverage with the 120x60 degree pattern of this full range loudspeaker.
  • Enjoy long-lasting durability with the rugged DuraFlex finish on this reliable PA system.
  • Easily install this PA speaker in various settings with its versatile suspension points.
  • Perfect for theaters, clubs, and worship spaces needing high-quality JBL sound reinforcement.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JBL AM5212/26 Specifications

  • Frequency Range

    37Hz to 20kHz (-10dB)

  • Frequency Response

    43Hz to 18kHz (+/-3dB)

  • Coverage Pattern

    120 x 60 deg.

  • Directivity Factor (Q)

    8.2

  • Directivity Index (DI)

    9.1dB

  • Crossover Modes

    Bi-amp/Passive switchable

  • Passive Crossover Frequency

    1.5kHz

  • Transducer Power Rating (AES)

    LF: 400W (1600W peak), 2 hrs and 300W (1200W peak), 100 hrs
    HF: 40W (160W peak), 2 hrs

  • Long-Term System Power Rating (IEC)

    Passive mode: 300W (1200W peak), 100 hrs

  • Maximum SPL

    Bi-amp mode:
    LF: 122dB-SPL cont avg (128dB peak)
    HF: 129dB-SPL cont avg (135dB peak)
    Passive mode:
    121dB-SPL cont avg (127dB peak)

  • System Sensitivity

    Passive mode: 96dB SPL (1W at 1m)

  • Low Frequency Driver

    1x JBL 262H-1 300mm (12") driver with 50.8mm (2") dual voice coil

  • LF: Nominal Impedance

    8Ohms

  • LF: Sensitivity

    97dB SPL

  • High Frequency Driver

    JBL 2408H-1, 38mm (1.5") exit compression driver, 38mm (1.5") voice coil

  • HF: Nominal Impedance

    8Ohms

  • HF: Sensitivity

    113dB SPL

  • Waveguide

    PT-H126HF-1

  • Enclosure

    Trapezoidal with 15 degree side angles, 16mm (5/8") exterior grade 11-ply birch plywood

  • Suspension Attachment

    15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware

  • Finish

    DuraFlex

  • Grille

    Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing

  • Input Connector

    NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (.375") spade lugs. Speakon in parallel with barrier strip for loop-through

  • Environmental Specifications

    Mil-Std 810; IP-x3 per IEC529

  • Applications

    Performing Arts Facilities
    Theatrical Sound Design
    Auditoriums
    Worship Facilities
    Live Clubs
    Dance Clubs
    Sports Facilities
    Themed Entertainment Venues

  • Dimensions (H x W x D)

    711 x 369 x 458mm / 27.99 x 14.53 x 18.03" (Vertical Cabinet Orientation)

  • Weight

    20.2kg / 44.53lbs

  • UPC Code

    192223060395

About JBL AM5212/26

Make your live performances, events, and gatherings come alive with the AM5212/26 2-Way Full Range Loudspeaker System. This high-quality, durable, and reliable audio equipment is a product of JBL's innovative technology, a brand renowned for its excellence in the audio industry.

This medium-power, lightweight loudspeaker system is equipped with a JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 300mm (12") low-frequency driver. This larger driver size allows for the production of deeper, more powerful bass tones, enhancing the overall audio experience.

The system also features a 2408H-1 high-frequency 38mm (1.5") exit, 38mm (1.5") voice-coil compression driver, ensuring clear and balanced sound across a wide area. Its large format Progressive Transition waveguide provides an impressive 120x60 degree coverage, making it an ideal choice for large venues or outdoor events.

The waveguide is rotatable, allowing the loudspeaker system to be used in either vertical or horizontal orientation, adding to its versatility. The high-slope passive networks minimize band overlap, while the well-controlled off-axis response enhances array ability.

The enclosure of this powerful loudspeaker system is constructed of multiply birch, coated in JBL's rugged DuraFlex finish, and is heavily braced to maximize low-frequency performance. The trapezoid enclosure is fitted with fifteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam. This not only provides additional driver protection but also gives the system a professional appearance.

The AM5212/26 is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications. This full-range loudspeaker system is designed to deliver high-quality sound, making it a reliable choice for all your audio needs.

JBL AM5212/26 Features

  • 120deg. x 60deg. Coverage
  • 262H-1 Differential Drive Low-Frequency Driver
  • 2408H-1 High-Frequency Compression Driver
  • Large PT Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior sound quality with this JBL PA speaker's wide frequency response.
  • This passive PA speaker delivers powerful, clear audio for live performances and venues.
  • Achieve optimal coverage with the 120x60 degree pattern of this full range loudspeaker.
  • Enjoy long-lasting durability with the rugged DuraFlex finish on this reliable PA system.
  • Easily install this PA speaker in various settings with its versatile suspension points.
  • Perfect for theaters, clubs, and worship spaces needing high-quality JBL sound reinforcement.

What's in the box:

  • JBL AM5212/26 2-Way Full Range Loudspeaker System with 12 " Low-Frequency Driver
  • JBL 5 Year Limited Warranty
