JBL Control 24CT Micro 2-Way Vented Ceiling Speaker, Pair
See all JBL items

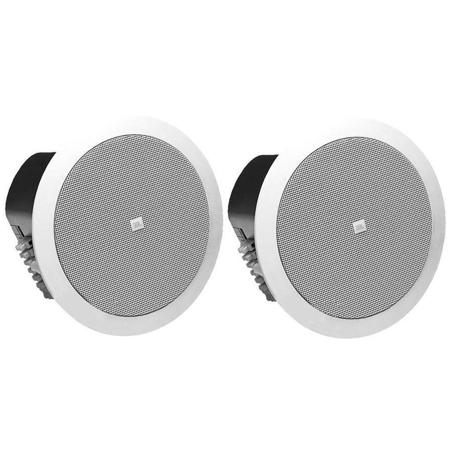

JBL Control 24CT Micro 2-Way Vented Ceiling Speaker Built-in Transformer, 4" Woofer, Pair

SKU: JBLC24CTM MFR: CONTROL 24CT MICRO
Be the first to review this item1 question, 6 answers
$198.00
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with these JBL ceiling speakers for crystal-clear audio.
  • Enjoy versatile connectivity options with built-in transformer taps for customized audio setups.
  • These durable commercial speakers are perfect for offices, retail spaces, and restaurants.
  • Benefit from easy installation with included support rails and cutout template; hassle-free setup!
  • Get wide frequency response (85Hz-25kHz) for full, rich sound in any presentation or audio setup.
  • Rely on JBL's brand reputation for high-quality audio solutions and lasting performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Can i use these on an outside wall? or do they have to be installed on the ceiling?SCOTT D : Absolutely. I installed mine on an outside wall and they work great.DONALD N : I think that would depend on how weathertight your house is. Most houses today if not all, are wrapped in a vapor barrier. This sounds like a question for your home improvement center. All of my speakers are in the ceiling.FARZAD S : If by outside wall you mean outside your home exposed to the elements, then I would caution against it, especially if rain/snow/direct sunlight will come in contact with the speaker grill. The reason companies make outside designated speakers is because of the shielding they cover the sensitive components with. If the wall is outside your home, but has cover, for instance on a covered patio, or back yard with an awning, then there should be no problem. Rule of thumb here is no direct exposure to the above mentioned. If by outside wall you mean any other wall inside your home other than a ceiling, then yes you can use this speaker, though you will have to reinforce installation because the lips that screw to the drywall are not designed to hold the weight of the speaker hanging sideways. The other issue you might have is the amount of space behind the speaker necessary for optimal sound performance. Every speaker has a designated amount of necessary space (enclosure) it requires to produce the intended sound quality.CHRIS E : Must be a 2x6 wall. Didn't see that they are 4" depth. In a 2x4 wall they will not workCHRIS E : Yes but be sure that cut out size is correct. It will clamp to the back side of the wall do stay clear of studs also.BUEL G : You'd need to measure the depth of the enclosure behind the surface grill plate, but I don't see any reason why this speaker couldn't be installed within an inner or out wall if there's enough space between the drywall, studs, and inside of the adjacent wall. Our installation is in the ceiling so the enclosure can be encased by blown in loose insulation without the insulation falling into the speaker itself.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

JBL 24CT In-Ceiling Speaker Specifications

  • Frequency Response

    85Hz to 25kHz

  • Power Capacity

    30 Watts Program (C24C Micro)
    15 Watts Pink Noise (C24C Micro)

  • Maximum Sound Pressure Level (SPL)

    94dB @ 1m (3.3 ft), 8W tap

  • Nominal Sensitivity

    86dB SPL @ 1m (3.3 ft)

  • Transformer Taps

    70V: taps: 30W, 15W, 7.5W, 3.7W
    100V: taps: 30W, 15W, 7.5W

  • Crossover

    3.5kHz

  • Shielded

    Not applicable

  • Low Frequency Driver

    4.5 in. (115 mm) IMG (injection molded graphite), 1 in. (24mm) Voice coil

  • High Frequency Driver

    0.5 in. (12mm) polycarbonate

  • Enclosure Material

    Formed Steel

  • Input Connections

    Screw-down terminals, touch-proof, UL, CE and VDE rated, outside of back can

  • Dimensions

    Outside Dimensions: (H x W) 4.2 x 7.7 in. (106 x 195mm)
    4.1 in. (105mm) front of ceiling tile to back of the back can

  • Weight

    4.4 lb. (2.0kg) each

  • UPC Code

    050036904650

About JBL 24CT In-Ceiling Speaker

The full, high-quality sound of the compact JBL Control 24CT Ceiling Speaker System is ideal for medium volume paging and background music applications including restaurants, professional offices and retail. Installation is possible without ceiling access and the built-in voltage transformer allows for additional speakers and system flexibility.

Use the Control 24CT with other High/Mid response Control Contractor Systems to achieve a more flexible system capable of mixing and matching zones without separate equalization. Low frequencies may be augmented using a Control Contractor subwoofer.

JBL 24CT In-Ceiling Speaker Features

  • 30 Watts power capability
  • 8W Multi-tap transformer for 70V and 100V systems
  • 4 1/2 in.(115-mm) woofer, injection molded graphite cone with butyl rubber surround
  • Extremely wide 150deg. coverage
  • Shallow 4-inch (100 mm) depth
  • 1/2 in. (12 mm) polycarbonate tweeter for extended response
  • Smooth frequency response
  • Packaged with grille, back can and tile rails for fast installation

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior sound quality with these JBL ceiling speakers for crystal-clear audio.
  • Enjoy versatile connectivity options with built-in transformer taps for customized audio setups.
  • These durable commercial speakers are perfect for offices, retail spaces, and restaurants.
  • Benefit from easy installation with included support rails and cutout template; hassle-free setup!
  • Get wide frequency response (85Hz-25kHz) for full, rich sound in any presentation or audio setup.
  • Rely on JBL's brand reputation for high-quality audio solutions and lasting performance.

What's in the box:

  • JBL Control 24CT Micro 2-Way Vented Ceiling Speaker
  • C-Shaped Support Backing Plate
  • 2x Tile Support Rails
  • Cutout Template
  • JBL 5 Year Limited Warranty
