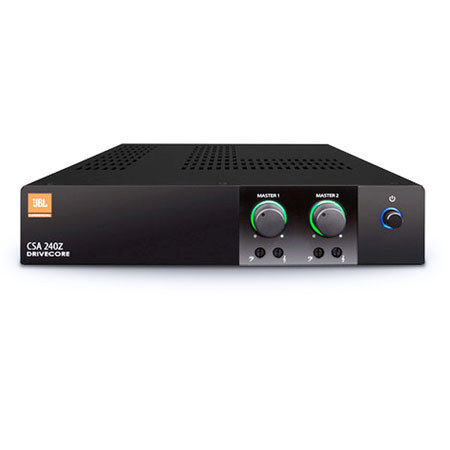

JBL CSA240Z 2-Channel 40W 1U Commercial DriveCore Amplifier with Built-in 70/100V, Fanless, 20Hz-20kHz Frequency at 8 Ohms, 50kOhms RCA Nominal Impedance

SKU: JBLCSA240Z MFR: NCSA240Z-U-US
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this JBL power amplifier, boasting a >100dB signal-to-noise ratio.
  • This 2-channel amplifier delivers 40W at 8 Ohms, perfect for commercial audio applications.
  • Achieve superior sound quality with a wide 20Hz-20kHz frequency response at 8 Ohms.
  • Enjoy flexible connectivity with both Euro Block and RCA input options on this amplifier.
  • The durable build of this JBL amplifier ensures reliability for long-term professional use.
  • Easily integrate this 1U rack-mountable amplifier into your existing audio setup for convenience.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JBL CSA240Z Specifications

  • Rated Power

    40W at 1kHz, <=0.5% THD

  • Output Channels

    2

  • Insertion Loss

    1 dB maximum (70V & 100V outputs)

  • Input Sensitivity

    1.4V RMS for 8Ohms

  • Frequency Response

    +/- 0.5dB (8Ohms, 20Hz - 20kHz)

  • Total Harmonic Distortion (THD)

    <0.5% (at Full rated power, 20Hz-20kHz)

  • Signal-to-noise ratio

    >100dB (Ref. rated output, 22KHz BW, A-weighted)

  • Nominal Input Impedance

    Euro Block: 20 kOhms (balanced)
    RCA: 50 kOhms

  • Maximum Input Level

    +22dBu (Nominal)

  • Crosstalk

    >70 dB

  • Tone Controls

    Bass +/-10dB at 100Hz
    Treble +/-10dB at 10kHz

  • Nominal AC Line Voltages

    100-240V, 50/60 Hz

  • Minimum Load Impedance

    Low-Z Output: 4Ohms
    70V Output: 120Ohms 100V Output: 240Ohms

  • Operating Temperature/Humidity

    0 to 35 deg. C / 32 to 95 deg. F at 95% R.H. (non-condensing)

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Dimensions (H x W x D)

    1.7 x 8.6 x 11.9" (43.18x 218.44 x 302.26mm)

  • Weight

    7.5lbs / 3.4kg

  • UPC Code

    871015008257

About JBL CSA240Z

The JBL CSA240Z 2-Channel 40W 1U Commercial DriveCore Amplifier is a professional tool designed and built for Installed sound applications. There are both single channel and two channel models. It provides amplification with a choice of low impedance, 70V or 100V outputs. The product includes a rack mounting kit for installations to a cabinet. The system can be easily expanded with additional JBL Commercial Series products. Provisions are included for a remote volume control using the JBL CSR-V control module.

JBL CSA240Z Features

  • 2 channel outputs
  • Integrated Output Transformer to drive 70V or 100V speaker systems
  • Ideal for commercial and industrial use
  • System may be expanded by adding JBL Commercial Series Mixers and Mixer Amplifiers
  • Euro-block type mic/line input connectors and output connectors
  • Independent Bass and Treble controls for each output channel
  • Remote volume control capability using JBL CSR-V module and standard Ethernet cable
  • Utilizes Crown's DriveCore technology providing excellent audio performance with high efficiency

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience pristine audio with this JBL power amplifier, boasting a >100dB signal-to-noise ratio.
  • This 2-channel amplifier delivers 40W at 8 Ohms, perfect for commercial audio applications.
  • Achieve superior sound quality with a wide 20Hz-20kHz frequency response at 8 Ohms.
  • Enjoy flexible connectivity with both Euro Block and RCA input options on this amplifier.
  • The durable build of this JBL amplifier ensures reliability for long-term professional use.
  • Easily integrate this 1U rack-mountable amplifier into your existing audio setup for convenience.

What's in the box:

  • JBL CSA240Z 2-Channel 40W 1U Commercial DriveCore Amplifier
  • Rack mounting kit
  • JBL 3 Year Limited Warranty
