36% Off

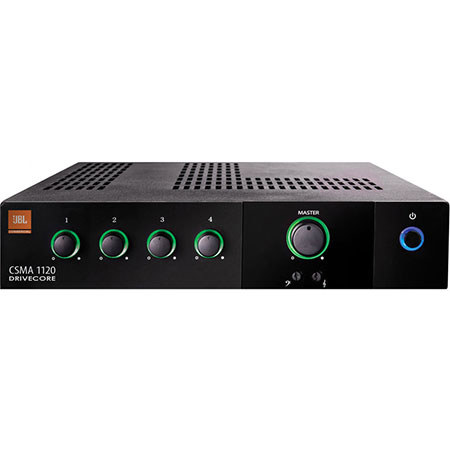

JBL CSMA 1120 4-Inputs with 120W DriveCore Mixer-Amplifier, Fanless, 20Hz-20kHz at 4/8 Ohms, 70V/100V Outputs, Space-saving 1U Design

SKU: JBLCSMA1120 MFR: NCSMA1120-U-US
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this JBL mixer-amplifier, perfect for installations.
  • This 4-channel amplifier with mixer supports both 70V/100V outputs, for versatile use.
  • Enjoy a wide frequency response (20Hz-20kHz) with this durable power amplifier.
  • Optimize sound with built-in bass/treble controls on this intuitive audio mixer.
  • The fanless design ensures silent operation of this 120W mixer-amplifier combo.
  • Easily manage your sound with multiple input options on this compact amplifier.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JBL CSMA 1120 Specifications

  • Max Output Power per Channel

    120W

  • Insertion Loss

    1 dB maximum (70V & 100V outputs)

  • Continuous Power per Channel

    15W

  • Number of Input Channels

    4

  • Number of Output Channels

    1

  • Connectors

    Rear Panel:
    IEC power input
    5-pin amplifier output
    3-pin auxiliary line Level output
    RJ45, remote volume
    3-pin Euroblock Mic/Line input
    2 x Dual RCA stereo input
    5-pin Euroblock Priority input

  • Controls

    Front Panel:
    4 x Input Level rotary knob
    Output volume attenuator, rotary knob
    Power switch
    Base potentiometer
    Treble potentiometer

    Rear Panel:
    Hi-Z switch
    Phantom power switch
    Mic/Line selector switch
    VOX adjustment

  • Indicators

    Front Panel:
    4 x Input signal presence ring, green
    Output volume ring, green
    Power switch ring, green/blue

  • Line Output Level

    5.0VRMS into 10kOhms

  • Input Sensitivity

    Mic Input: 3mVRMS
    Line Input: 775 mVRMS
    RCA Input: 300mVRMS

  • Frequency Response

    4/8 Ohms Output: 20Hz - 20kHz, +/-2dB
    70V/100V Outputs: 80Hz - 15kHz +/-2dB
    Line Out: 20Hz - 20kHz, +/-1dB

  • Total Harmonic Distortion

    Power Amp Output: <0.5%, 20Hz - 20kHz
    Line Output: 0.05% typical

  • Signal-to-noise ratio

    >90dB

  • Input Impedance

    Mic: 400 Ohms
    Line: 20 kOhms (balanced)
    RCA: 50 kOhms

  • Phantom Power

    27VDC

  • Crosstalk

    -70 dB

  • Nominal AC Line Voltages

    100-240V, 50/60 Hz

  • Minimum Load Impedance

    Low Impedance Output: 4 Ohms
    70V Output: 40 Ohms
    100V Output: 80 Ohms

  • Operating Temperature/Humidity

    0 deg. C to 35 deg. C / 32 deg. F to 95 deg. F at 95% R.H. (non-condensing)

  • Storage Temperature

    -20 deg. C to 85 deg. C / -4 deg. F to 185 deg, F

  • Dimensions (W x D x H)

    8.6 x 11.9 x 1.7" / 218.44 x 302.26 x 43.18mm

  • Weight

    7.1lbs / 3.22kg

  • UPC Code

    871015007359

About JBL CSMA 1120

The JBL CSMA 1120 4-Inputs with 120W DriveCore Mixer-Amplifier is a professional tool with a sleek industrial look that is designed and built for commercial sound applications. Utilizing Crown's DriveCore technology enables significantly reduced size and weight all mixer/amps are highly efficient, fanless and just 1U rack space high. There are both single channel and two channel models with four or eight mixer channels, respectively. The CSMA mixer/amps offer unmatched ease of use, with a clean, front panel featuring only volume controls for each channel, master volume adjustment, adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments.

The amplifier can drive 8 Ohms and 4 Ohms loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz. JBL Commercial mixer/amps are manufactured under HARMAN's GreenEdge environmental initiative, conforming to lead-free RoHS standards and utilizing recycled copper, aluminum and steel, an energy-saving powder coat finishing process and other environmentally-conscious manufacturing processes. Their highly efficient DriveCore design reduces power consumption and yields much more efficient operation - up to 80 percent more efficient than previous designs.

JBL CSMA 1120 Features

  • 4 inputs with 1 output of 80 or 120-watts of power
  • Ideal for commercial and industrial use
  • Fanless, space-saving 1U design
  • Sleek industrial look with illuminated rings, making them easy to see and operate
  • Euro-block type mic/line input connectors and output connectors
  • Independent Bass and Treble controls for each output channel
  • Supports 70V and 100V distributed audio systems without the need for a separate transformer
  • Remote volume control capability using JBL CSR-V module and standard Ethernet cable
  • Priority muting
  • Configurable output routing
  • Utilizes Crown's DriveCore technology providing excellent audio performance with high efficiency
  • Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience pristine audio with this JBL mixer-amplifier, perfect for installations.
  • This 4-channel amplifier with mixer supports both 70V/100V outputs, for versatile use.
  • Enjoy a wide frequency response (20Hz-20kHz) with this durable power amplifier.
  • Optimize sound with built-in bass/treble controls on this intuitive audio mixer.
  • The fanless design ensures silent operation of this 120W mixer-amplifier combo.
  • Easily manage your sound with multiple input options on this compact amplifier.

What's in the box:

  • JBL CSMA 1120 4-Inputs with 120W DriveCore Mixer-Amplifier
  • Long Angle Bracket
  • Flat Bracket
  • 2x Front Angle Bracket
  • 2x Rear Angle Bracket
  • 2x Rear Flat Bracket
  • JBL 3 Year Limited Warranty
