About JBL EON210P

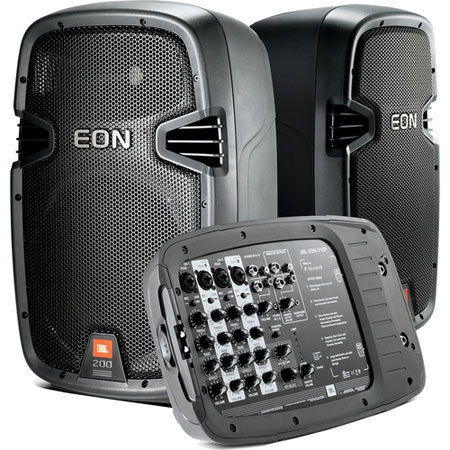

The JBL EON 210P is a self-contained, portable PA system features multiple input channels with individual tone controls, multiple digital effects and convenient output routing capabilities that allow the user to integrate the system into any number of audio environments. With its lightweight and ergonomic design, the EON 210P is perfect for situations where ease and portability are just as important as quality and flexibility.

The EON210P consists of two 10-inch, two-way, powered loudspeakers, one with a detachable powered mixer and the other with a detachable storage compartment, one pair of unshielded speaker cables and a power cord. Capable of reproducing full bandwidth sound at high levels, the 210P is comprised of a 250 mm (10 in) woofer, a 37.5 mm (1.5 in) neodymium high frequency compression driver coupled to a 100deg. H by 60deg. V waveguide driven by a 300 watt Crown Class-D power amplifier and integrated mixer.

The attached mixer has 8 inputs: 4 mono inputs comprised of a "peak LED", a combination input connector, MIC/LINE selector, treble and bass controls, a reverb send and a channel volume control. The 2 stereo inputs are where you will connect all of the microphones, musical instruments, external sound sources (like MP3 or CD players), headphones in addition to any recording devices or additional speakers like a personal monitor, subwoofer or "Front of House" feed.

The stereo inputs labeled "STEREO IN 5/6"" offer the option of using ¼" phone plugs or RCA plugs and this channel has a volume control. The input labeled "STEREO IN 7/8""is a 3.5-mm stereo input of the type typically found on personal music players. All of the inputs will route to the speakers and to the monitor output section. The system is also equipped with digital multi-effects designed to enhance instruments or vocals.
