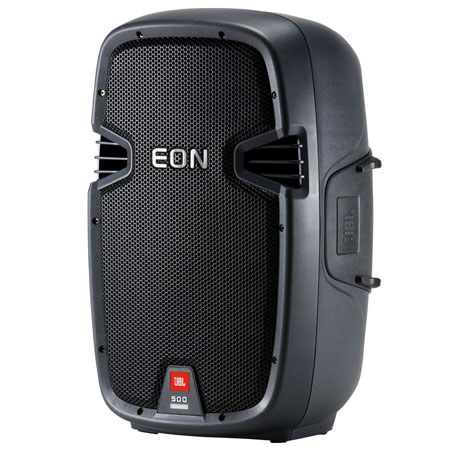

JBL EON 510 10" Two-Way Powered Portable Speaker System with Mixer, 203V (Europe)

The JBL EON 510 is a 10-inch, two-way, powered, portable speaker system. Capable of reproducing full bandwidth sound at high levels, it offers the additional utility of a 3-channel built-in mixer. The EON510 is comprised of a 254 mm (10 in) Differential Drive woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100deg. H by 60deg. V waveguide. Both components are driven by the discrete channels of a 280 watt Class-D integrated power amplifier. The input section contains all cross-over functions, protection and mixer functionality.

The mixer offers XLR or ¼-inch TRS phone jack compatibility. Selectable input sensitivities allow a broad range of devices to be properly matched. A unique mix/loop signal flow router provides opportunities for daisy chaining or gigging with the built-in mixer only. Pre-engineered system EQs allow for matching the settings to the actual source material. In the "cut" position, maximum level can be achieved for speech reproduction by reducing need to reinforce the lower frequencies. This is also a typical setting when using the system as a floor monitor, reducing low frequency build-up which occurs naturally when placed on a floor.

The "flat" setting is ideal for live music and the "boost" for reproducing low level pre-recorded music, delivering extra low and high frequency energy. The signal present and limit lights indicate performance status. An additional switch is provided to defeat the illuminated logo in theatre applications.

In addition to acoustic performance, the EON510 features a top handle grip with non-slip rubber over-molding, ultra light weight and balanced ergonomics. The generation of EON products offers true portability and ease of handling. Four standard M10 rigging points and integrated pole mount socket increase the system's utility. The extremely rugged copolymer enclosure has been designed for main and 45deg. monitor orientation in the left and right hand configuration. A full screen-backed steel grille offers additional protection for both the woofer and compression driver components.
