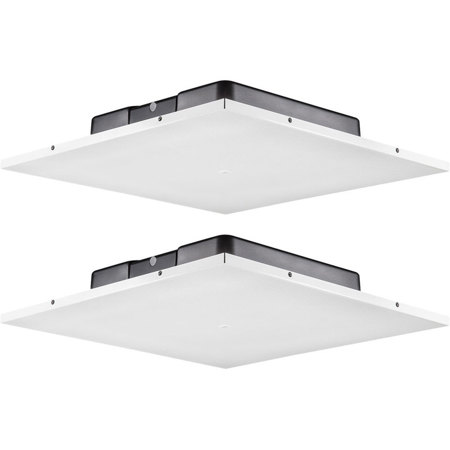

JBL LCT 81C/T 2x2' 40W Low-Profile Lay-In Ceiling Tile Loudspeaker, Pair

SKU: JBLLCT81CT MFR: LCT 81C/T
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this JBL commercial speaker system.
  • Enjoy seamless audio in offices with these easy-to-install ceiling speakers.
  • This low-profile speaker fits perfectly into standard 2x2' ceiling grids.
  • Get wide, even sound coverage with a 100-degree conical coverage angle.
  • Durable steel enclosure ensures lasting performance for your audio needs.
  • Selectable taps offer flexible power settings for optimal sound distribution.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Amy M : We've used these before, and they're great speakers!Amy M : upcoming project

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JBL LCT 81C/T Specifications

System
  • Frequency Range

    100Hz - 16kHz (-10dB)

  • Power Capacity (at low-Z)

    40 Watts Continuous Program Power
    20 Watts Continuous Pink Noise

  • Nominal Sensitivity

    96dB

  • Nominal Coverage Angle

    100 deg. conical coverage (ave. 1kHz - 4kHz)

  • Rated Maximum SPL

    108dB at 1m (3.3') average, 108dB peak (at 8Ohms setting)

  • Nominal Impedance

    8Ohms (in Direct/Thru 8Ohms setting)

  • Transformer Taps

    10W, 5W, 2.5W at 70V or 100V (plus 1.3W at 70V only)

Transducer

Jump to...
  • Transducer

    High-efficiency 200mm (8") dual-cone driver with 25mm (1") diameter voice coil, Kapton coil former and high-temperature voice coil wire

Enclosure

Jump to...
  • Input Connector

    Bare wire inside protected in touch-proof wiring compartment

  • Materials

    Steel rear enclosure, front baffle and perforated grille

  • Grille Color

    White

  • Safety Agency

    Suitable for use in air handling spaces certified per UL1480A, Speakers for Commercial and Professional Use; UL2043, Standard for Fire Test for Heat and Visible Smoke Release for Discrete Products Installed in Air-Handling Spaces; NFPA90 & NFPA70; S7232/UL Listed, Signaling Speaker

  • Ceiling Cutout Size

    No cutout required. Speaker drops into ceiling grid

  • Suspension/Safety-Seismic Attach Points

    Two tabs on back baffle, plus 4 holes in corners

General

Jump to...
  • Recommended Protective High Pass

    90Hz high-pass (24 dB/oct) for 8O direct or any 70V or 100V tap setting

  • Tap Selector

    Rotary switch accessible from side of backcan

  • Dimensions

    607 x 607 x 103mm (23.90 x 23.90 x 4.06")

  • Weight

    7.1kg (15.65 lbs)

  • UPC Code

    691991007446

About JBL LCT 81C/T

Experience the superior sound quality of the LCT 81C/T 2x2' 40W Low-Profile Lay-In Ceiling Tile Loudspeaker with 8" Driver. This full-range ceiling speaker is expertly designed to seamlessly integrate into a 2 x 2' US-style suspended grid ceiling, eliminating the need for cutting ceiling tiles and ensuring a clean, hassle-free installation.

With a low-profile depth of just 100mm (4"), this speaker is a perfect fit for spaces where deeper loudspeakers are not an option. It's an ideal choice for a wide range of applications, from education classrooms and business music systems to retail stores, airports, reception/waiting rooms, lounges, courtrooms, and meeting rooms.

The LCT 81C/T is engineered to deliver exceptional performance for both paging and light-to-medium music applications. Its high sensitivity of 96dB ensures maximum sound level, even at low tap settings, for a consistently clear and powerful audio experience.

At the heart of this loudspeaker is a 200mm (8") dual-cone driver with a high sensitivity of 96dB. The driver features a 25mm (1") diameter voice coil, equipped with a Kapton coil-former and high-temperature wire for enhanced power dissipation and long-term reliability.

The built-in 10 Watt transformer offers versatility, allowing use on 100V or 70V distributed loudspeaker lines, as well as at 8Ohms (low impedance) for direct driving from a low impedance power amplifier. Adjustments are made easy with a rotary switch located on the side of the rear enclosure.

For added safety, the LCT 81C/T includes two seismic attachment tabs for secure ceiling deck installation, and four holes, one in each corner. The speaker is completed with a white perforated grille, adding a sleek, modern touch to any setting. Experience the difference with the LCT 81C/T 2x2' 40W Low-Profile Lay-In Ceiling Tile Loudspeaker with 8" Driver.

JBL LCT 81C/T Features

  • High efficiency 200mm (8") dual-cone driver
  • Easy lay-in installation into 2' x 2' US-style suspended grid ceilings. No cutting of ceiling tiles is necessary
  • Perforated metal grille included
  • Combined 70V/100V and low impedance direct operation
  • 20 Watts at 8Ohms (low-impedance) direct setting
  • 10 Watt multi-tap at 70V/100V with taps at 10W, 5W, 2.5W (and 1.3W for 70V only)
  • Very low-profile at just 103mm (4.1") deep, to fit into ceilings that are shallow or that contain obstructions
  • Easy bare-wire connection in protected compartment. Wire entrance from either top or side via knock-out
  • Very high 96dB sensitivity turns power from small amplifiers into maximum sound level for listeners
  • Designed for high speech intelligibility
  • 100 deg. coverage pattern (conical)
  • UL1480A and UL2043 certifications for use in ceiling plenum spaces

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior sound quality with this JBL commercial speaker system.
  • Enjoy seamless audio in offices with these easy-to-install ceiling speakers.
  • This low-profile speaker fits perfectly into standard 2x2' ceiling grids.
  • Get wide, even sound coverage with a 100-degree conical coverage angle.
  • Durable steel enclosure ensures lasting performance for your audio needs.
  • Selectable taps offer flexible power settings for optimal sound distribution.

What's in the box:

  • JBL LCT 81C/T 2x2' 40W Low-Profile Lay-In Ceiling Tile Loudspeaker with 8 " Driver
  • Metal Grille
  • JBL 1 Year Limited Warranty
