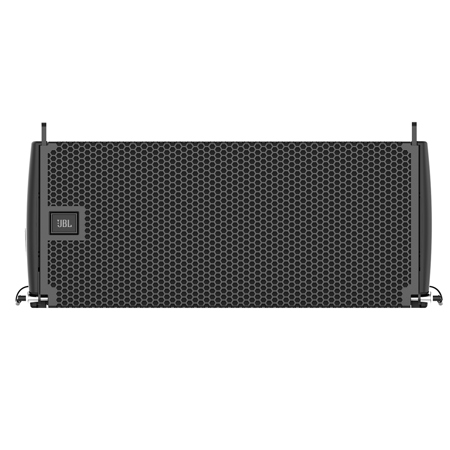

JBL SRX906LA 6.5" 880W Dual Powered Line Array Loudspeaker

SKU: JBLP3230MX MFR: JBL-P3230MX
Earn VIP Reward Points

Key Features

  • Experience superior sound with the JBL SRX906LA powered line array loudspeaker.
  • This active PA speaker delivers 880W peak power for impactful audio performance.
  • Achieve optimal coverage with its 120-degree horizontal dispersion; great for venues.
  • Durable polypropylene enclosure and IP54 rating ensures reliability for outdoor events.
  • Easily configure arrays with adjustable inter-enclosure angles from 0.5 to 12 degrees.
  • Lightweight at 37 lbs, this portable PA speaker is perfect for mobile DJs and bands.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JBL SRX906LA Specifications

Acoustical

Acoustical

Jump to...
  • Frequency Range

    (-10 dB): 63 Hz-17 kHz (array preset)
    (-3 dB): 70 Hz-15 kHz (array preset)

  • Coverage Pattern (-6 dB)

    Horizontal: 120 degrees nominal (500 Hz-16 kHz)
    Vertical: Varies with array size and configuration

  • Maximum Peak Output

    134 dB

  • System Type

    Line Array, two-way active

Transducers

Jump to...
  • Low Frequency

    2x JBL 2186G, 6.5" diameter, dual 2.0" diameter voice coil, neodymium Differential Drive

  • High Frequency

    JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil

Audio Input

Jump to...
  • Input Type

    Balanced line level

  • Connectors

    2x Neutrik XLR (In/Out)

  • Nominal Input Sensitivity

    +6 dBu (system starts limiting with broadband noise and music)

  • Maximum Input Level

    21 dBu

  • Input Impedance

    100 k Ohm

Amplifier

Jump to...
  • Type

    Class-D

  • Number of Channels

    2x

  • Continuous Power

    600 Watts
    LF: 400 Watts
    HF: 200 Watts

  • Peak Power

    880 Watts
    LF: 580 Watts
    HF: 300 Watts

  • Cooling Type

    Convection, external aluminum heat sink, internal on-demand fan

  • Sample Rate

    48 kHz

  • Bit Depth

    24 bit

User Interface

Jump to...
  • Type

    LCD screen, encoder, Back button, (4) LED Indicators (3 single, 1 bi-color)

Networking

Jump to...
  • Type

    TCP/IP

  • Protocol

    Harman HControl

  • Speed

    Dual 100 Mbps ports

  • Connectors

    2x Neutrik etherCON

AC Power

Jump to...
  • Voltage Range

    Nominal: 100-240 VAC, 50/60 Hz
    Limits: 80-260 VAC, 50/60 Hz

  • Connectors

    Dual (In/Out) Neutrik powerCON TRUE1 TOP

Current Draw

Jump to...
  • Standby

    120 V: 0.2 A
    208 V: 0.1 A
    240 V: 0.1 A

  • Idle

    120 V: 0.3 A
    208 V: 0.2 A
    240 V: 0.2 A

  • Continuous

    120 V: 1.3 A
    208 V: 0.8 A
    240 V: 0.7 A

  • Maximum Instantaneous Peak

    120 V: 7.0 A
    208 V: 5.4 A
    240 V: 4.7 A

  • Peak Inrush

    120 V: 2.2 A
    208 V: 3.6 A
    240 V: 4.3 A

Physical

Jump to...
  • Enclosure

    Polypropylene, four integral recessed handholds

  • IP Rating

    IP54

  • Suspension

    Three-point captive suspension plates, quick release pins, steel with anti-corrosion coating

  • Inter-enclosure Angle

    0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 Degree

  • Grille

    Powder coated 1.5 mm (16-gauge) hex perforated steel with acoustically transparent black cloth backing

  • Dimensions (H x W x D)

    9.5 x 19.9 x 16.5" (243 x 507 x 420mm)

  • Weight

    37 lbs (16.8kg)

  • UPC Code

    691991035524

About JBL SRX906LA

Are you seeking a powerful, high-quality, and reliable audio solution for your live performances or events Look no further than the SRX906LA 6.5" 880W Dual Powered Line Array Loudspeaker. This compact, two-way, active line array element is designed to cover a wide range of applications, from small to midsize venues, making it an ideal choice for rental houses, touring artists, DJs, and installations.

The SRX906LA is equipped with built-in DSP and amplification, offering a seamless plug-and-play experience while ensuring consistent and optimum performance globally. With JBL transducers and a new acoustic design, this loudspeaker delivers excellent sound fidelity and best-in-class maximum SPL.

This professional-grade loudspeaker features dual 6.5-inch neodymium Differential Drive woofers and a three-inch compression driver, housed in a computer-optimized enclosure made of durable composite material. Despite its compact size, it offers superior performance while remaining lightweight and portable.

The SRX906LA is also equipped with an innovative three-point rigging system and a full set of accessories, allowing systems to scale and meet the diverse needs of production companies and installation houses. A new, full-featured software package gives users control of the system on various platforms, including Windows, macOS, and iPad OS.

At the heart of the SRX900 Series acoustic design is JBL's proprietary Radiation Boundary Integrator, adapted from the groundbreaking VTX Series of line array loudspeakers. This innovative design mounts both the high and low-frequency transducers on a single horn, improving horizontal directivity while reducing cabinet size. Precisely placed low-frequency projection apertures work in tandem with the high-frequency horn to seamlessly integrate the three symmetrically mounted drivers.

The SRX900 Series offers a complete system solution, including speakers, subwoofers, accessories, and software that support a variety of configurations and simplify storage, transport, and rigging. With its scalable design, it's easy to start with a small system and add components over time. All SRX900 products have been designed to work seamlessly with other JBL tour sound products, ensuring systems combine coherently.

In summary, the SRX906LA 6.5" 880W Dual Powered Line Array Loudspeaker offers best-in-class performance, innovative acoustic design, and a complete system solution, making it a top choice for professionals in the audio industry.

JBL SRX906LA Features

  • The SRX900 Series is a complete solution featuring full-range products, subwoofers, accessories, and software
  • Versatile Rigging System: Provides flexibility to pole mount, ground stack, or fly SRX900 series
  • Built-in DSP: Includes 24 user-adjustable filters, 2,000 ms of delay, and advanced features like Array Size Compensation and FIR-based Throw Distance Correction filters
  • JBL transducers and Acoustic Design: Provide excellent sound fidelity & best-in-class maximum SPL
  • Computer-optimized Enclosure: Made out of composite material and offers excellent performance while remaining compact and lightweight
  • New, Full-featured Software Package: Gives users control of the system on various platforms, including Windows, macOS, and iPad OS
  • Dual Ethernet Ports: With Neutrik etherCON connectors supports HARMAN HControl Ethernet
  • LevelMax Limiting: Uses sophisticated excursion-control algorithms to protect transducers
  • Rear-panel LCD: Provides complete access to control features

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior sound with the JBL SRX906LA powered line array loudspeaker.
  • This active PA speaker delivers 880W peak power for impactful audio performance.
  • Achieve optimal coverage with its 120-degree horizontal dispersion; great for venues.
  • Durable polypropylene enclosure and IP54 rating ensures reliability for outdoor events.
  • Easily configure arrays with adjustable inter-enclosure angles from 0.5 to 12 degrees.
  • Lightweight at 37 lbs, this portable PA speaker is perfect for mobile DJs and bands.

What's in the box:

  • JBL SRX906LA 6.5" 880W Dual Powered Line Array Loudspeaker
  • Neutrik Locking Female Cable Connector (NAC3FX-W-TOP)
  • Neutrik Locking Male Cable Connector (NAC3MX-W-TOP)
  • JBL 5 Year Limited Warranty
