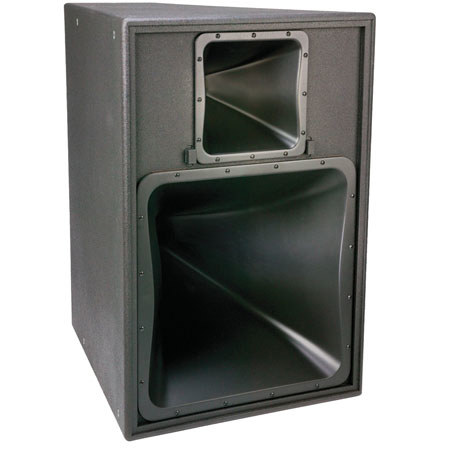

JBL PD5200/43 High Output Two-Way Mid/High Frequency Loudspeaker with 200mm (8 in) CMCD Driver, 40Deg. x 30Deg.Coverage Pattern

The JBL PD5200/43 is a Precision Directivity 40 degree x 30 degree mid-high frequency loudspeaker designed for applications requiring high output capability with excellent pattern control. The CMCD-82H cone mid-range compression driver consists of a driver/phasing plug assembly providing high output with low distortion. CMCD-82H's extended response allows for smoother transition to the high frequency driver and the smaller entrance diameter into the waveguide provides for better pattern control. The integral 200 mm (8") driver features a high power Differential Drive dual voice coil design. The 2431H large format high frequency compression driver utilizes a neodymium magnet and aluminum diaphragm to deliver clear and intelligible high frequency projection, extended frequency response and low distortion at even the highest drive levels.

Large PT (Progressive Transition) waveguides achieve an optimum balance of extremely well controlled coverage with low distortion, smooth frequency response and natural sound character. The waveguides are rotatable for cabinet positioning in either horizontal or vertical orientation. A high-slope crossover network minimizes band overlap and the resulting well-controlled off-axis response enhances arrayability.

The loudspeaker can be operated in either bi-amplified or in full passive mode. Input connectors include both Speakon and CE-compliant covered barrier strip for hookup versatility. The cabinet is fitted with twenty M10 threaded suspension points, supporting a wide variety of installation approaches. PD5200/43 is part of JBL's broad lineup of installed sound loudspeakers, complementing the larger PD700 mid-high cabinets with a more compact size and supplementing the smaller AE series cabinets with higher SPL capability and larger horns for pattern control to a lower frequency.
