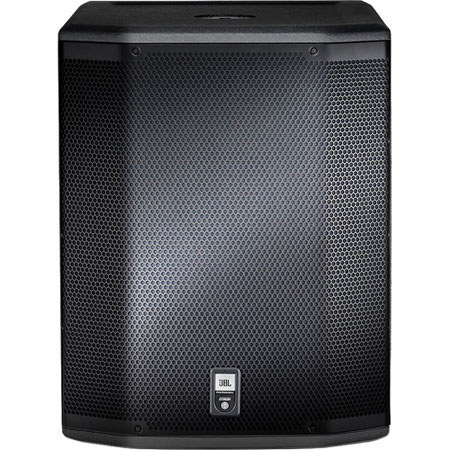

JBL PRX618S-XLF 18" Self-Powered Subwoofer System with 2 x 500W Class-D Crown Digital Amplifier

The JBL PRx618S-xLF, extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRx618S-xLF performs with extreme efficiency and control. The subs are stackable and light-weight ensuring quick set-ups and tear-downs. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRx full-range systems. The addition of a polarity reverse option further enables system optimization.

The PRx618S-xLF is a high performance self-powered subwoofer system. It is comprised of a powerful 2268FF Differential Drive dual voice-coil and magnetic gap, neodymium woofer driven by a 1000 Watt (dual 500 watt) Crown Class-D power amplifier. Dual-Bridge Technology directly links discrete amplifier channel outputs to each voice coil in the Differential Drive woofer. Electrical power transfer to the transducer is optimized for more power performance. A proprietary DSP chip is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.

The amplifier input panel offers stereo inputs with XLR or ¼ inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level, via the level control knob.

The PRx618S-xLF cabinet is built from a combination of 25mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. This cabinet is protected by JBL's tour proven DuraFlex finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.
