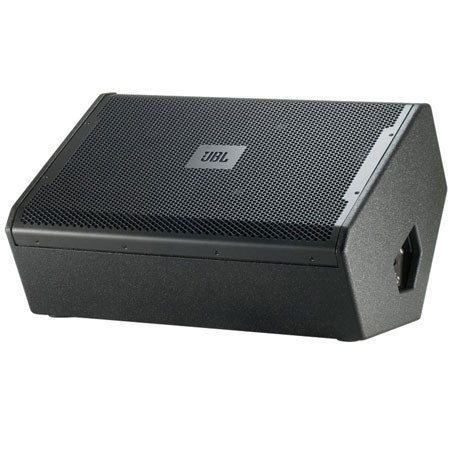

JBL VRX915M 15" 2-Way Stage Monitor with 3200W Peak Power Rating, 50x90Deg. Coverage

SKU: JBLVRX915M

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

JBL VRX915M Specifications

  • Frequency Range (-10 dB)

    60 Hz - 20 kHz

  • Frequency Response (+/-3 dB)

    70 Hz - 20 kHz

  • Coverage Pattern

    50Deg. x 90Deg. nominal

  • Crossover Modes

    Passive / Bi-amp

  • Crossover Frequency

    1.1 kHz

  • Power Rating

    Passive Full-Range:
    800 W / 1600 W / 3200W (Continuous / Program / Peak), 2 hrs
    600 W / 1200 W / 2400W (Continuous / Program / Peak), 100 hrs
    Bi-amp LF:
    800 W / 1600 W / 3200 W (Contiguous / Program / Peak), 2 hrs
    600 W / 1200 W / 2400 W (Contiguous / Program / Peak), 100 hr
    Bi-amp HF: 75 W / 150 W / 300 W (Continuous / Program / Peak), 2 hrs

  • Maximum SPL

    127 dB SPL continuous (133 dB SPL peak)

  • System Sensitivity (1w @ 1m)

    98 dB SPL

  • LF Driver

    1 x JBL 2265H 380 mm (15 in) Differential Drive woofer 8 Ohms

  • HF Driver

    1 x JBL 2452H, 100 mm (4.0 inch) diameter voice coil, 38 mm (1.5 inch) exit, neodymium magnet compression driver 8 Ohms

  • Nominal Impedance

    8 Ohms

  • Enclosure

    Symmetrical stage monitor, 15/18 mm, plywood

  • Carrying option

    2x Integrated handle / input cup

  • Grille

    Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing

  • Input Connectors

    Neutrik Speak on NL-4 (x2), one on each end

  • Dimensions (H x W x D)

    629 mm x 432 mm x 324 mm (375 mm stage height) / 24.75 in x 17 in x 12.75 in (14.75" stage height)

  • Weight

    21 kg (46.0 lb)

2 Accessories for JBL VRX915M 15" 2-Way Stage Monitor with 3200W Peak Power Rating, 50x90Deg. Coverage

  • All Accessories (2)
  • Speaker Accessories (1)
  • Monitoring Accessories (1)

About JBL VRX915M

The JBL VRX915M is a dedicated, compact and lightweight 15" two way touring-class floor monitor, with a 375 mm (14.75 in) stage height and JBL's latest neodymium-magnet transducers. A 380 mm (15 in) 2265H patented Differential Drive woofer handles 800 watts (continuous) and delivers accurate and precise low frequency reproduction. The 2452H 102 mm (4 in) voice-coil compression driver is coupled to a 50Deg.x 90Deg. aluminum horn to provide smooth and clear high frequency reproduction, critical for high performance monitoring.

Bi-amp or full-range passive operation may be selected via a recessed, high-current switch mounted alongside the NL4 input connector in one of the handle cups. An additional NL4 connector is mounted in the other handle cup for a convenient loop-thru connection, minimizing cable runs on stage.

The enclosure is constructed of top quality Baltic birch plywood and is coated with JBL's rugged DuraFlex finish. It is a symmetrical 30Deg. wedge design, with four non-slip rubber feet per side enabling convenient left and right applications of adjacent monitors. The transducers are protected by an attractive 16 gauge CNC-machined steel grille. It is internally lined with acoustically transparent foam to provide additional transducer protection.

JBL VRX915M Features

  • Compact and low-profile for minimal obstruction of audience sightlines
  • 50Deg. x 90Deg. nominal coverage
  • Bi-amplified or full-range passive operation
  • Differential Drive woofer with neodymium magnet for high power capacity and very light weight
  • 4" (voice coil) diameter compression driver with neodymium magnet

Key Features

  • Compact and low-profile for minimal obstruction of audience sightlines
  • 50Deg. x 90Deg. nominal coverage
  • 50deg.x 90deg.nominal coverage
  • Bi-amplified or full-range passive operation
  • Differential Drive woofer with neodymium magnet
  • 4 (voice coil) diameter compression driver with neodymium magnet
