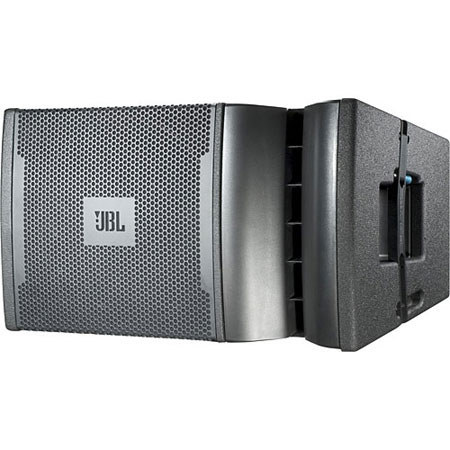

JBL VRX932LAP 12" Two-Way Powered Line Array Loudspeaker System with 1750W Peak Power, 100x15Deg. Nominal Coverage Pattern, Black

SKU: JBLVRX932LAP MFR: VRX932LAP
Earn VIP Reward Points

Key Features

  • Experience powerful sound with the JBL VRX932LAP, delivering 1750W peak power.
  • Achieve optimal coverage with the 100x15 degree nominal coverage pattern PA speaker.
  • Enjoy exceptional audio clarity with JBL's premium neodymium compression driver.
  • This durable PA speaker features a birch plywood enclosure for lasting performance.
  • Easily integrate into any setup with versatile pole mount or line-array options.
  • Get superior sound quality for live events with this active PA speaker system.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : Does VRX932LAP come with a Power Cable?

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JBL VRX932LAP Specifications

  • Frequency Range (-10 dB)

    57 Hz - 20 kHz

  • Frequency Response (+/-3 dB)

    75 Hz - 20 kHz

  • Coverage Pattern

    100Deg. x 15Deg. nominal

  • Maximum Peak Output

    136 dB SPL at 1m

  • LF Driver

    1 x JBL 2262FF 305 mm (12 in) dual voice coil Differential Drive woofer with neodymium-magnet

  • HF Driver

    3 x JBL 2408J, 38 mm (1.5 in) voice coil neodymium compression driver

  • Bandpass Nominal Impedance

    LF: 2 x 2 ohms
    HF: 4 ohms

  • DPC-2 Internal Amplification Output

    1750 Watts Peak, 875 Watts Continuous (at nominal load)

  • DPC-2 Output

    LF: 750 Watts, HF: 125 Watts (Continuous IEC shaped pink noise into rated load impedance)

  • DPC-2 Output Section

    LF: Dual-Bridged Technology, Class D
    HF: Bridged Class D

  • Audio Input Connector

    XLR with loop through

  • User Controls

    Input Attenuator (0-16 dB)
    ACS (Array Configuration Selector),
    HF level adjustment (+3 dB, 0 dB, -3dB)

  • Signal Processing

    DSP based, resident in Input Module

  • System Management

    DSP based limiters for mechanical and thermal protection

  • AC Power Operating Range

    90-132 VAC or 216-264 VAC, 50/60Hz

  • AC Line Voltage

    User selectable: 120V/240V (-15%, +10%)

  • AC Input Connector

    Neutrik PowerCon (NAC 3MPA)

  • AC Loop Through Connector

    Neutrik PowerCon (NAC 3MPB)

  • AC Current Requirements

    6A per system at 120V, 3A per system at 240V

  • Enclosure

    25/15 mm birch plywood

  • Suspension / Mounting

    Optional VRX-AF line-array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting

  • Grille

    Powder coated, black, 16-gauge perforated steel with acoustically transparent foam

  • Dimensions (H x W x D)

    349 mm x 597 mm x 444 mm (13.75 in x 23.5 in x 17.5 in)

  • Weight

    24 kg (52 lb)

  • UPC Code

    050036903493

10 Accessories for JBL VRX932LAP 12" Two-Way Powered Line Array Loudspeaker System with 1750W Peak Power, 100x15Deg. Nominal Coverage Pattern, Black

  • All Accessories (10)
  • Cables & Adapters (5)
  • Stands (5)

About JBL VRX932LAP

Experience the epitome of acoustic precision with the JBL VRX932LAP 12" Two-Way Powered Line Array Loudspeaker System. This professional-grade loudspeaker delivers a powerful 1750W peak performance, ensuring that your live events and performances are imbued with high-quality, robust sound that captivates your audience.

Crafted for durability and versatility, the VRX932LAP is a compact and lightweight solution that doesn't compromise on sound coverage. Its 100x15Deg nominal coverage pattern is ideal for a wide range of venues, from intimate gatherings to expansive outdoor events, providing clear and consistent audio across a large area.

The system's innovative design features a Constant Curvature waveguide that seamlessly integrates three high-powered compression drivers into a continuous arc. When combined in an array of up to five units, these speakers function cohesively, creating an extended waveguide that behaves like a single, powerful driver. This synergy results in an enhanced acoustic output and superior power handling, far surpassing the capabilities of individual drivers.

The VRX932LAP's advanced "amplitude shading" technology allows for tailored sound coverage. With adjustable switches on the input plate, you can effortlessly direct sound to specific areas, such as reaching the distant balcony while moderating the volume at the front of the listening space. This customization not only improves the overall sound field but also significantly reduces feedback issues, ensuring a more enjoyable listening experience.

For added flexibility, one or two VRX932LAP units can be mounted on a tripod or positioned over subwoofers, making it an adaptable choice for various event types. The integrated rigging hardware ensures secure array locking, while the dual-angle pole socket offers precise aiming to suit your unique sound reinforcement needs.

When it comes to suspended configurations, up to five VRX932LAP speaker systems can be linked to achieve a comprehensive vertical coverage of up to 75Deg. For these applications, the JBL VRX-AF array frame or eye bolts (sold separately) are required to guarantee a safe and stable setup.

In summary, the JBL VRX932LAP 12" Two-Way Powered Line Array Loudspeaker System is the quintessential audio solution for professionals seeking a powerful, high-quality, and versatile loudspeaker system that excels in a multitude of live performance and event scenarios.

JBL VRX932LAP Features

  • Built-in JBL Drive pack DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality
  • JBL's exclusive neodymium magnet Differential Drive woofer for high-power capacity and light-weight
  • VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design
  • Constant Curvature waveguide for unprecedented array coherence
  • Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility
  • Array Configuration Selector permits "array shading"

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience powerful sound with the JBL VRX932LAP, delivering 1750W peak power.
  • Achieve optimal coverage with the 100x15 degree nominal coverage pattern PA speaker.
  • Enjoy exceptional audio clarity with JBL's premium neodymium compression driver.
  • This durable PA speaker features a birch plywood enclosure for lasting performance.
  • Easily integrate into any setup with versatile pole mount or line-array options.
  • Get superior sound quality for live events with this active PA speaker system.

What's in the box:

  • JBL VRX932LAP 12 " Two-Way Powered Line Array Loudspeaker System
  • Product Instructions
  • JBL 5 Year Limited Warranty
