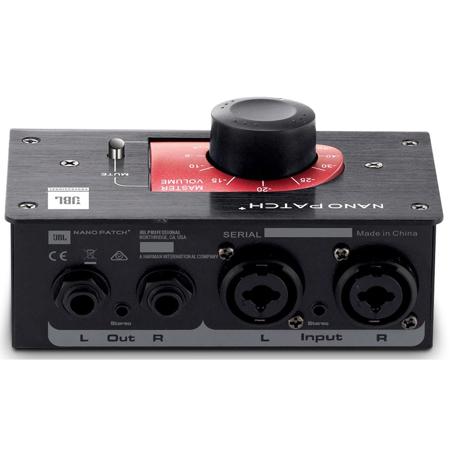

JBL Nano Patch+ Compact 2 Channel Passive Volume Controller

SKU: JBNPATCHBLK

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JBL Nano Patch+ Specifications

  • Audio Inputs

    2x Combination XLR/TRS 1/4" (6.5mm) balanced/unbalanced
    1x 1/8" (3.5mm) Mini Jack

  • Maximum Input Level

    +26dB

  • Input Impedance

    5KOhms

  • Audio Outputs

    2x TRS 1/4" (6.5mm) balanced/unbalanced
    1x 1/8" (3.5mm) Mini Jack

  • Max Output Level

    > +26dB

  • Output Impedance

    0-5KOhms

  • Frequency Response

    0/0.15dB (10Hz - 40KHz)

  • Signal-To-Noise

    Better than -120dB

  • Channel Cross Talk

    > -80dB

  • Distortion

    < 0.0004%

  • Dimensions (W x D x H)

    130 x 95 x 51mm / 5.12 x 3.74 x 2.01"

  • Weight

    0.8lbs / 0.36kg

  • UPC Code

    9333421723144

About JBL Nano Patch+

The Nano Patch+ really comes into its own when connected between your computer audio interface/soundcard master outputs and a pair of active (powered) monitor speakers. One of the benefits of passive volume attenuation is that you no longer have to control volumes with your software's master volume fader. Reducing levels from your software only reduces the audio bit depth. It is much more appropriate to keep your software masters at unity and attenuate the audio to your active monitors with a passive controller like the Nano Patch+.

• Super compact 2 channel analog passive volume control
• Rotary volume attenuation control
• Mute button
• Completely transparent operation
• No power required
• 2x combo inputs (balanced and unbalanced)
• 2x TRS outputs (balanced and unbalanced)
• 1x Mini jack I/O
• available in black and silver
• No signal conversion from unbalanced to balanced!

This way you can maintain maximum audio resolution and attenuate your monitoring volume with the confidence that the sonic integrity of your audio is not compromised. No active circuitry, buffers, transistors, batteries or power supply of any kind can interfere with the main passive output of the Nano Patch+. It simply delivers attenuated signal. Pure, simple transparent.
