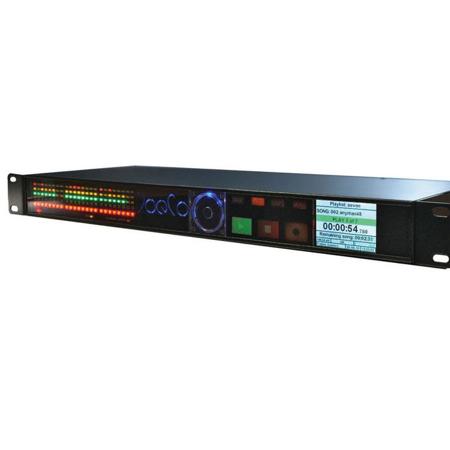

JoeCo BlackBox BBP1A Player with Lightpipe Digital I/O, Unbalanced

SKU: JCBBP1A MFR: BBP1-A
Earn VIP Reward Points

Key Features

  • Capture pristine audio with the BlackBox BBP1A Player's lightpipe digital I/O.
  • Enjoy versatile connectivity with unbalanced analogue I/O for seamless integration.
  • Utilize external USB storage for extensive recording capacity with this audio recorder.
  • Control playback via timecode, footswitch, or MIDI for flexible operation in any setup.
  • Experience reliable performance with auto fail-over to a secondary system for peace of mind.
  • Achieve superior sound quality with selectable audio clocks, ensuring perfect sync every time.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JoeCo BBP1A Specifications

  • Analogue I/O

    Unbalanced wired for inserts (switchable -10dBu /+4dBu)

  • Digital I/O

    Lightpipe

  • Headphones

    Mono or stereo solo or mixed output from internal mixer

  • Sample Rates

    44.1kHz: 24 Channel
    48kHz: 24 Channel
    88.2kHz: 12 Channel
    96kHz: 12 Channel

  • Unbalanced Analogue

    3x 25way D-sub adapted TASCAM analogue pin-out. (Hot = in, cold = out (In on Tip, Out on Ring of 1/4" TRS jack) for connection into insert points on console)

  • Balanced Analogue

    3x 25way D-sub TASCAM analogue format inputs
    3x 25way D-sub TASCAM analogue format outputs

  • AES/EBU

    3x 25way D-sub YAMAHA digital format

  • Lightpipe

    3x TOSLINK (Reduced track counts at higher sample rates - SMUX2)

  • Storage Medium

    External USB 2.0 storage device
    USB 2.0 drive
    Flash RAM drive (thumb drive) 32GB minimum, high performance
    SDHC card via USB 2.0 converter (Class 10 minimum)

  • Audio File Format

    Broadcast WAV files: Accepts mono, stereo and polywav files

  • Audio File Naming Convention

    sss-tt.songname-trackname.wav where:
    sss is the song number (001-999) [determines which tracks play together as a Song]
    -tt. is the track number (01-24) [determines which output each track is replayed through]
    songname is the (optional) song name [free text up to 32 characters]
    -trackname is the (optional) track name [free text up to 24 characters]
    .wav is the file extension [mandatory]

  • Playlist Format

    Simple XML file structure for easy playlist editing

  • Pre-load Time

    Typically <3 seconds

  • Control

    Instant replay controlled by:
    Timecode (LTC or MTC)
    Footswitch
    QWERTY keyboard
    MIDI control
    Real-time clock
    Automatic pre-load of next song in playlist

  • MIDI Controls

    MIDI open loop connection
    MIDI Start, Stop commands
    MIDI Song Select: for preloading specific Songs
    MIDI Program Change
    MIDI Show Control

  • Audio Clocks

    Selectable between:
    Internal
    AES/EBU or SPDIF clock
    MADI in
    Dante in
    Word clock

  • Timecode / GPI

    1/4" TRS jack tip = unbal TC, Ring = GPI, sleeve = GND. All standard frame rates supported

  • Auto Fail-over

    Analogue fail-over automatically switches to synchronous secondary system in case of replay problem (Balanced Player pairs). Uses 1 channel of playback

  • Power

    DC input: 9-12VDC (PSU supplied)
    Power: <25W

  • Rack Height

    1U 19"

  • Dimensions

    435 x 44 x 170mm / 17.13 x 1.73 x 6.69"

  • Weight

    2.5kg / 5.51lbs

About JoeCo BBP1A

While the BlackBox BBP1A Player with Lightpipe Digital I/O, Unbalanced is a potent software upgrade for the BlackBox Recorder, it offers much more than just an upgrade. This advanced player delivers automated, high-quality, multichannel audio playback (up to 24bit/96kHz) for live shows and themed entertainment, eliminating the need for a computer.

Designed to enhance 24 and 64-channel BlackBox systems, the BBP1A Player offers a unique functionality that sets it apart from standard BlackBox Recorder playback. It allows the arrangement of content for an entire show, exhibition, or broadcast into a user-friendly, editable playlist. With cues preloaded for immediate playback, the playlist can be adjusted in real time should the running order change.

The BBP1A Player supports continuous playback through its looping feature. It accepts playback material created using any workstation that generates valid WAV or BWAV files, including mono, stereo, and polywav files. Audio is conveniently stored on an external USB 2.0 hard drive or USB 2.0 Flash drive.

The BBP1A Player employs a straightforward file naming procedure to ensure sample accurate synchronous playback of each audio file through its respective output. The show set list is configured as a simple XML format playlist, with each song automatically pre-loading. Manual changes can also be made, and multiple playlists can be stored for different shows or performances.

This versatile player can be operated and controlled via footswitch, QWERTY keyboard, timecode, MIDI commands, or JoeCoRemote for iPad. Each channel can be separately balanced, EQd, and processed alongside other live audio to compensate for venue acoustics or audience-generated noise during performances.

The BBP1A Player also supports the creation of foldback mixes incorporating Player audio, and an additional mix can be sent via the Player's headphone output. To synchronize audio with visual media, the Player can be configured to start in sync with incoming timecode and audio clock, supporting all standard timecode frame rates.

Like all BlackBox systems, the BBP1A Player is equipped with a number of built-in safety features. For instance, a pair of Balanced Players can be configured for automated fail-over, ensuring the show continues without interruption.

The BlackBox BBP1A Player system includes full BlackBox Recorder functionality. A simple menu selection transforms the system into either a Recorder or a Player as needed. Player software is also available as a separate upgrade for existing BlackBox Recorder owners.

This player is designed for use with mixing consoles that support Lightpipe (TOSLINK). Unbalanced analogue I/O functionality is also available for situations where the Lightpipe interface is not suitable, making the BlackBox BBP1A Player a versatile and reliable choice for all your audio playback needs.

JoeCo BBP1A Features

  • Synchronous multi-channel playback in up to 24bit / 96kHz quality. No computer required
  • Files for playback can be loaded from any Digital Audio Workstation capable of creating valid WAV/BWAV files, or recorded directly
  • Audio can be stored on USB 2.0 hard drive or fast Flash drive
  • Simple naming convention ensures that the correct file is replayed through each output
  • Set lists configured as simple XML format playlist files
  • Remote control via QWERTY keyboard, footswitch, MIDI, SONY 9-pin and JoeCoRemote for iPad
  • Synchronous playback to SMPTE timecode (LTC and MTC)
  • Multiple playlists can be stored for quick changes or alternative show formats
  • Separate foldback mixes can be configured via the console. An additional mix can be sent via the headphone output (e.g. for the musical director)
  • Can be configured to accept an incoming source of digital clock
  • Built-in safety features including automated fail-over for Balanced Player pairs

Key Features

  • Capture pristine audio with the BlackBox BBP1A Player's lightpipe digital I/O.
  • Enjoy versatile connectivity with unbalanced analogue I/O for seamless integration.
  • Utilize external USB storage for extensive recording capacity with this audio recorder.
  • Control playback via timecode, footswitch, or MIDI for flexible operation in any setup.
  • Experience reliable performance with auto fail-over to a secondary system for peace of mind.
  • Achieve superior sound quality with selectable audio clocks, ensuring perfect sync every time.

What's in the box:

  • JoeCo BlackBox BBP1A Player
  • Power Supply
  • User Manual
  • Quick Start Guide
  • JoeCo 1 Year Warranty
