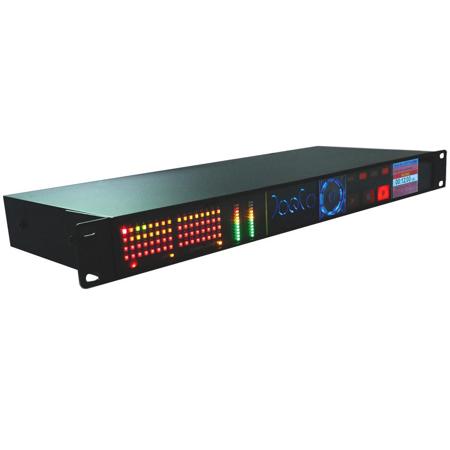

JoeCo BlackBox BBP64 64-Channel Player, Coaxial and Optical I/O, 24-bit/96kHz Audio Quality

SKU: JCBBP64MADI MFR: BBP64-MADI
Earn VIP Reward Points

Key Features

  • Capture pristine audio quality with the BlackBox BBP64, offering 24-bit/96kHz resolution.
  • Seamlessly integrate with your studio using MADI I/O for digital multitrack recording.
  • Utilize the BBP64 for live event playback, triggered by timecode, MIDI, or footswitch.
  • Enjoy flexible storage options via external USB drives or SDHC cards for audio files.
  • Effortlessly manage playlists with simple XML files, ensuring smooth show control.
  • Ensure continuous playback with auto fail-over, switching to a secondary system instantly.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JoeCo BBP64 Specifications

  • Headphones

    Mono or stereo solo or mixed output from internal mixer

  • Analogue In

    8-channel balanced (switchable -10dBu /+4dBu)

  • Digital Out

    MADI

  • Digital In

    MADI

  • Sample Rates

    44.1kHz: 64 Channel
    48kHz: 64 Channel
    88.2kHz: 32 Channel
    96kHz: 32 Channel

  • Unbalanced Analogue

    3x 25way D-sub adapted TASCAM analogue pin-out. (Hot = in, cold = out (In on Tip, Out on Ring of " TRS jack) for connection into insert points on console)

  • Balanced Analogue

    3x 25way D-sub TASCAM analogue format inputs
    3x 25way D-sub TASCAM analogue format outputs

  • AES/EBU

    3x 25way D-sub YAMAHA digital format (TASCAM format to special order)

  • Lightpipe

    3x TOSLINK (Reduced track counts at higher sample rates SMUX2)

  • MADI

    MADI in & out (SC optical & BNC (Coax)), 1 x 8ch balanced analogue in (TASCAM analogue format). (Reduced track counts at higher sample rates)

  • Storage Medium

    External USB 2.0 storage device
    USB 2.0 drive
    Flash RAM drive (thumb drive) 32GB minimum, high performance)
    SDHC card via USB 2.0 converter (Class 10 minimum)

  • Audio File Format

    Broadcast WAV files: Accepts mono, stereo and polywav files

  • Audio File Naming Convention

    sss-tt.songname-trackname.wav where:
    sss is the song number (001-999) [determines which tracks play together as a Song] -tt. Is the track number (01-24) [determines which output each track is replayed through] songname is the (optional) song name [free text up to 32 characters] -trackname is the (optional) track name [free text up to 24 characters] .wav is the file extension [mandatory]

  • Playlist Format

    Simple XML file structure for easy playlist editing

  • Pre-load Time

    Typically <3 seconds

  • Control

    Instant replay controlled by:
    Time code (LTC or MTC), Footswitch (GPI), QWERTY keyboard, MIDI control, Real-time clock, JoeCoRemote for iPad
    Automatic pre-load of next song in playlist

  • MIDI Controls

    MIDI open loop connection
    MIDI Start, Stop commands
    MIDI Song Select: for preloading specific Songs
    MIDI Program Change
    MIDI Show Control

  • Audio Clocks

    Selectable between:
    Internal
    AES/EBU or SPDIF clock
    MADI in

  • Timecode / GPI

    1/4" TRS jack tip = unbal TC, Ring = GPI, sleeve = GND. All standard frame rates supported

  • Auto Fail-over

    Analogue fail-over automatically switches to synchronous secondary system in case of replay problem (Balanced Player pairs). Uses 1 channel of playback

  • DC Input

    9-12VDC (PSU supplied)

  • Power

    <25 W

  • Rack Height

    1U 19"

  • Dimensions

    435 x 44 x 170mm / 17.13 x 1.73 x 6.69"

  • Weight

    2.5kg / 5.51lbs

About JoeCo BBP64

After a comprehensive upgrade, the BlackBox BBP64 64-Channel Player now offers an automated, high-quality, multichannel audio playback system, capable of delivering up to 24bit/96kHz audio quality. This advanced player is designed for live shows, themed entertainment, exhibitions, and broadcasts, eliminating the need for a computer.

The BlackBox BBP64 Player, available for both 24 and 64-channel BlackBox systems, stands out from the standard BlackBox Recorder with its unique ability to arrange an entire show's content into an easily editable playlist. This feature allows for instant playback of preloaded cues and offers the flexibility to adjust the playlist on the fly, even during a live show.

The BlackBox BBP64 Player supports a wide range of audio file formats, including WAV, BWAV, mono, stereo, and polywav files. Audio content can be stored on an external USB 2.0 hard drive or USB 2.0 Flash drive, ensuring seamless and uninterrupted playback.

The BlackBox BBP64 Player's user-friendly interface allows for sample-accurate synchronous playback of each audio file through its respective output. The show set list can be configured as a simple XML format playlist, with each song automatically pre-loading. Manual changes can also be made, and multiple playlists can be stored for different shows or performances.

The BlackBox BBP64 Player offers a variety of control options, including footswitch, QWERTY keyboard, timecode, MIDI commands, or the JoeCoRemote for iPad. Each channel can be separately balanced, EQd, and processed alongside other live audio to compensate for venue acoustics or audience-generated noise during performances.

For enhanced synchronization with visual media, the Player can be configured to start in sync with incoming timecode and audio clock, supporting all standard timecode frame rates.

The BlackBox BBP64 Player is equipped with built-in safety features, such as the ability to configure a pair of Balanced Players for automated fail-over, ensuring the show goes on, no matter what.

This versatile system includes full BlackBox Recorder functionality. A simple menu selection transforms the system into either a Recorder or a Player as required. The Player software is also available as a separate upgrade for existing BlackBox Recorder owners, making it a flexible and cost-effective solution for all your audio playback needs.

JoeCo BBP64 Features

  • Synchronous multi-channel playback in up to 24bit / 96kHz quality. No computer required
  • Files for playback can be loaded from any Digital Audio Workstation capable of creating valid WAV/BWAV files, or recorded directly
  • Audio can be stored on USB 2.0 hard drive or fast Flash drive
  • Simple naming convention ensures that the correct file is replayed through each output
  • Set lists configured as simple XML format playlist files
  • Remote control via QWERTY keyboard, footswitch, MIDI, SONY 9-pin and JoeCoRemote for iPad
  • Synchronous playback to SMPTE timecode (LTC and MTC)
  • Multiple playlists can be stored for quick changes or alternative show formats
  • Separate foldback mixes can be configured via the console. An additional mix can be sent via the headphone output (e.g. for the musical director)
  • Can be configured to accept an incoming source of digital clock
  • Built-in safety features including automated fail-over for Balanced Player pairs

Key Features

  • Capture pristine audio quality with the BlackBox BBP64, offering 24-bit/96kHz resolution.
  • Seamlessly integrate with your studio using MADI I/O for digital multitrack recording.
  • Utilize the BBP64 for live event playback, triggered by timecode, MIDI, or footswitch.
  • Enjoy flexible storage options via external USB drives or SDHC cards for audio files.
  • Effortlessly manage playlists with simple XML files, ensuring smooth show control.
  • Ensure continuous playback with auto fail-over, switching to a secondary system instantly.

What's in the box:

  • JoeCo BlackBox BBP64 64-Channel Player
  • JoeCo 1 Year Parts and Labor Limited Warranty
