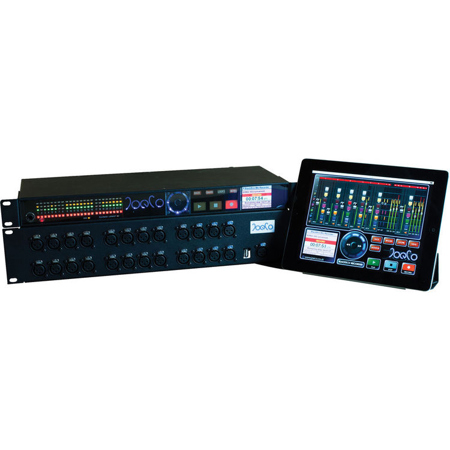

JoeCo BlackBox BBR1MP Bundle 1, Includes BBR1MP Multi-Channel Audio Recorder, MADI Card Option, Dante Card Option, Breakout Box Option and Remote Interface

SKU: JCBBR1MPBND1 MFR: BBR1MP-BUNDLE1
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this multi-channel audio recorder, perfect for live sound and studio recording.
  • Seamlessly integrate with your setup using the MADI and Dante card options for flexible audio routing.
  • Achieve superior sound quality with low-latency performance, essential for critical recording sessions.
  • Control your recordings remotely via iPad app, offering convenient access to key functions and settings.
  • Expand your I/O capabilities with the included breakout box, featuring XLR connectors for versatile use.
  • Ensure stable performance with robust drivers, providing reliable operation for professional audio workflows.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JoeCo BlackBox BBR1MP Bundle 1 Specifications

  • Sample Rates

    44.1kHz, 48kHz, 88.2kHz, 96kHz

  • Bit Depth

    16 / 24bit

  • Disk Interface

    USB2 (compatible with USB3)

  • Disk Format

    FAT32 - compatible with both Mac and PC

  • File Format

    Broadcast WAV (BWAV)

  • External Drive

    USB2/3 hard drive or fast memory stick

  • File Type

    Standard mono Broadcast WAV or multi-channel WAV

  • User Interface

    Primarily designed for use with the JoeCoRemote iPad app,

  • Record/Playback

    Up to 24 channels at up to 96kHz / 24 bit

  • Inputs

    Switchable microphone / line inputs on channel by channel basis

  • Mic Preamps

    Gain: 0 - +60dB continuously variable;

  • Soft Limiter

    Software selectable on/off

  • Hi-pass Filter

    -6dB at 100Hz, 12dB/octave

  • Max input Level

    +21dBu

  • EIN

    <-124dBu (20-22kHz)

  • THD

    <-110dBFS (20-22kHz at -10dBFS input)

  • Cross Talk Rejection

    > 80dB at 20kHz

  • ZIN

    >10kOhm (single ended)
    > 2kOhm (differential)

  • Output

    Line level balanced outputs (+21dBu = 0dBFS)

  • E-E THD+N E-E

    Better than -90 dBFS (unity gain, 20 - 22kHz, unweighted)

  • Frequency Response

    Better than +/- 0.5dB, 20-40kHz at 96kHz sampling

  • Monitoring

    Front-mounted 1/4" TRS jack socket: headphone mix, PFL, solo etc
    Rear-mounted 1/4" jack socket for headphone mix only

  • Audio Clock Synchronization

    Word clock, Video reference and SMPTE linear timecode
    (All std frame rates supported), AES/EBU or SPDIF clock

  • Control

    JoeCoRemote for full control; Sony 9-pin and MIDI (MMC) for transport controls

  • Physical

    19" rack-mounted 1U (435 x 44 x 170mm / 17.13 x 1.73 x 6.69") - >3kg
    Optional 19" rack-mounted 2U breakout panel (XLR) (475 x 88 x 35mm / 18.70 x 3.46 x 1.38") 1kg

  • Power

    12V dc (Kycon 4-pole connector), 35W max. External universal PSU included.

  • Remote Control

    Requirements: iPad capable of running iOS 6.0 or higher
    4.3MB free space on iPad
    JoeCoRemote app (free download via iTunes)
    JoeCoRemote Hardware Interface (cables supplied)
    BlackBox Recorder/Player with software version 2.3.x or later
    USB2 hard drive or Fast Flash drive (FAT32 formatted)
    Wi-Fi or wired connection

  • Dimensions

    Breakout Box: 19.0 x 3.5 x 1.4" / 482.60 x 88.90 x 35.56mm

  • Weight

    Breakout Box: 2.2lbs / 1.00kg (not including Looms)

About JoeCo BlackBox BBR1MP Bundle 1

Based on JoeCo's award-winning BlackBox Recorder technology, the new BlackBox BBR1MP Recorder is a stand-alone, live, multi-channel audio acquisition solution primarily designed with the broadcast engineer and location sound recordist in mind.

The 24-channel recorder offers all the standard BlackBox features as well as 24 high-quality microphone preamps, operating at up to 24bit/96kHz, which are integrated into the recorder's tiny 1U housing. The BBR1MP features a range of connection options including individually switchable mic/line inputs and balanced outputs, video sync, timecode and word clock inputs. User installable Dante and MADI interface cards are also available as options, adding 24 channels of Dante or MADI i/o to the BBR1MP unit. Microphones can either be connected to the unit via tails from the rear D-Sub connectors or via an optional 2U breakout panel with XLR connectors. System components are available individually or as part of a bundle.

Audio is recorded direct to external USB2 drive in Broadcast WAV format for instant ingest into post production. Alongside the BBR1MP's multi-channel recording capabilities, provision is included for creating a simultaneous stereo mixdown. Full support for iXML data is also provided.

The BBR1MP will run off a 12V power source. Unused channels and features can be disabled in order to preserve battery life on location. The unit is fully controllable via JoeCoRemote for iPad. This includes the facility to set up individual mic pre channel parameters - level, mic/line, phantom power, hi-pass filter, soft limiter and phase reverse. Levels are shown on high resolution meters and the monitor mix can be adjusted using expandable channel strips with graphic faders, pan, solo, mute and other parameter controls. The BBR1MP's compact dimensions, high-quality mic preamps and converters make it a practical, elegant solution for a range of broadcast applications, as well as for live engineers needing a portable multi-channel recording option.

JoeCo BlackBox BBR1MP Bundle 1 Features

  • 24-channel record or playback at up to 24bit/96kHz
  • 24 high-quality integrated mic preamps (24bit/96kHz operation)

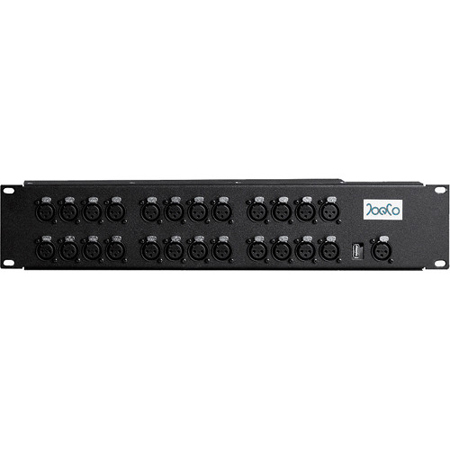

  • Microphone connection via tails from DSub connectors, or optional 2U breakout panel with XLR connectors
  • Runs off 12V power source for location use
  • Remote set-up, control and monitoring via JoeCoRemote for iPad
  • Multiple connection options: switchable mic/line inputs, balanced outputs
  • User installable optional Dante or MADI cards for 24 channels of Dante or MADI i/o
  • MADI outputs from a pair of BBR1MPs can be automatically combined into a single 48-channel data stream
  • Records standard broadcast WAV files to an external USB2/3 drive. Captured audio material can be imported into any digital workstation for instant re-purposing. No file transfer necessary
  • Can also store iXML data in BWAV files
  • Synchronization options: timecode, word clock, video sync
  • Simultaneous stereo mixdown during recording
  • Safe'n'Sound Record Recovery protects files in case of power failure

Key Features

  • Capture pristine audio with this multi-channel audio recorder, perfect for live sound and studio recording.
  • Seamlessly integrate with your setup using the MADI and Dante card options for flexible audio routing.
  • Achieve superior sound quality with low-latency performance, essential for critical recording sessions.
  • Control your recordings remotely via iPad app, offering convenient access to key functions and settings.
  • Expand your I/O capabilities with the included breakout box, featuring XLR connectors for versatile use.
  • Ensure stable performance with robust drivers, providing reliable operation for professional audio workflows.

What's in the box:

  • JoeCo BBR1MP Multi-Channel Audio Recorder
  • BBR1MP-MAD MADI Card Option
  • BBR1MP-DAN Dante Card Option
  • BBR1MP-BOB Breakout Box Option
  • BBR-REMOTE Remote Interface
  • 3x 3' 8-Channel 25-Way D-Sub Connecting Loom
  • JoeCo 1 Year Parts and Labor Limited Warranty
