44.1kHz, 48kHz, 88.2kHz, 96kHz
16 / 24bit
USB2 (compatible with USB3)
FAT32 - compatible with both Mac and PC
Broadcast WAV (BWAV)
USB2/3 hard drive or fast memory stick
Standard mono Broadcast WAV or multi-channel WAV
Primarily designed for use with the JoeCoRemote iPad app,
Up to 24 channels at up to 96kHz / 24 bit
Switchable microphone / line inputs on channel by channel basis
Gain: 0 - +60dB continuously variable
Software selectable on/off
-6dB at 100Hz, 12dB/octave
+21dBu
<-124dBu (20-22kHz)
<-110dBFS (20-22kHz at -10dBFS input)
> 80dB at 20kHz
>10kOhm (single ended)
> 2kOhm (differential)
Line level balanced outputs (+21dBu = 0dBFS)
Better than -90 dBFS (unity gain, 20 - 22kHz, unweighted)
Better than +/- 0.5dB, 20-40kHz at 96kHz sampling
Front-mounted 1/4" TRS jack socket: headphone mix, PFL, solo etc
Rear-mounted 1/4" jack socket for headphone mix only
Word clock, Video reference and SMPTE linear timecode
(All std frame rates supported), AES/EBU or SPDIF clock
Remote for full control
Sony 9-pin and MIDI (MMC) for transport controls
19" rack-mounted 1U (435 x 44 x 170mm / 17.13 x 1.73 x 6.69") - >3kg
Optional 19" rack-mounted 2U breakout panel (XLR) (475 x 88 x 35mm / 18.70 x 3.46 x 1.38") 1kg
12V dc (Kycon 4-pole connector), 35W max. External universal PSU included.
24 XLR/3 Female
USB
Requirements: iPad capable of running iOS 6.0 or higher
4.3MB free space on iPad
JoeCoRemote app (free download via iTunes)
JoeCoRemote Hardware Interface (cables supplied)
BlackBox Recorder/Player with software version 2.3.x or later
USB2 hard drive or Fast Flash drive (FAT32 formatted)
Wi-Fi or wired connection
19", 2 Rack-Unit height
Breakout Recorder: 19.0 x 3.5 x 1.4" / 482.60 x 88.90 x 35.56mm
Breakout Recorder: 2.2lbs / 1.00kg (not including Looms)
Become a master of audio recording with the sophisticated BlackBox BBR1MP Bundle 2, a comprehensive audio acquisition solution designed with the professional broadcast engineer and location sound recordist in mind. This advanced bundle includes the BBR1MP Multi-Channel Audio Recorder, MADI Card Option, Dante Card Option, Breakout Box Option, and Remote Interface, all from the reputable brand, Adorama.
Built on the award-winning technology of JoeCo's BlackBox Recorder, the BBR1MP Recorder is a standalone, live, multi-channel audio recorder that offers 24 channels of high-quality microphone preamps, operating at up to 24bit/96kHz, all integrated into a compact 1U housing.
The BBR1MP Recorder is equipped with a variety of connection options, including individually switchable mic/line inputs and balanced outputs, video sync, timecode, and word clock inputs. The user-installable Dante and MADI interface cards add an additional 24 channels of Dante or MADI i/o to the BBR1MP unit, providing a versatile and comprehensive solution for all your audio recording needs.

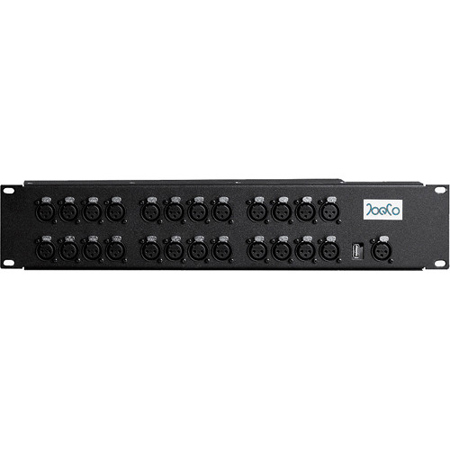

Microphones can be connected to the unit via tails from the rear D-Sub connectors or through an optional 2U breakout panel with XLR connectors. The system components are available individually or as part of this innovative bundle.
Audio is recorded directly to an external USB2 drive in Broadcast WAV format, allowing for instant ingest into post-production. The BBR1MP's multi-channel recording capabilities are complemented by a provision for creating a simultaneous stereo mixdown, and full support for iXML data is also provided.
The BBR1MP operates off a 12V power source, and unused channels and features can be disabled to preserve battery life on location. The unit is fully controllable via JoeCoRemote for iPad, allowing you to set up individual mic pre channel parameters such as level, mic/line, phantom power, hi-pass filter, soft limiter, and phase reverse.
With high-resolution meters and expandable channel strips with graphic faders, pan, solo, mute, and other parameter controls, the BBR1MP offers a high-quality, professional, and portable multi-channel recording solution. Its compact dimensions and superior mic preamps and converters make it an elegant solution for a range of broadcast applications and live engineers.
